COGIS - WELL SCOUT CARD

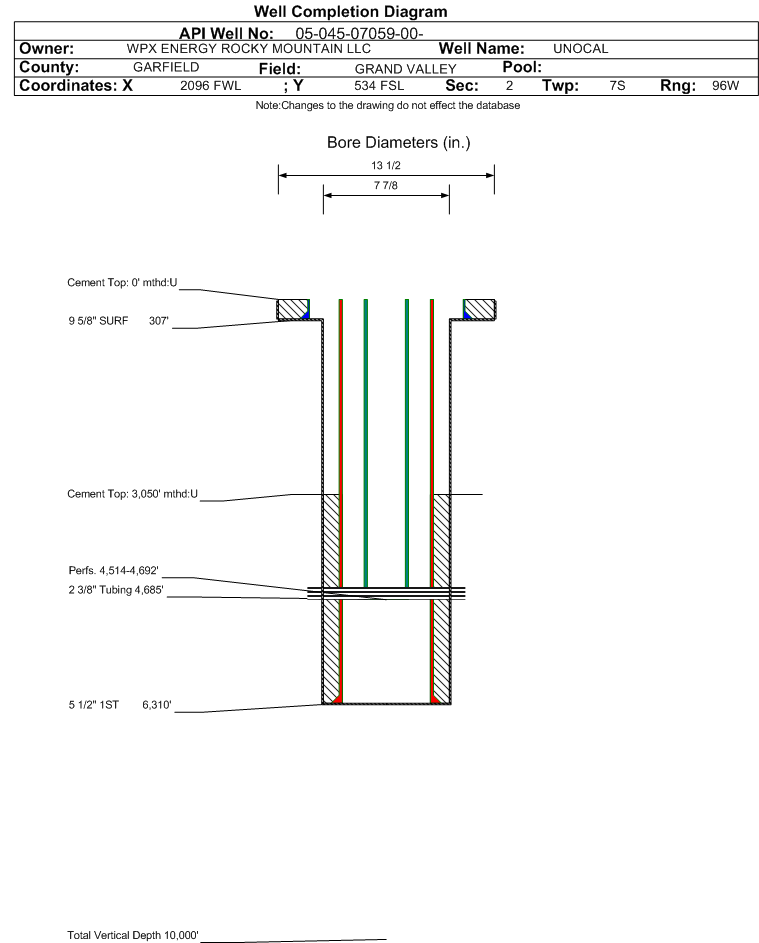

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-07059		Well Classification: GW Status: PR - 11/10/1998
Well Name/No:UNOCAL #GM 24-2
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date11/10/1998
FacilityID:211300LocationID:334869
County:GARFIELD #045Location:SESW 2 7S96W 6
Field:GRAND VALLEY - #31290Elevation:5334 ft.
Basin:PICEANCE BASIN
Planned Location:534FSL  2096 FWLLat/Long: 39.460579 / -108.079445Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.461021 / -108.078967Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 11/10/1998             Measured TD: 6315 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 11/10/1998
Wellbore Permit
Permit #:980947 Expiration Date:10/22/1999
Proposed Depth/Form:
Surface Mineral Owner Same:Not available
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 510-3 , Unit Acreage: 40, Drill Unit: SESW
Wellbore Completed
Completion Date:8/26/2002
Spud Date:11/5/1998Spud Date Is:ACTUAL
Measured TD:6315 ft.Measured PB depth:6222 ft.
True Vertical TD:True Vertical PB depth:
Top PZ Location:Sec:2 Twp: 7S 96WFootage: 534 FSL  2096 FWL
Bottom Hole Location:Sec: Twp: Footage:  FL   FL
Log Types:DIL - GR - SP NEUTRON DENSITY
Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 307 ft., Weight: 36 , Citings Type: ACTUAL
Cement:Sacks: 175, Top: , Bottom: 307 ft., Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 6310 ft., Weight: 17 , Citings Type: ACTUAL
Cement:Sacks: 820, Top: 3050 ft., Bottom: 6310 ft., Determination Method:
FormationInterval TopLog BottomCoredDSTs
WASATCH G1405 ft.NN
FORT UNION1788 ft.NN
MESAVERDE3180 ft.NN
CAMEO COAL5655 ft.NN
ROLLINS6150 ft.NN

Formation WMFK                     Formation Classification:  GW                     Status:  CM - 11/10/1998                Interval Top: 4514 ft.    Interval Bottom: 4692 ft.

 Completed Information for Formation WILLIAMS FORK
1st Production Date:N/AChoke Size:0.750 in.
Formation Name:WILLIAMS FORKCommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:8/26/2002
Treatment Summary:1000 GALS 7.5% HCL; 152,900 # 20/40 SAND & 3388 BBLS SLICK WATER
Tubing Size:2.375 in.Tubing Setting Depth:4685 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:8/27/2002Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 0
BBLS_OIL 0
CALC_BBLS_OIL 0
CALC_MCF_GAS 161
CASING_PRESS 363
MCF_GAS 161
TUBING_PRESS 257
Perforation Data:
Interval Top:4514 ft.# Of Holes:16
Interval Bottom:4692 ft.Hole Size:

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 3/24/1999

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:2/3/1999Choke Size:
Formation Name:WILLIAMS FORK - CAMEOCommingled:
Production Method:
Open Hole Completion:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation WFCM.
No Perforation Data was found for formation WFCM.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)12
Total Gas Produced (MCF)7616
GOR634666
GOR DeterminationMCFE
Average BOE per Day3.637
Average MCFE per Day21.073

 Federal Financial Assurance  i

 Tribal Well  i No
