COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-07058		Well Classification: GW Status: PR - 11/10/1997
Well Name/No:UNOCAL #GM 21-2
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:12501
Facility Status:PRStatus Date11/10/1997
FacilityID:211299LocationID:311584
County:GARFIELD #045Location:NENW 2 7S96W 6
Field:GRAND VALLEY - #31290Elevation:5256 ft.
Basin:PICEANCE BASIN
Planned Location:851FNL  1841 FWLLat/Long: 39.470889 / -108.078975Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.471014 / -108.078689Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 11/10/1997             Measured TD: 6525 ft.    Vertical TD: 0 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 11/10/1997
Wellbore Permit
Permit #:960193 Expiration Date:3/10/1997
Proposed Depth/Form:
Surface Mineral Owner Same:Not available
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: WFCM , Formation: WILLIAMS FORK - CAMEO , Order: 510 , Unit Acreage: 160, Drill Unit: NW4
Wellbore Completed
Completion Date:12/11/1996
Measured TD:6525 ft.Measured PB depth:6492 ft.
True Vertical TD:0 ft.True Vertical PB depth:

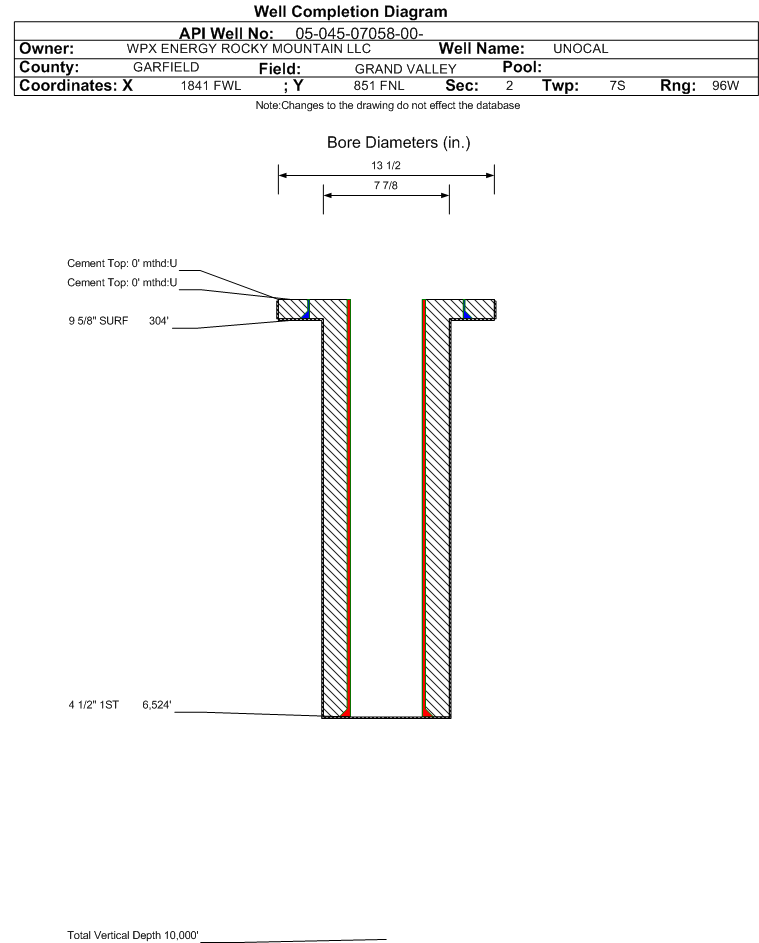

Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 304 ft., Weight: , Citings Type: HISTORICAL
Cement:Sacks: 120, Top: 0 ft., Bottom: , Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 6524 ft., Weight: , Citings Type: HISTORICAL
Cement:Sacks: 0, Top: 0 ft., Bottom: , Determination Method:
FormationInterval TopLog BottomCoredDSTs
FORT UNION1843 ft.
MESAVERDE3277 ft.
CAMEO COAL5890 ft.
ROLLINS6316 ft.

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 11/10/1997

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:12/11/1996Choke Size:
Formation Name:WILLIAMS FORK - CAMEOCommingled:
Production Method:
Open Hole Completion:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation WFCM.
No Perforation Data was found for formation WFCM.

Formation WMFK                     Formation Classification:  GW                     Status:  CM - 11/10/1997

 Completed Information for Formation WILLIAMS FORK
1st Production Date:N/AChoke Size:1,464.000 in.
Formation Name:WILLIAMS FORKCommingled:
Production Method:
Open Hole Completion:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation WMFK.
No Perforation Data was found for formation WMFK.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)12
Total Gas Produced (MCF)10332
GOR861000
GOR DeterminationMCFE
Average BOE per Day4.910
Average MCFE per Day28.508

 Federal Financial Assurance  i

 Tribal Well  i No
