COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-07037		Well Classification: GW Status: PR - 11/11/1995
Well Name/No:DOE #PW-3-20
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:13197
Facility Status:PRStatus Date11/11/1995
FacilityID:211278LocationID:335242
County:GARFIELD #045Location:SWSE 20 6S95W 6
Field:PARACHUTE - #67350Elevation:6253 ft.
Basin:PICEANCE BASIN
Planned Location:509FSL  1702 FELLat/Long: 39.503889 / -108.019204Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.503853 / -108.019167Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 11/11/1995             Measured TD: 3878 ft.    Vertical TD: 2965 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 11/11/1995
Wellbore PermitDIRECTIONAL
Permit #:950876 Expiration Date:4/29/1996
Proposed Depth/Form:
Surface Mineral Owner Same:Not available
Mineral Owner:FEDERALSurface Owner:Not available
Unit: Unit Number:NAVAL OIL SH
Formation And Spacing:Code: WSTC , Formation: WASATCH , Order: 0 , Unit Acreage: 160, Drill Unit: SE4
Wellbore Completed
Completion Date:11/11/1995
Spud Date:8/27/1995Spud Date Is:ACTUAL
Measured TD:3878 ft.Measured PB depth:3811 ft.
True Vertical TD:2965 ft.True Vertical PB depth:

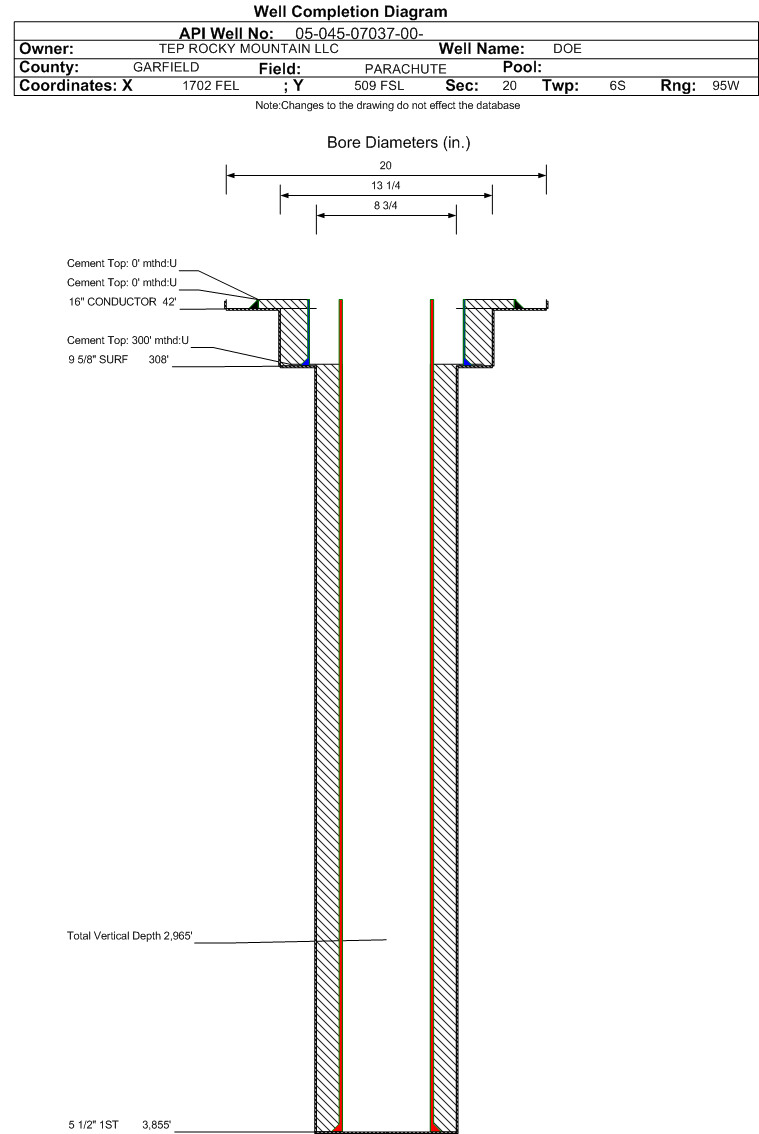

Casing:String Type: CONDUCTOR, Hole Size: , Size: 16 in., Top: 0 ft., Depth: 42 ft., Weight: 31.75 , Citings Type: ACTUAL
Cement:Sacks: , Top: 0 ft., Bottom: 42 ft., Determination Method: VIS
Casing:String Type: SURF, Hole Size: 13.25 in., Size: 9.625 in., Top: 0 ft., Depth: 308 ft., Weight: 36 , Citings Type: ACTUAL
Cement:Sacks: 230, Top: 0 ft., Bottom: 308 ft., Determination Method: VIS
Casing:String Type: 1ST, Hole Size: 8.75 in., Size: 5.5 in., Top: 0 ft., Depth: 3855 ft., Weight: 17&23 , Citings Type: ACTUAL
Cement:Sacks: 1000, Top: 300 ft., Bottom: 3855 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WASATCH2972 ft.

Formation WSTC                     Formation Classification:  GW                     Status:  PR - 6/1/2012                  Interval Top: 2972 ft.

 Completed Information for Formation WASATCH
1st Production Date:N/AChoke Size:1,864.000 in.
Formation Name:WASATCHCommingled:
Production Method:
Open Hole Completion:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation WSTC.
No Perforation Data was found for formation WSTC.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)15
Total Gas Produced (MCF)13148
GOR876533
GOR DeterminationMCFE
Average BOE per Day6.248
Average MCFE per Day36.261

 Federal Financial Assurance  i Y

 Tribal Well  i No
