COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-07036		Well Classification: GW Status: PR - 12/1/2010
Well Name/No:DOE #PM-2-31
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:12571
Facility Status:PRStatus Date12/1/2010
FacilityID:211277LocationID:335171
County:GARFIELD #045Location:NENW 31 6S95W 6
Field:PARACHUTE - #67350Elevation:6115 ft.
Basin:PICEANCE BASIN
Planned Location:664FNL  1674 FWLLat/Long: 39.486389 / -108.042864Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.486684 / -108.042609Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 12/1/2010             Measured TD: 7722 ft.    Vertical TD: 0 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 12/1/2010
Wellbore Permit
Permit #:950875 Expiration Date:4/29/1996
Proposed Depth/Form:
Surface Mineral Owner Same:Not available
Mineral Owner:FEDERALSurface Owner:Not available
Unit: Unit Number:NAVAL OIL SH
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 440-16 , Unit Acreage: 320, Drill Unit: W2
Wellbore Completed
Completion Date:12/1/1995
Measured TD:7722 ft.Measured PB depth:7627 ft.
True Vertical TD:0 ft.True Vertical PB depth:

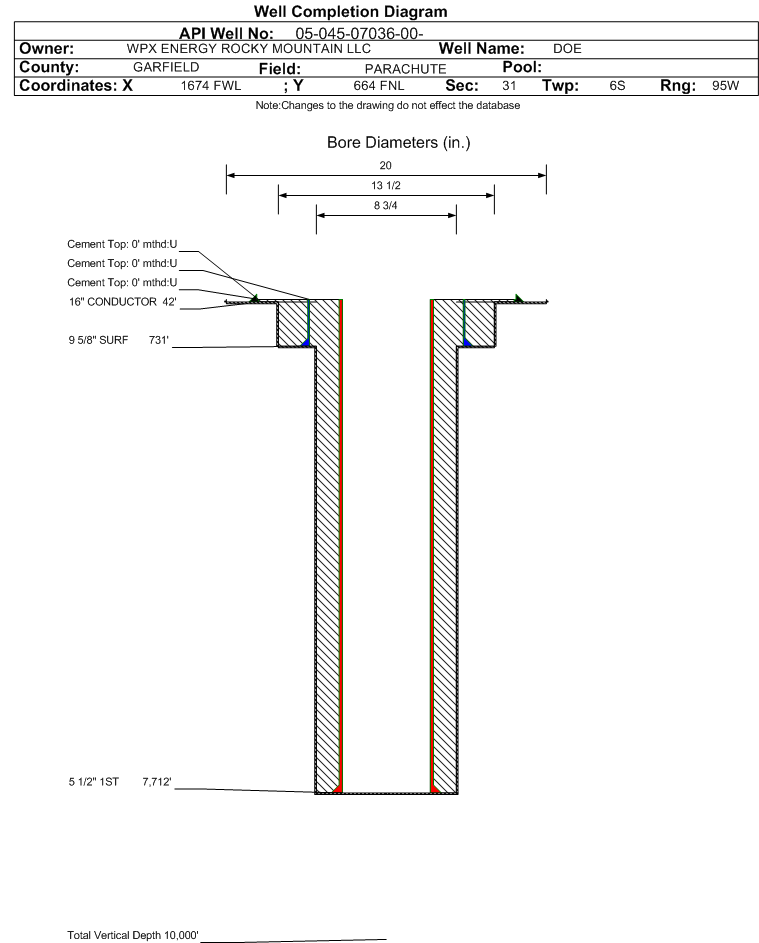

Casing:String Type: CONDUCTOR, Hole Size: , Size: 16 in., Top: 0 ft., Depth: 42 ft., Weight: , Citings Type: HISTORICAL
Cement:Sacks: 320, Top: 0 ft., Bottom: , Determination Method:
Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 731 ft., Weight: , Citings Type: HISTORICAL
Cement:Sacks: 0, Top: 0 ft., Bottom: , Determination Method:
Casing:String Type: 1ST, Hole Size: 8.75 in., Size: 5.5 in., Top: 0 ft., Depth: 7712 ft., Weight: , Citings Type: HISTORICAL
Cement:Sacks: 0, Top: 0 ft., Bottom: , Determination Method:
FormationInterval TopLog BottomCoredDSTs
WILLIAMS FORK4378 ft.
CAMEO COAL7143 ft.
ROLLINS7587 ft.

Formation WMFK                     Formation Classification:  GW                     Status:  PR - 12/1/2010                 Interval Top: 4378 ft.

 Completed Information for Formation WILLIAMS FORK
1st Production Date:12/6/1995Choke Size:2,864.000 in.
Formation Name:WILLIAMS FORKCommingled:
Production Method:
Open Hole Completion:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation WMFK.
No Perforation Data was found for formation WMFK.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)11
Total Gas Produced (MCF)8000
GOR727272
GOR DeterminationMCFE
Average BOE per Day3.805
Average MCFE per Day22.097

 Federal Financial Assurance  i Y

 Tribal Well  i No
