COGIS - WELL SCOUT CARD

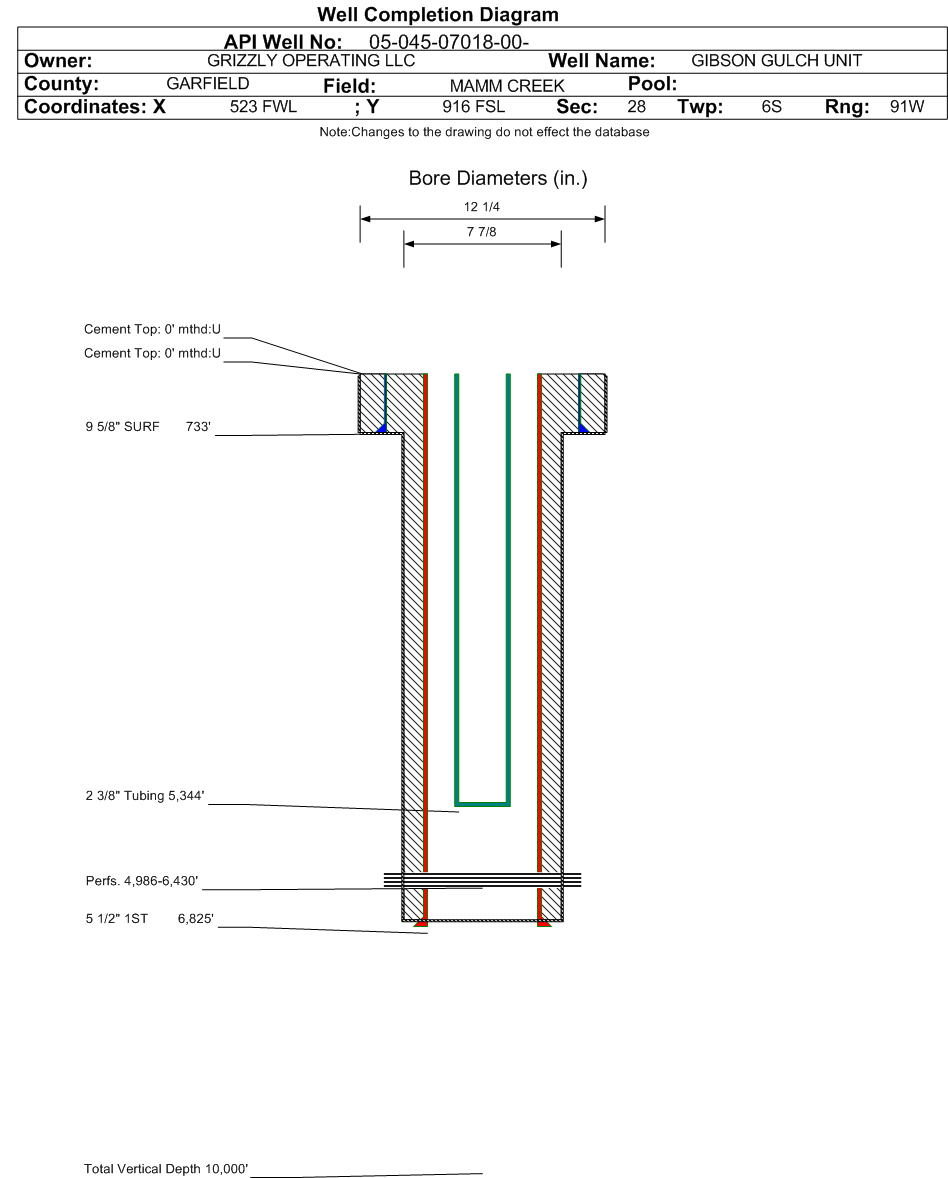

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITGIS Map GISOld GIS Map Old GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-07018		Well Classification: GW Status: PR - 4/27/2018
Well Name/No:GIBSON GULCH UNIT #13-28
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:13187
Facility Status:PRStatus Date4/27/2018
FacilityID:211259LocationID:335245
County:GARFIELD #045Location:SWSW 28 6S91W 6
Field:MAMM CREEK - #52500Elevation:6177 ft.
Basin:PICEANCE BASIN
Planned Location:916FSL  523 FWLLat/Long: 39.494131 / -107.566600Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.494298 / -107.566509Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 4/27/2018             Measured TD: 6830 ft.    Vertical TD: 0 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 4/27/2018
Wellbore Permit
Permit #:950672 Expiration Date:2/17/1996
Proposed Depth/Form:
Surface Mineral Owner Same:Not available
Mineral Owner:FEDERALSurface Owner:FEDERAL
Unit: Unit Number:C-41048
Formation And Spacing:Code: MVRD , Formation: MESAVERDE , Order: 0 , Unit Acreage: 640, Drill Unit: ALL
Wellbore Completed
Completion Date:11/29/1995
Spud Date:10/9/1995Spud Date Is:ACTUAL
Measured TD:6830 ft.Measured PB depth:6754 ft.
True Vertical TD:0 ft.True Vertical PB depth:
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 733 ft., Weight: , Citings Type: HISTORICAL
Cement:Sacks: 535, Top: 0 ft., Bottom: , Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 6825 ft., Weight: , Citings Type: HISTORICAL
Cement:Sacks: 0, Top: 0 ft., Bottom: , Determination Method:
FormationInterval TopLog BottomCoredDSTs
OHIO CREEK3497 ft.
WILLIAMS FORK3854 ft.

Formation WMFK                     Formation Classification:  GW                     Status:  PR - 4/27/2018                 Interval Top: 4986 ft.    Interval Bottom: 6430 ft.

 Completed Information for Formation WILLIAMS FORK
1st Production Date:11/29/1995Choke Size:
Formation Name:WILLIAMS FORKCommingled:No
Production Method:
Open Hole Completion:No
Tubing Size:2.375 in.Tubing Setting Depth:5344 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation WMFK.
Perforation Data:
Interval Top:4986 ft.# Of Holes:40
Interval Bottom:6430 ft.Hole Size:0.33 in.
Primary Well Designation:
Low Producing      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingYProduction Period
02/2025 - 01/2026

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
February 2025 - January 2026i
Total Oil Produced (Barrels)27
Total Gas Produced (MCF)2527
GOR93592
GOR DeterminationMCFE
Average BOE per Day1.272
Average MCFE per Day7.364

 Federal Financial Assurance  i Y

 Tribal Well  i No
