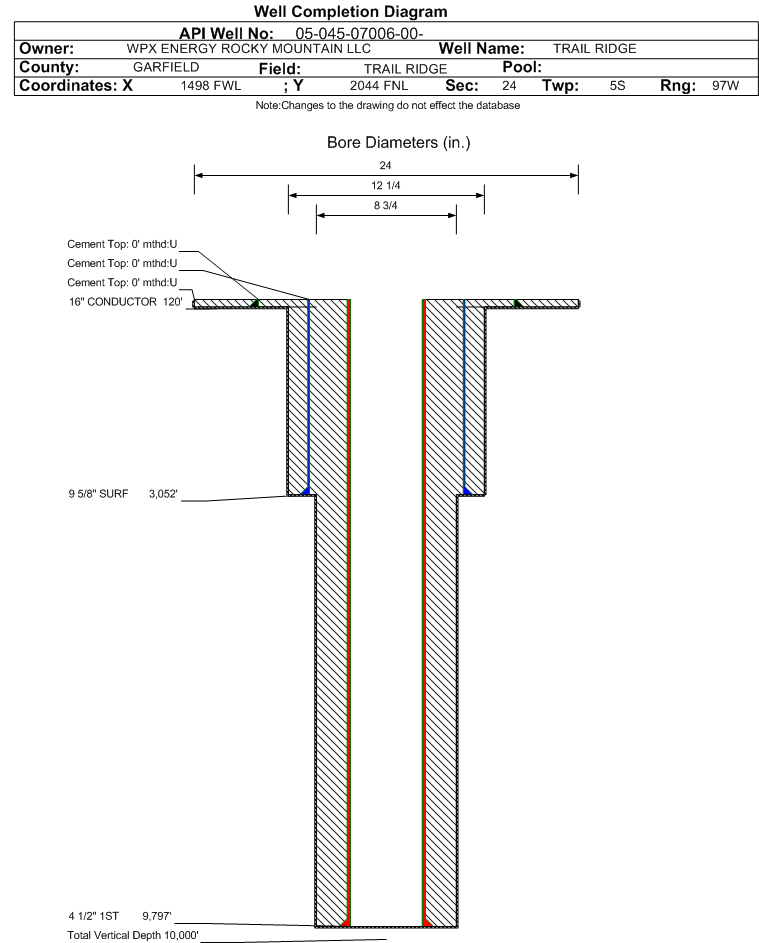

Wellbore #00 Wellbore Classification: GW Status: PR - 2/1/2021 Measured TD: 9800 ft. Vertical TD: 0 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 2/1/2021 | | Wellbore Permit | | | Permit #: | 20042358 | Expiration Date: | 9/29/2005 | | Proposed Depth/Form: | 9800 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: MVRD , Formation: MESAVERDE , Order: 0 , Unit Acreage: 320, Drill Unit: N2 | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: , Unit Acreage: , Drill Unit: | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 9.875 in., Top: , Depth: 3052 ft., Weight: 36 , Citings Type: PLANNED | | Cement: | Sacks: 1420, Top: 0 ft., Bottom: 1420 ft. | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 4.5 in., Top: , Depth: 9797 ft., Weight: 11.6 , Citings Type: PLANNED | | Cement: | Sacks: 1160, Top: 6520 ft., Bottom: 9800 ft. |
| | |
| Wellbore Completed | | Completion Date: | 11/24/1995 | | Spud Date: | 9/30/2004 | Spud Date Is: | PLANNED | | Measured TD: | 9800 ft. | Measured PB depth: | 9749 ft. | | True Vertical TD: | 0 ft. | True Vertical PB depth: | | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 16 in., Top: 0 ft., Depth: 120 ft., Weight: , Citings Type: HISTORICAL | | Cement: | Sacks: 1739, Top: 0 ft., Bottom: , Determination Method: | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 3052 ft., Weight: , Citings Type: HISTORICAL | | Cement: | Sacks: 0, Top: 0 ft., Bottom: , Determination Method: | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 4.5 in., Top: 0 ft., Depth: 9797 ft., Weight: , Citings Type: HISTORICAL | | Cement: | Sacks: 0, Top: 0 ft., Bottom: , Determination Method: | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH | 2935 ft. | | | | | OHIO CREEK | 6082 ft. | | | | | MESAVERDE | 6679 ft. | | | | | ROLLINS | 9587 ft. | | | |
Formation MVRD Formation Classification: GW Status: CM - 7/11/2003 Interval Top: 6679 ft.| Completed Information for Formation MESAVERDE | | 1st Production Date: | N/A | Choke Size: | 1,864.000 in. | | Formation Name: | MESAVERDE | Commingled: | | | Production Method: | | | Open Hole Completion: | |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation MVRD. |
| | No Perforation Data was found for formation MVRD. |
|
Formation WMFK Formation Classification: GW Status: PR - 2/1/2021| Completed Information for Formation WILLIAMS FORK | | 1st Production Date: | N/A | Choke Size: | | | Formation Name: | WILLIAMS FORK | Commingled: | | | Production Method: | | | Open Hole Completion: | |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation WMFK. |
| | No Perforation Data was found for formation WMFK. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 7 |
| Total Gas Produced (MCF) | 5519 |
| GOR | 788428 |
| GOR Determination | MCFE |
| Average BOE per Day | 2.631 |
| Average MCFE per Day | 15.242 |
| Federal Financial Assurance | i | |
|
|
