COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-06975		Well Classification: GW Status: PR - 6/12/1996
Well Name/No:FEDERAL #RMV 40-20
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:13229
Facility Status:PRStatus Date6/12/1996
FacilityID:211216LocationID:335154
County:GARFIELD #045Location:SENW 20 6S94W 6
Field:RULISON - #75400Elevation:5443 ft.
Basin:PICEANCE BASIN
Planned Location:2142FNL  2088 FWLLat/Long: 39.511869 / -107.913821Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.512034 / -107.914021Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 6/12/1996             Measured TD: 8790 ft.    Vertical TD: 0 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 6/12/1996
Wellbore Permit
Permit #:950943 Expiration Date:6/5/1996
Proposed Depth/Form:
Surface Mineral Owner Same:Not available
Mineral Owner:FEDERALSurface Owner:Not available
Unit: Unit Number:CO-CJ-02
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 139 , Unit Acreage: 320, Drill Unit: W2
Wellbore Completed
Completion Date:6/11/1996
Measured TD:8790 ft.Measured PB depth:0 ft.
True Vertical TD:0 ft.True Vertical PB depth:

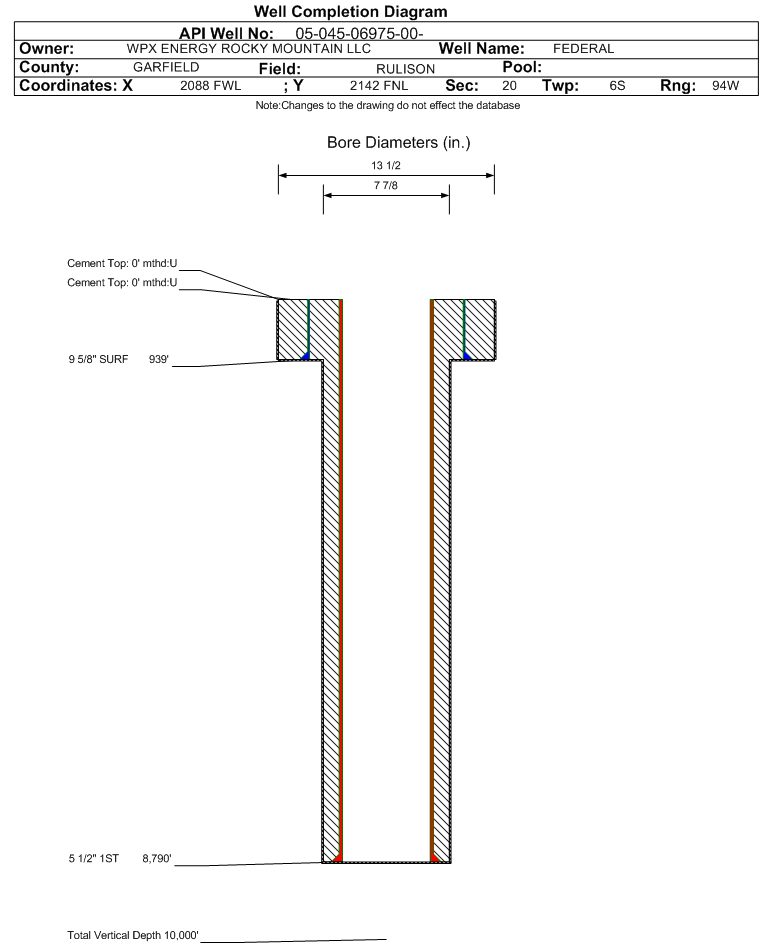

Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 939 ft., Weight: , Citings Type: HISTORICAL
Cement:Sacks: 395, Top: 0 ft., Bottom: , Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 8790 ft., Weight: , Citings Type: HISTORICAL
Cement:Sacks: 0, Top: 0 ft., Bottom: , Determination Method:
FormationInterval TopLog BottomCoredDSTs
WASATCH G1936 ft.
MESAVERDE4321 ft.
CAMEO COAL7010 ft.
ROLLINS7938 ft.
COZZETTE8282 ft.
CORCORAN8576 ft.

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 6/12/1996

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:N/AChoke Size:
Formation Name:WILLIAMS FORK - CAMEOCommingled:
Production Method:
Open Hole Completion:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation WFCM.
No Perforation Data was found for formation WFCM.

Formation WMFK                     Formation Classification:  GW                     Status:  CM - 6/12/1996

 Completed Information for Formation WILLIAMS FORK
1st Production Date:6/11/1996Choke Size:1,664.000 in.
Formation Name:WILLIAMS FORKCommingled:
Production Method:
Open Hole Completion:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation WMFK.
No Perforation Data was found for formation WMFK.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)31
Total Gas Produced (MCF)10762
GOR347161
GOR DeterminationMCFE
Average BOE per Day5.171
Average MCFE per Day29.983

 Federal Financial Assurance  i Y

 Tribal Well  i No
