COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-06964		Well Classification: GW Status: PR - 5/15/1995
Well Name/No:CLOUGH #RMV 32-21
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:13140
Facility Status:PRStatus Date5/15/1995
FacilityID:211205LocationID:323916
County:GARFIELD #045Location:NWSW 21 6S94W 6
Field:RULISON - #75400Elevation:5317 ft.
Basin:PICEANCE BASIN
Planned Location:1862FSL  516 FWLLat/Long: 39.508479 / -107.900930Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.508630 / -107.900897Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 5/15/1995             Measured TD: 7300 ft.    Vertical TD: 0 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 5/15/1995
Wellbore Permit
Permit #:941806 Expiration Date:5/18/1995
Proposed Depth/Form:
Surface Mineral Owner Same:Not available
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: WFCM , Formation: WILLIAMS FORK - CAMEO , Order: 139 , Unit Acreage: 320, Drill Unit: S2
Wellbore Completed
Completion Date:4/26/1995
Measured TD:7300 ft.Measured PB depth:0 ft.
True Vertical TD:0 ft.True Vertical PB depth:

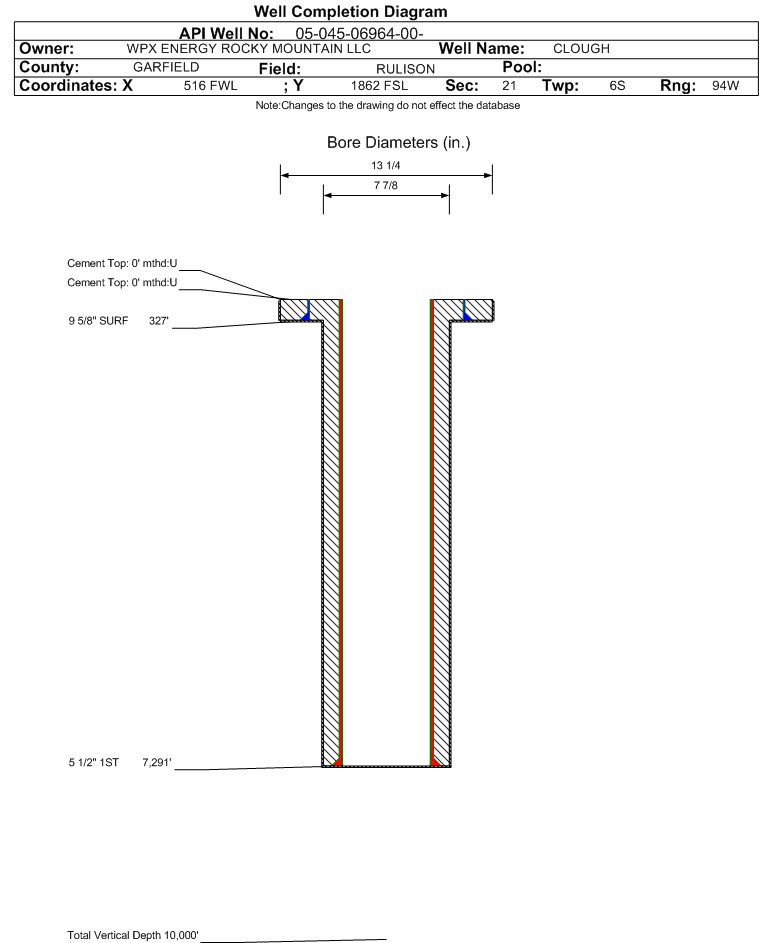

Casing:String Type: SURF, Hole Size: 13.25 in., Size: 9.625 in., Top: 0 ft., Depth: 327 ft., Weight: , Citings Type: HISTORICAL
Cement:Sacks: 150, Top: 0 ft., Bottom: , Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 7291 ft., Weight: , Citings Type: HISTORICAL
Cement:Sacks: 0, Top: 0 ft., Bottom: , Determination Method:
FormationInterval TopLog BottomCoredDSTs
MESAVERDE4100 ft.
CAMEO COAL6797 ft.

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 5/15/1995

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:4/26/1995Choke Size:0.000 in.
Formation Name:WILLIAMS FORK - CAMEOCommingled:
Production Method:
Open Hole Completion:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation WFCM.
No Perforation Data was found for formation WFCM.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)19
Total Gas Produced (MCF)7963
GOR419105
GOR DeterminationMCFE
Average BOE per Day3.815
Average MCFE per Day22.133

 Federal Financial Assurance  i

 Tribal Well  i No
