COGIS - WELL SCOUT CARD

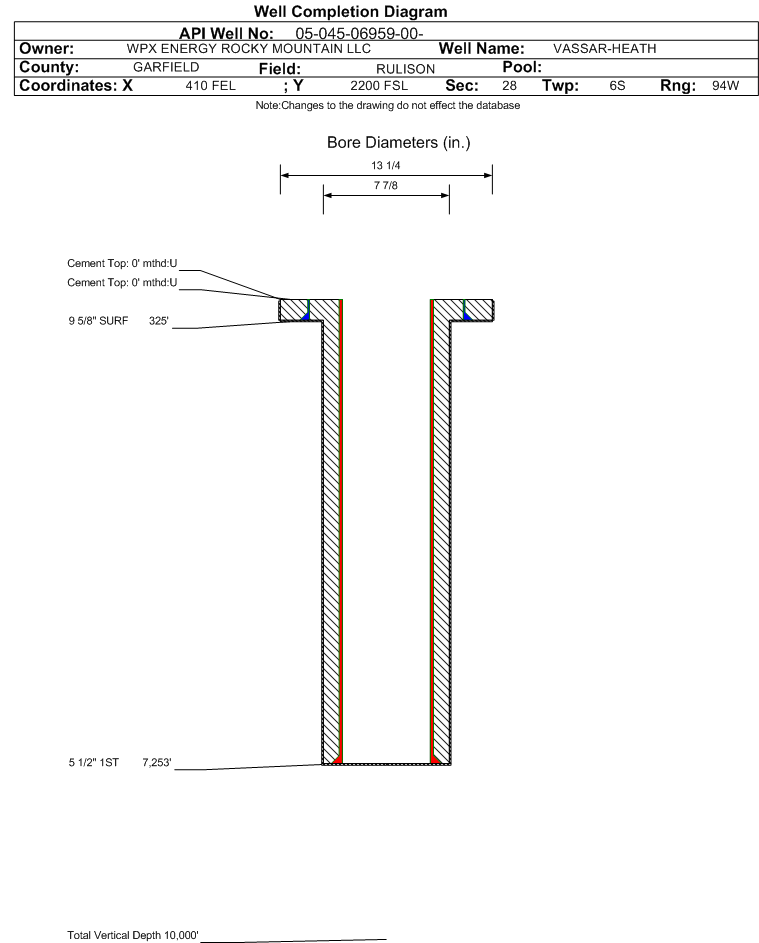

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-06959		Well Classification: GW Status: PR - 8/16/1995
Well Name/No:VASSAR-HEATH #RMV 34-28
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:13179
Facility Status:PRStatus Date8/16/1995
FacilityID:211200LocationID:323913
County:GARFIELD #045Location:NESE 28 6S94W 6
Field:RULISON - #75400Elevation:5371 ft.
Basin:PICEANCE BASIN
Planned Location:2200FSL  410 FELLat/Long: 39.495069 / -107.885020Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.495071 / -107.885087Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 8/16/1995             Measured TD: 7255 ft.    Vertical TD: 0 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 8/16/1995
Wellbore Permit
Permit #:941764 Expiration Date:5/9/1995
Proposed Depth/Form:
Surface Mineral Owner Same:Not available
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 139-27 , Unit Acreage: 320, Drill Unit: E2
Wellbore Completed
Completion Date:8/11/1995
Measured TD:7255 ft.Measured PB depth:0 ft.
True Vertical TD:0 ft.True Vertical PB depth:
Casing:String Type: SURF, Hole Size: 13.25 in., Size: 9.625 in., Top: 0 ft., Depth: 325 ft., Weight: , Citings Type: HISTORICAL
Cement:Sacks: 150, Top: 0 ft., Bottom: , Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 7253 ft., Weight: , Citings Type: HISTORICAL
Cement:Sacks: 0, Top: 0 ft., Bottom: , Determination Method:
FormationInterval TopLog BottomCoredDSTs
MESAVERDE3960 ft.
CAMEO COAL6740 ft.

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 8/16/1995

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:N/AChoke Size:
Formation Name:WILLIAMS FORK - CAMEOCommingled:
Production Method:
Open Hole Completion:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation WFCM.
No Perforation Data was found for formation WFCM.

Formation WMFK                     Formation Classification:  GW                     Status:  CM - 8/16/1995

 Completed Information for Formation WILLIAMS FORK
1st Production Date:8/11/1995Choke Size:0.000 in.
Formation Name:WILLIAMS FORKCommingled:
Production Method:
Open Hole Completion:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation WMFK.
No Perforation Data was found for formation WMFK.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)10
Total Gas Produced (MCF)6709
GOR670900
GOR DeterminationMCFE
Average BOE per Day3.198
Average MCFE per Day18.550

 Federal Financial Assurance  i

 Tribal Well  i No
