COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITGIS Map GISOld GIS Map Old GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-06901		Well Classification: GW Status: PR - 4/11/2005
Well Name/No:RULISON FEDERAL #1-13
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:QB ENERGY OPERATING LLC - 10844
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:13092
Facility Status:PRStatus Date4/11/2005
FacilityID:211142LocationID:334667
County:GARFIELD #045Location:SWSW 1 7S94W 6
Field:RULISON - #75400Elevation:6815 ft.
Basin:PICEANCE BASIN
Planned Location:869FSL  491 FWLLat/Long: 39.462710 / -107.843518Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.462810 / -107.843590Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 4/11/2005             Measured TD: 8338 ft.    Vertical TD: 0 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 4/11/2005
Wellbore Permit
Permit #:941113 Expiration Date:2/22/1995
Proposed Depth/Form:
Surface Mineral Owner Same:Not available
Mineral Owner:FEDERALSurface Owner:Not available
Unit: Unit Number:C-46029
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 139 , Unit Acreage: 640, Drill Unit: ALL
Wellbore Completed
Completion Date:10/8/1996
Spud Date:8/28/1994Spud Date Is:ACTUAL
Measured TD:8338 ft.Measured PB depth:8143 ft.
True Vertical TD:0 ft.True Vertical PB depth:

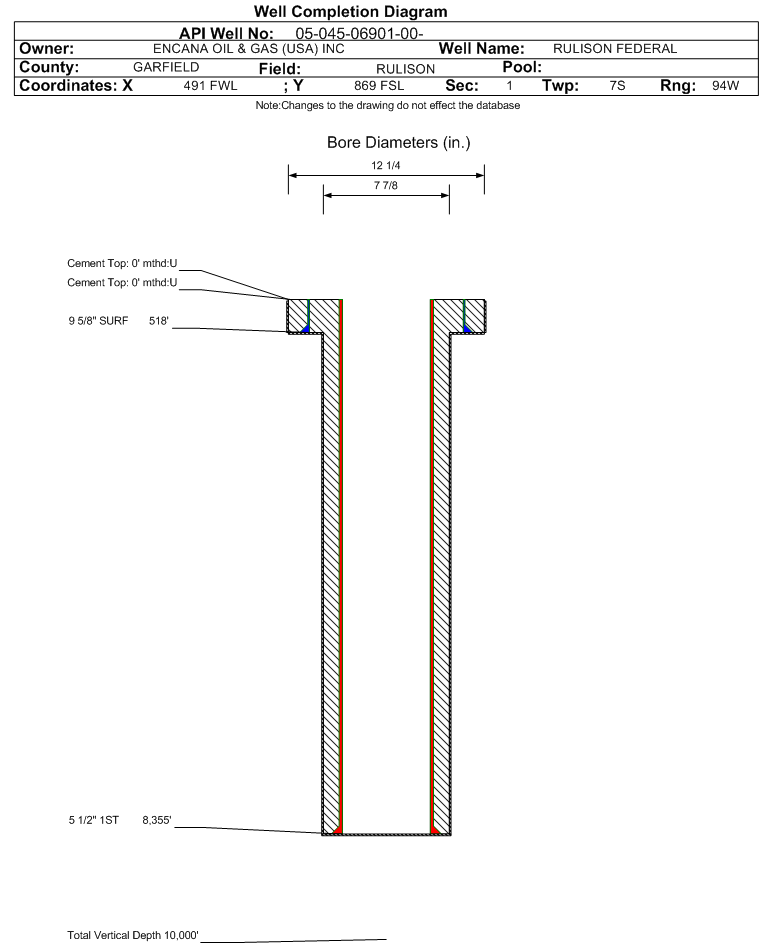

Casing:String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 518 ft., Weight: , Citings Type: HISTORICAL
Cement:Sacks: 200, Top: 0 ft., Bottom: , Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 8355 ft., Weight: , Citings Type: HISTORICAL
Cement:Sacks: 0, Top: 0 ft., Bottom: , Determination Method:
FormationInterval TopLog BottomCoredDSTs
MESAVERDE5130 ft.
CAMEO7900 ft.

Formation WMFK                     Formation Classification:  GW                     Status:  PR - 4/11/2005

 Completed Information for Formation WILLIAMS FORK
1st Production Date:11/23/1994Choke Size:0.000 in.
Formation Name:WILLIAMS FORKCommingled:
Production Method:
Open Hole Completion:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation WMFK.
No Perforation Data was found for formation WMFK.
Primary Well Designation:
Low Producing      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingYProduction Period
12/2024 - 11/2025

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
December 2024 - November 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)2945
GOR
GOR DeterminationMCFE
Average BOE per Day1.392
Average MCFE per Day8.070

 Federal Financial Assurance  i Y

 Tribal Well  i No
