COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-06892		Well Classification: GW Status: PR - 7/4/2005
Well Name/No:FEDERAL #GM 13-33
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:13374
Facility Status:PRStatus Date7/4/2005
FacilityID:211133LocationID:323902
County:GARFIELD #045Location:NWSW 33 6S96W 6
Field:GRAND VALLEY - #31290Elevation:5737 ft.
Basin:PICEANCE BASIN
Planned Location:2251FSL  1180 FWLLat/Long: 39.479288 / -108.118487Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.479432 / -108.118441Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 7/4/2005             Measured TD: 6720 ft.    Vertical TD: 0 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 7/4/2005
Wellbore Permit
Permit #:970570 Expiration Date:7/24/1998
Proposed Depth/Form:
Surface Mineral Owner Same:No
Mineral Owner:FEDERALSurface Owner:Not available
Unit: Unit Number:COC24099
Formation And Spacing:Code: WFCM , Formation: WILLIAMS FORK - CAMEO , Order: 479-5 , Unit Acreage: 160, Drill Unit: SW4
Wellbore Completed
Completion Date:N/A
Measured TD:6720 ft.Measured PB depth:0 ft.
True Vertical TD:0 ft.True Vertical PB depth:

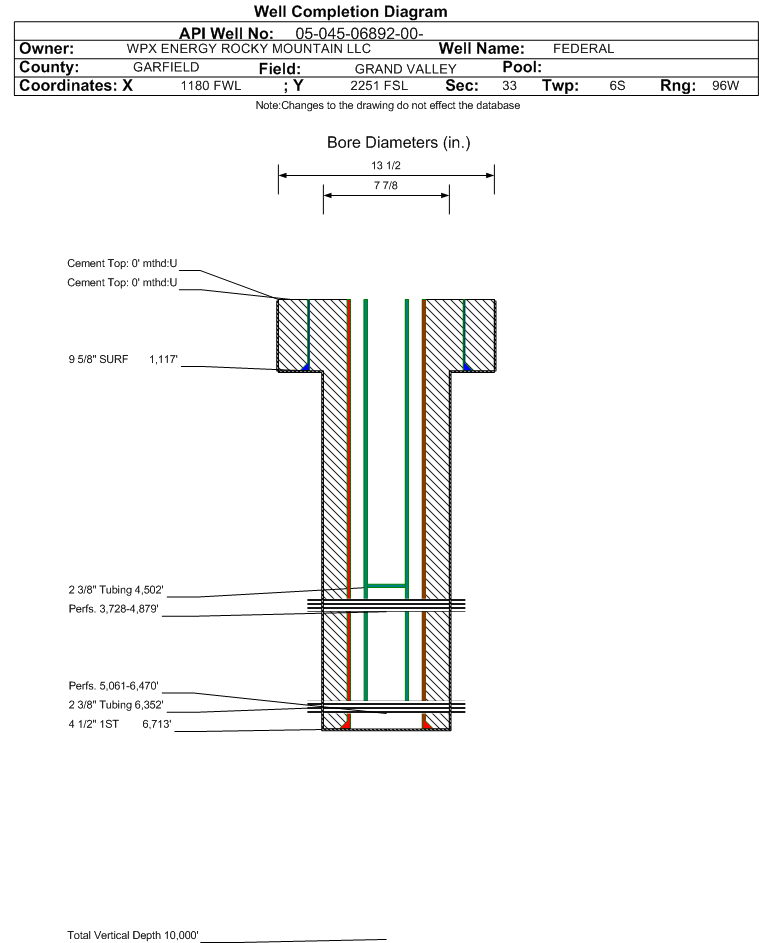

Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1117 ft., Weight: , Citings Type: HISTORICAL
Cement:Sacks: 575, Top: 0 ft., Bottom: , Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 6713 ft., Weight: , Citings Type: HISTORICAL
Cement:Sacks: 0, Top: 0 ft., Bottom: , Determination Method:
FormationInterval TopLog BottomCoredDSTs
FORT UNION2307 ft.
MESAVERDE3620 ft.
CAMEO COAL6127 ft.
ROLLINS6600 ft.

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 12/1/2010                 Interval Top: 5061 ft.    Interval Bottom: 6470 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:12/16/1997Choke Size:
Formation Name:WILLIAMS FORK - CAMEOCommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:12/16/1997
Treatment Summary:2750 GALS 1/2% HCL, 1,204,000# 20/40, 5537 BBLS GEL (SUMMARY)
Tubing Size:2.375 in.Tubing Setting Depth:6352 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:12/21/1997Test Method:
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
CALC_BBLS_H2O 5
CALC_BBLS_OIL 0
CALC_MCF_GAS 1320
CASING_PRESS 1808
TUBING_PRESS 1758
Perforation Data:
Interval Top:5061 ft.# Of Holes:48
Interval Bottom:6470 ft.Hole Size:

Formation WMFK                     Formation Classification:  GW                     Status:  CM - 7/4/2005                  Interval Top: 3728 ft.    Interval Bottom: 4879 ft.

 Completed Information for Formation WILLIAMS FORK
1st Production Date:N/AChoke Size:0.750 in.
Formation Name:WILLIAMS FORKCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:7/4/2005
Treatment Summary:1500 GALS 7 1/2% HCL, 69000# 20/40, 5206 BBLS SLICKWATER, 240 TONS CO2 (SUMMARY)
Tubing Size:2.375 in.Tubing Setting Depth:4502 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:7/4/2005Test Method:
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 0
BBLS_OIL 0
CALC_BBLS_H2O 0
CALC_BBLS_OIL 0
CALC_MCF_GAS 398
CASING_PRESS 528
MCF_GAS 398
TUBING_PRESS 251
Perforation Data:
Interval Top:3728 ft.# Of Holes:84
Interval Bottom:4879 ft.Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)14
Total Gas Produced (MCF)10759
GOR768500
GOR DeterminationMCFE
Average BOE per Day5.123
Average MCFE per Day29.719

 Federal Financial Assurance  i Y

 Tribal Well  i No
