COGIS - WELL SCOUT CARD

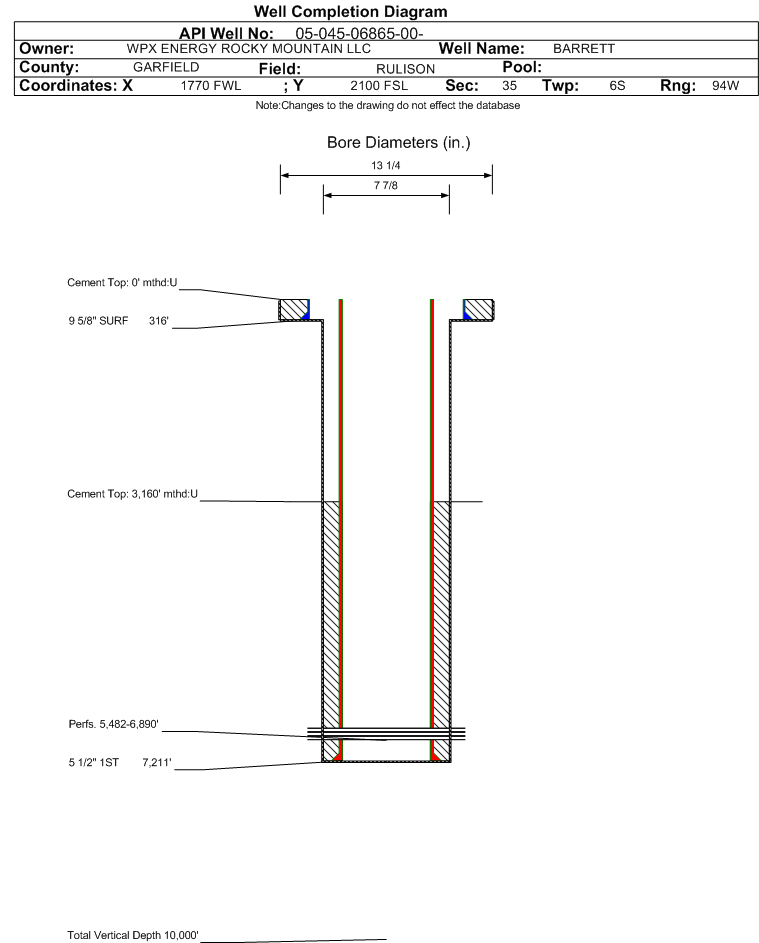

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITGIS Map GISOld GIS Map Old GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-06865		Well Classification: GW Status: PR - 12/27/1994
Well Name/No:BARRETT #RMV 16-35
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:12628
Facility Status:PRStatus Date12/27/1994
FacilityID:211106LocationID:323890
County:GARFIELD #045Location:NESW 35 6S94W 6
Field:RULISON - #75400Elevation:5637 ft.
Basin:PICEANCE BASIN
Planned Location:2100FSL  1770 FWLLat/Long: 39.480280 / -107.858539Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.480338 / -107.858647Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 12/27/1994             Measured TD: 7250 ft.    Vertical TD: 0 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 12/27/1994
Wellbore Permit
Permit #:940791 Expiration Date:12/24/1994
Proposed Depth/Form:
Surface Mineral Owner Same:Not available
Mineral Owner:FEDERALSurface Owner:Not available
Unit: Unit Number:C-07506
Formation And Spacing:Code: WFCM , Formation: WILLIAMS FORK - CAMEO , Order: 0 , Unit Acreage: 640, Drill Unit: ALL
Wellbore Completed
Completion Date:12/20/1994
Measured TD:7250 ft.Measured PB depth:0 ft.
True Vertical TD:0 ft.True Vertical PB depth:
Casing:String Type: SURF, Hole Size: 13.25 in., Size: 9.625 in., Top: 0 ft., Depth: 316 ft., Weight: 36 , Citings Type: HISTORICAL
Cement:Sacks: 150, Top: 0 ft., Bottom: 316 ft., Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 7211 ft., Weight: 17 , Citings Type: HISTORICAL
Cement:Sacks: 1100, Top: 3160 ft., Bottom: 7211 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
MESAVERDE4040 ft.
CAMEO COAL6870 ft.

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 12/27/1994                Interval Top: 5482 ft.    Interval Bottom: 6890 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:12/20/1994Choke Size:0.000 in.
Formation Name:WILLIAMS FORK - CAMEOCommingled:
Production Method:
Open Hole Completion:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:12/27/1994Test Method:FLOWING
Hours Tested:Gas Type:WET
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 20
BBLS_OIL 10
CALC_MCF_GAS 1550
CASING_PRESS 1000
TUBING_PRESS 880
Perforation Data:
Interval Top:5482 ft.# Of Holes:60
Interval Bottom:6890 ft.Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
February 2025 - January 2026i
Total Oil Produced (Barrels)17
Total Gas Produced (MCF)14144
GOR832000
GOR DeterminationMCFE
Average BOE per Day6.735
Average MCFE per Day39.050

 Federal Financial Assurance  i Y

 Tribal Well  i No
