COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-06863		Well Classification: GW Status: SI - 12/1/2025
Well Name/No:DOE #2-M-36
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:13059
Facility Status:SIStatus Date12/1/2025
FacilityID:211104LocationID:335177
County:GARFIELD #045Location:SWNE 36 6S96W 6
Field:GRAND VALLEY - #31290Elevation:6032 ft.
Basin:PICEANCE BASIN
Planned Location:1647FNL  1402 FELLat/Long: 39.482409 / -108.053765Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.482311 / -108.053545Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.

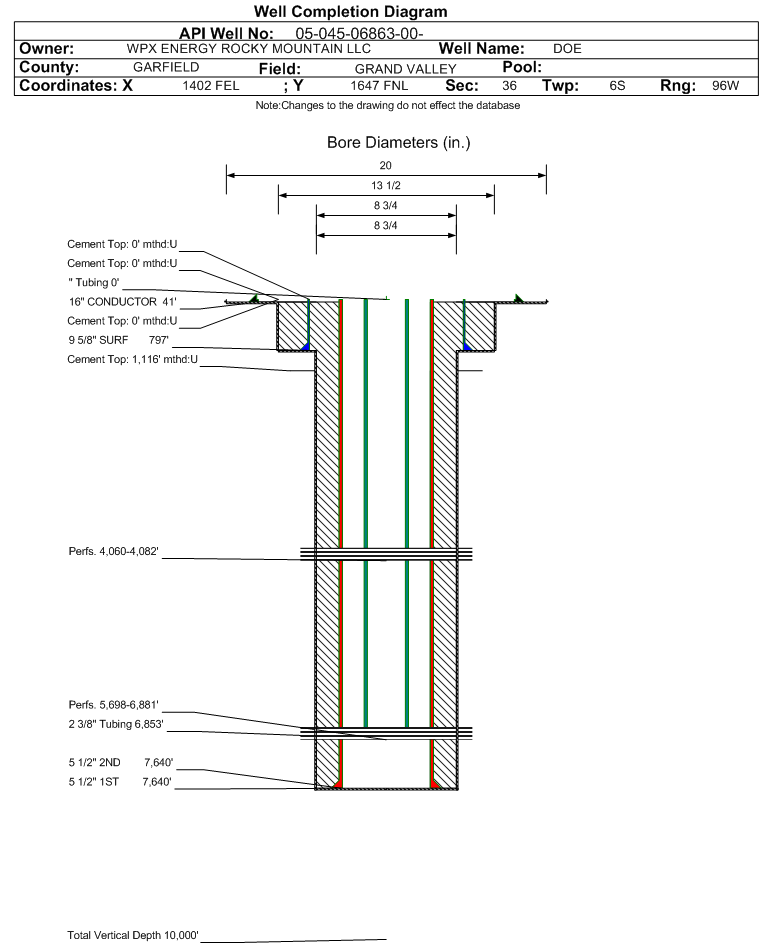

Wellbore #00             Wellbore Classification: GW             Status: SI - 12/1/2025             Measured TD: 7650 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        SI - 12/1/2025
Wellbore Permit
Permit #:940789 Expiration Date:12/24/1994
Proposed Depth/Form:
Surface Mineral Owner Same:Not available
Mineral Owner:FEDERALSurface Owner:Not available
Unit: Unit Number:NAVAL OIL RES
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 479 , Unit Acreage: 160, Drill Unit: NE4
Wellbore Completed
Completion Date:2/1/1995
Spud Date:8/11/1994Spud Date Is:ACTUAL
Measured TD:7650 ft.Measured PB depth:7514 ft.
True Vertical TD:True Vertical PB depth:
Log Types:ZDL/CN/GR,DIFL/GR,GR/CBL/CCL
Casing:String Type: CONDUCTOR, Hole Size: , Size: 16 in., Top: 0 ft., Depth: 41 ft., Weight: , Citings Type: HISTORICAL
Cement:Sacks: 370, Top: 0 ft., Bottom: , Determination Method:
Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 797 ft., Weight: 36 , Citings Type: ACTUAL
Cement:Sacks: 370, Top: 0 ft., Bottom: 797 ft., Determination Method:
Casing:String Type: 1ST, Hole Size: 8.75 in., Size: 5.5 in., Top: 0 ft., Depth: 7640 ft., Weight: , Citings Type: HISTORICAL
Cement:Sacks: 0, Top: 0 ft., Bottom: , Determination Method:
Casing:String Type: 2ND, Hole Size: 8.75 in., Size: 5.5 in., Top: 0 ft., Depth: 7640 ft., Weight: 17 , Citings Type: ACTUAL
Cement:Sacks: 2690, Top: 1116 ft., Bottom: 7640 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
MESAVERDE4366 ft.NN
CAMEO COAL6978 ft.NN
ROLLINS7450 ft.NN
MANCOS7556 ft.

Formation WMFK                     Formation Classification:  OW                     Status:  SI - 12/1/2025                 Interval Top: 5698 ft.    Interval Bottom: 6881 ft.

 Completed Information for Formation WILLIAMS FORK
1st Production Date:2/2/1995Choke Size:
Formation Name:WILLIAMS FORKCommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:2/1/1995
Treatment Summary:
Tubing Size:2.375 in.Tubing Setting Depth:6853 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:11/19/1999Test Method:
Hours Tested:24Gas Type:
Gas Disposal:
Test TypeMeasure
CALC_BBLS_H2O 22
CALC_MCF_GAS 696
CASING_PRESS 536
TUBING_PRESS 366
Perforation Data:
Interval Top:5698 ft.# Of Holes:57
Interval Bottom:6881 ft.Hole Size:

Formation MVRD                     Formation Classification:  OW                     Status:  SI - 11/1/2025                 Interval Top: 4366 ft.    Interval Bottom: 6881 ft.

 Completed Information for Formation MESAVERDE
1st Production Date:N/AChoke Size:1,264.000 in.
Formation Name:MESAVERDECommingled:No
Production Method:
Open Hole Completion:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation MVRD.
No Perforation Data was found for formation MVRD.

Formation RLNS                     Formation Classification:  GW                     Status:  SI - 11/1/2025                 Interval Top: 4060 ft.    Interval Bottom: 4082 ft.

 Completed Information for Formation ROLLINS
1st Production Date:N/AChoke Size:0.250 in.
Formation Name:ROLLINSCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:2/1/1995
Treatment Summary:1920 BBLS GELLED 2% DCL WTR, 140000#20/40 SAND
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:10/15/1991Test Method:
Hours Tested:24Gas Type:
Gas Disposal:
Test TypeMeasure
CALC_MCF_GAS 580
CASING_PRESS 450
Perforation Data:
Interval Top:4060 ft.# Of Holes:32
Interval Bottom:4082 ft.Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)12
Total Gas Produced (MCF)8877
GOR739750
GOR DeterminationMCFE
Average BOE per Day4.230
Average MCFE per Day24.533

 Federal Financial Assurance  i Y

 Tribal Well  i No
