Facility Detail

COGIS - WELL SCOUT CARD

Related Insp MIT GIS Old GIS Doc COA Wellbore Orders Bradenhead
Surface Location API# 05-045-06862		Well Classification: GW	Status: PA - 1/26/2011
Well Name/No:	DOE #1-M-18ST (Click Well Name for Production Data)	Click Here for Transporter Gatherer Info
Operator:	TEP ROCKY MOUNTAIN LLC - 96850 (Click Operator Name for Company Detail Report)	Federal Or State Lease #:	12495
Facility Status:	PA	Status Date	1/26/2011
FacilityID:	211103	LocationID:	335744
County:	GARFIELD #045	Location:	NENE 18 6S94W 6
Field:	RULISON - #75400	Elevation:	6170 ft.
Basin:	PICEANCE BASIN
Planned Location:	180FNL 34 FEL	Lat/Long: 39.531579 / -107.921511	Lat/Long Source: Calculated From Footages
As Drilled Location:	Footages Not Available	Lat/Long: 39.531710 / -107.921438	Lat/Long Source: Field Measured

Wellbore And Formation Details -- select either a wellbore Or formation to expand.

Wellbore #00 Wellbore Classification: GW Status: PA - 6/11/2010 Measured TD: 8976 ft. Vertical TD: 8841 ft.

Wellbore Data for Original Wellbore		Wellbore Classification: GW PA - 6/11/2010
Wellbore Permit			DIRECTIONAL
Permit #:	940788	Expiration Date:	12/24/1994
Proposed Depth/Form:	9050 ft.
Surface Mineral Owner Same:	Not available
Mineral Owner:	FEDERAL	Surface Owner:	Not available
Unit:		Unit Number:	NAVAL RES.#3
Formation And Spacing:	Code: WMFK , Formation: WILLIAMS FORK , Order: 0 , Unit Acreage: 320, Drill Unit: N2

Wellbore Completed
Completion Date:	6/24/1995
Spud Date:	11/8/1994	Spud Date Is:	ACTUAL
Measured TD:	8976 ft.	Measured PB depth:	8847 ft.
True Vertical TD:	8841 ft.	True Vertical PB depth:	8725 ft.

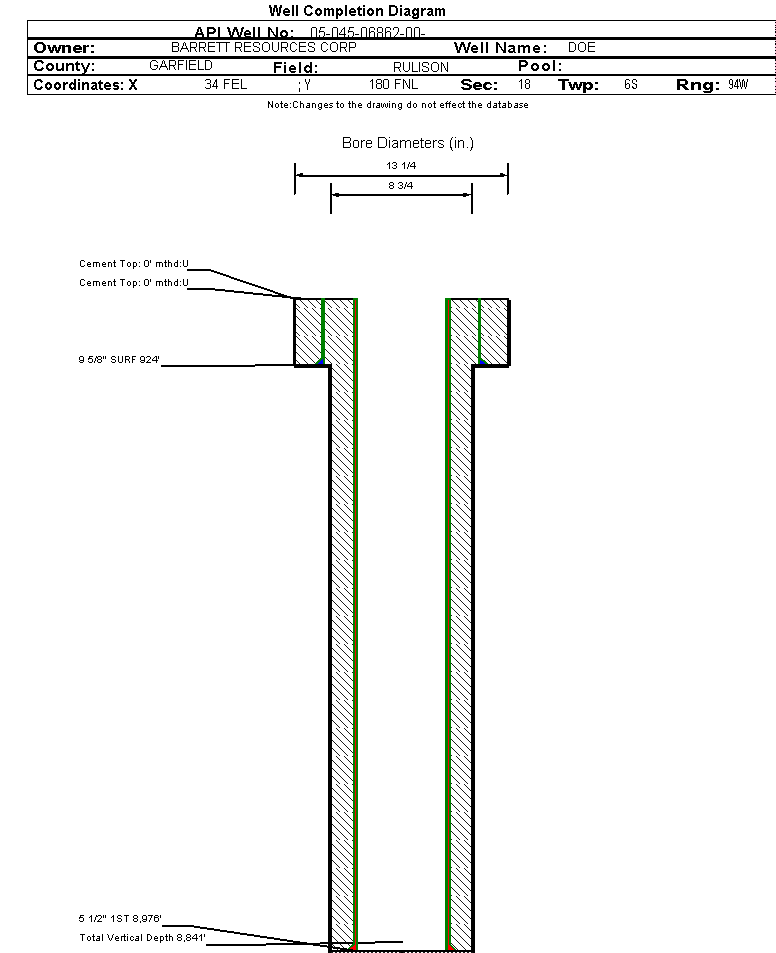

Casing:	String Type: CONDUCTOR, Hole Size: 18 in., Size: 16 in., Top: , Depth: 40 ft., Weight: 31.7 , Citings Type: ACTUAL
Cement:	Sacks: 0, Top: 0 ft., Bottom: 40 ft., Determination Method: VISU
Casing:	String Type: CONDUCTOR, Hole Size: 18 in., Size: 16 in., Top: 0 ft., Depth: 40 ft., Weight: 31.75 , Citings Type: HISTORICAL
Cement:	Sacks: , Top: 0 ft., Bottom: 40 ft., Determination Method:
Casing:	String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: , Depth: 924 ft., Weight: 36 , Citings Type: ACTUAL
Cement:	Sacks: 380, Top: 0 ft., Bottom: 924 ft., Determination Method: VISU
Casing:	String Type: SURF, Hole Size: 13.25 in., Size: 9.625 in., Top: 0 ft., Depth: 924 ft., Weight: 36 , Citings Type: HISTORICAL
Cement:	Sacks: 380, Top: 0 ft., Bottom: 924 ft., Determination Method: CALC
Casing:	String Type: 1ST, Hole Size: 8.75 in., Size: 5.5 in., Top: , Depth: 8976 ft., Weight: 17, 23 , Citings Type: ACTUAL
Cement:	Sacks: 2250, Top: 7200 ft., Bottom: 8976 ft., Determination Method: CALC
Casing:	String Type: 1ST, Hole Size: 8.75 in., Size: 5.5 in., Top: 0 ft., Depth: 8976 ft., Weight: 17-23 , Citings Type: HISTORICAL
Cement:	Sacks: 2850, Top: 1600 ft., Bottom: 8976 ft., Determination Method: CBL
Casing:	String Type: S.C. 1.1, Hole Size: 8.75 in., Size: 5.5 in., Top: , Depth: 3340 ft., Weight: 17 , Citings Type: ACTUAL
Cement:	Sacks: 2850, Top: 1600 ft., Bottom: 3340 ft., Determination Method: CALC
Formation	Interval Top	Log Bottom	Cored	DSTs
WILLIAMS FORK	5272 ft.
CAMEO COAL	8018 ft.

Formation CMEOC Formation Classification: GW Status: AB - 5/18/1995 Interval Top: 8509 ft. Interval Bottom: 8819 ft.

Completed Information for Formation CAMEO COAL

1st Production Date:	3/29/1995	Choke Size:	1.000 in.
Formation Name:	CAMEO COAL	Commingled:
Production Method:	FLOWING
Open Hole Completion:

Test Type	Measure
Tubing Size:		Tubing Setting Depth:
Tubing Packer Depth:		Tubing Multiple Packer:
Open Hole Top:		Open Hole Bottom:
Initial Test Data:
Test Date:	3/29/1995	Test Method:	FLOWING
Hours Tested:	24	Gas Type:
Gas Disposal:	SOLD
CALC_MCF_GAS	78
CASING_PRESS	260
MCF_GAS	78
TUBING_PRESS	650

Perforation Data:
Interval Top:	8509 ft.	# Of Holes:	168
Interval Bottom:	8819 ft.	Hole Size:

Formation WMFK Formation Classification: GW Status: AB - 1/26/2010 Interval Top: 6546 ft. Interval Bottom: 8380 ft.

Completed Information for Formation WILLIAMS FORK

1st Production Date:	6/24/1995	Choke Size:	2,464.000 in.
Formation Name:	WILLIAMS FORK	Commingled:
Production Method:
Open Hole Completion:

Test Type	Measure
Tubing Size:		Tubing Setting Depth:
Tubing Packer Depth:		Tubing Multiple Packer:
Open Hole Top:		Open Hole Bottom:
Initial Test Data:
Test Date:	6/26/1995	Test Method:	FLOWING
Hours Tested:	24	Gas Type:
Gas Disposal:	SOLD
BBLS_H2O	168
BBLS_OIL	10.4
CALC_BBLS_H2O	168
CALC_BBLS_OIL	10.4
CALC_GOR	128000
CALC_MCF_GAS	1280
CASING_PRESS	2000
MCF_GAS	1280
TUBING_PRESS	1175

Perforation Data:
Interval Top:	6546 ft.	# Of Holes:	214
Interval Bottom:	8380 ft.	Hole Size:	0.52 in.

Sidetrack #01 Wellbore Classification: GW Status: PA - 6/11/2010 Measured TD: 9157 ft.

Wellbore Data for Sidetrack #01		Wellbore Classification: GW PA - 6/11/2010
Wellbore Permit			DIRECTIONAL
Permit #:	500001	Expiration Date:	1/1/1951
Proposed Depth/Form:	9050 ft.
Surface Mineral Owner Same:
Mineral Owner:		Surface Owner:
Unit:		Unit Number:
Formation And Spacing:	Code: MVRD , Formation: MESAVERDE , Order: 440-15 , Unit Acreage: 320, Drill Unit: N2

Wellbore Completed
Completion Date:	12/12/1994
Spud Date:	11/8/1994	Spud Date Is:	ACTUAL
Measured TD:	9157 ft.	Measured PB depth:
True Vertical TD:		True Vertical PB depth:
No formation data to display.

All Designations		Date
Primary Well Designation: None i
Reported Plugged	Y	01/26/2011
Out Of Service Repurposed	N
Out Of Service	N
Inactive Exception	N
Noticed Inactive	N
Defined Inactive	N
Low Producing	N

February 2025 - January 2026	i
BOE/MCFE/GOR Calculations Production for Previous 12 Months
Total Oil Produced (Barrels)	0
Total Gas Produced (MCF)	0
GOR
GOR Determination
Average BOE per Day	0.000
Average MCFE per Day	0.000

Federal Financial Assurance

Tribal Well
