COGIS - WELL SCOUT CARD

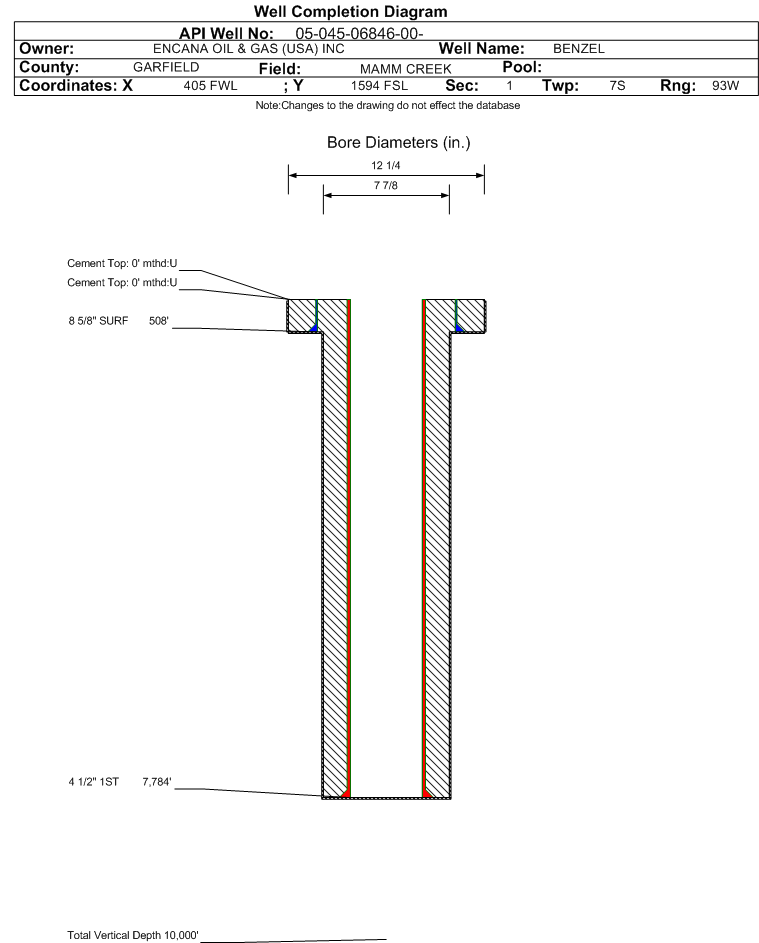

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-06846		Well Classification: GW Status: PR - 10/19/1994
Well Name/No:BENZEL #1-12
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:QB ENERGY OPERATING LLC - 10844
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:13093
Facility Status:PRStatus Date10/19/1994
FacilityID:211088LocationID:334851
County:GARFIELD #045Location:NWSW 1 7S93W 6
Field:MAMM CREEK - #52500Elevation:6157 ft.
Basin:PICEANCE BASIN
Planned Location:1594FSL  405 FWLLat/Long: 39.471791 / -107.731825Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.471880 / -107.731760Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 10/19/1994             Measured TD: 7785 ft.    Vertical TD: 0 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 10/19/1994
Wellbore Permit
Permit #:940353 Expiration Date:9/19/1994
Proposed Depth/Form:
Surface Mineral Owner Same:Not available
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: MVRD , Formation: MESAVERDE , Order: 0 , Unit Acreage: 52678, Drill Unit: U
Wellbore Completed
Completion Date:12/1/1994
Measured TD:7785 ft.Measured PB depth:7690 ft.
True Vertical TD:0 ft.True Vertical PB depth:
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 508 ft., Weight: , Citings Type: HISTORICAL
Cement:Sacks: 380, Top: 0 ft., Bottom: , Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7784 ft., Weight: , Citings Type: HISTORICAL
Cement:Sacks: 0, Top: 0 ft., Bottom: , Determination Method:
FormationInterval TopLog BottomCoredDSTs
OHIO CREEK3475 ft.
MESAVERDE3670 ft.
CAMEO6893 ft.
ROLLINS7652 ft.

Formation MVRD                     Formation Classification:  GW                     Status:  PR - 10/19/1994                Interval Top: 3670 ft.

 Completed Information for Formation MESAVERDE
1st Production Date:12/1/1994Choke Size:2,464.000 in.
Formation Name:MESAVERDECommingled:
Production Method:
Open Hole Completion:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation MVRD.
No Perforation Data was found for formation MVRD.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)9
Total Gas Produced (MCF)7244
GOR804888
GOR DeterminationMCFE
Average BOE per Day3.446
Average MCFE per Day19.994

 Federal Financial Assurance  i

 Tribal Well  i No
