COGIS - WELL SCOUT CARD

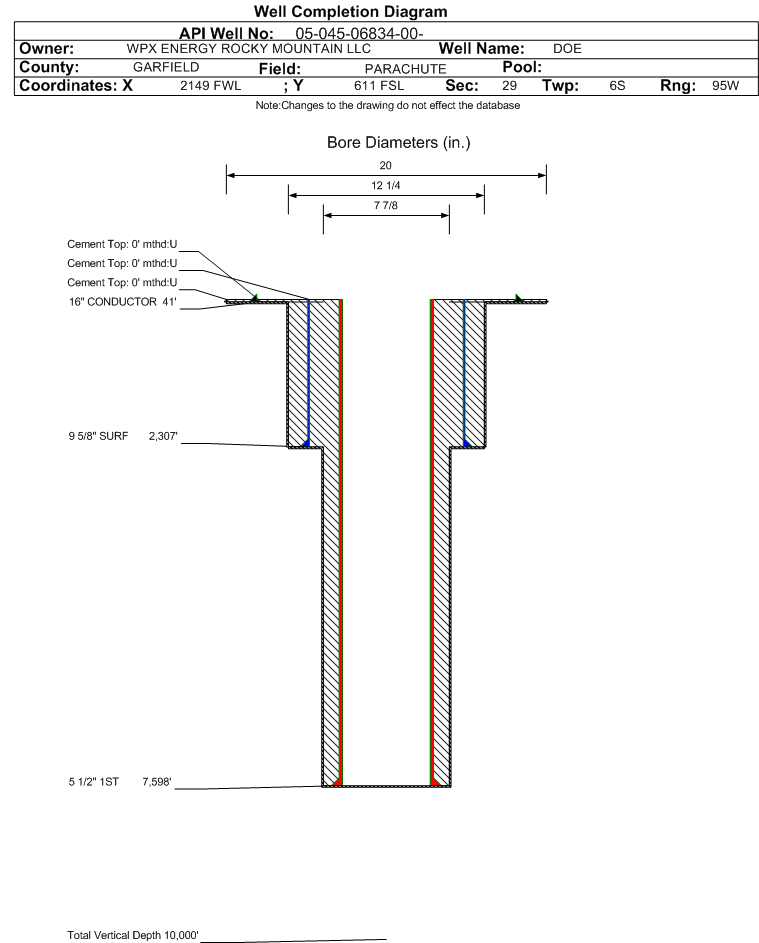

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-06834		Well Classification: CBM Status: PR - 6/25/1997
Well Name/No:DOE #2 M 29
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:13061
Facility Status:PRStatus Date6/25/1997
FacilityID:211076LocationID:335238
County:GARFIELD #045Location:SESW 29 6S95W 6
Field:PARACHUTE - #67350Elevation:5673 ft.
Basin:PICEANCE BASIN
Planned Location:611FSL  2149 FWLLat/Long: 39.489939 / -108.023544Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.489976 / -108.023588Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: CBM             Status: PR - 6/25/1997             Measured TD: 7595 ft.    Vertical TD: 0 ft.

 Wellbore Data for Original WellboreWellbore Classification: CBM        PR - 6/25/1997
Wellbore Permit
Permit #:931860 Expiration Date:4/2/1994
Proposed Depth/Form:
Surface Mineral Owner Same:Not available
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: WFCM , Formation: WILLIAMS FORK - CAMEO , Order: 0 , Unit Acreage: 320, Drill Unit: E2
Wellbore Completed
Completion Date:2/2/1995
Measured TD:7595 ft.Measured PB depth:7511 ft.
True Vertical TD:0 ft.True Vertical PB depth:
Casing:String Type: CONDUCTOR, Hole Size: 20 in., Size: 16 in., Top: 0 ft., Depth: 41 ft., Weight: , Citings Type: HISTORICAL
Cement:Sacks: 0, Top: 0 ft., Bottom: , Determination Method:
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 2307 ft., Weight: , Citings Type: HISTORICAL
Cement:Sacks: 0, Top: 0 ft., Bottom: , Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 7598 ft., Weight: , Citings Type: HISTORICAL
Cement:Sacks: 0, Top: 0 ft., Bottom: , Determination Method:
FormationInterval TopLog BottomCoredDSTs
WILLIAMS FORK3670 ft.
ILES7373 ft.
MANCOS7478 ft.

Formation CAMMV                   Formation Classification:  GW                   Status:  CM - 6/25/1997

 Completed Information for Formation CAMEO COALS-MESAVERDE
1st Production Date:N/AChoke Size:
Formation Name:CAMEO COALS-MESAVERDECommingled:
Production Method:
Open Hole Completion:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation CAMMV.
No Perforation Data was found for formation CAMMV.

Formation CMEOC                   Formation Classification:  GW                   Status:  CM - 6/25/1997

 Completed Information for Formation CAMEO COAL
1st Production Date:2/2/1995Choke Size:1,664.000 in.
Formation Name:CAMEO COALCommingled:
Production Method:
Open Hole Completion:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation CMEOC.
No Perforation Data was found for formation CMEOC.

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 4/1/2012

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:N/AChoke Size:
Formation Name:WILLIAMS FORK - CAMEOCommingled:
Production Method:
Open Hole Completion:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation WFCM.
No Perforation Data was found for formation WFCM.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)12
Total Gas Produced (MCF)9660
GOR805000
GOR DeterminationMCFE
Average BOE per Day4.599
Average MCFE per Day26.670

 Federal Financial Assurance  i Y

 Tribal Well  i No
