COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-06820		Well Classification: GW Status: PR - 7/1/2020
Well Name/No:PUCKETT #MV 60-8D
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:13096
Facility Status:PRStatus Date7/1/2020
FacilityID:211062LocationID:334950
County:GARFIELD #045Location:SWNE 8 7S96W 6
Field:GRAND VALLEY - #31290Elevation:6189 ft.
Basin:PICEANCE BASIN
Planned Location:1819FNL  2517 FELLat/Long: 39.453999 / -108.131147Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.454250 / -108.130373Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 7/1/2020             Measured TD: 7005 ft.    Vertical TD: 0 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 7/1/2020
Wellbore PermitDIRECTIONAL
Permit #:931461 Expiration Date:2/4/1994
Proposed Depth/Form:
Surface Mineral Owner Same:Not available
Mineral Owner:FEDERALSurface Owner:Not available
Unit: Unit Number:C-24603
Formation And Spacing:Code: WFCM , Formation: WILLIAMS FORK - CAMEO , Order: 0 , Unit Acreage: 320, Drill Unit: W2
Wellbore Completed
Completion Date:7/22/1994
Spud Date:10/5/1993Spud Date Is:ACTUAL
Measured TD:7005 ft.Measured PB depth:0 ft.
True Vertical TD:0 ft.True Vertical PB depth:

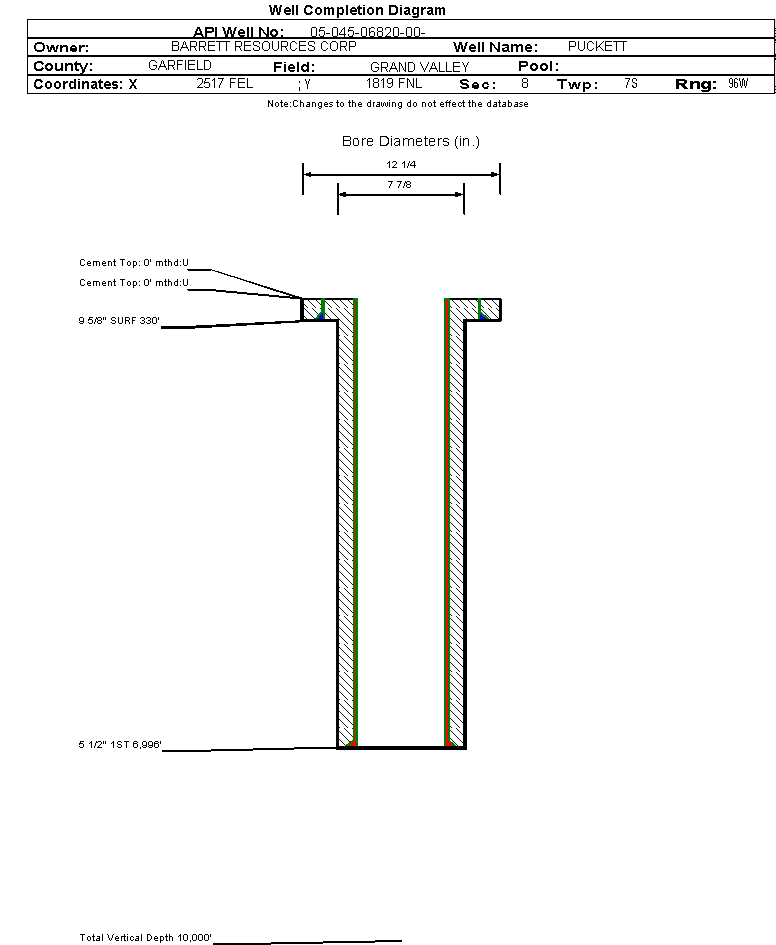

Casing:String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 330 ft., Weight: , Citings Type: HISTORICAL
Cement:Sacks: 130, Top: 0 ft., Bottom: , Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 6996 ft., Weight: , Citings Type: HISTORICAL
Cement:Sacks: 0, Top: 0 ft., Bottom: , Determination Method:
FormationInterval TopLog BottomCoredDSTs
FORT UNION2350 ft.
MESAVERDE3686 ft.
CAMEO COAL6355 ft.
ROLLINS6427 ft.

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 7/1/2020

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:7/27/1994Choke Size:0.000 in.
Formation Name:WILLIAMS FORK - CAMEOCommingled:
Production Method:
Open Hole Completion:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation WFCM.
No Perforation Data was found for formation WFCM.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)12
Total Gas Produced (MCF)7257
GOR604750
GOR DeterminationMCFE
Average BOE per Day3.459
Average MCFE per Day20.070

 Federal Financial Assurance  i Y

 Tribal Well  i No
