COGIS - WELL SCOUT CARD

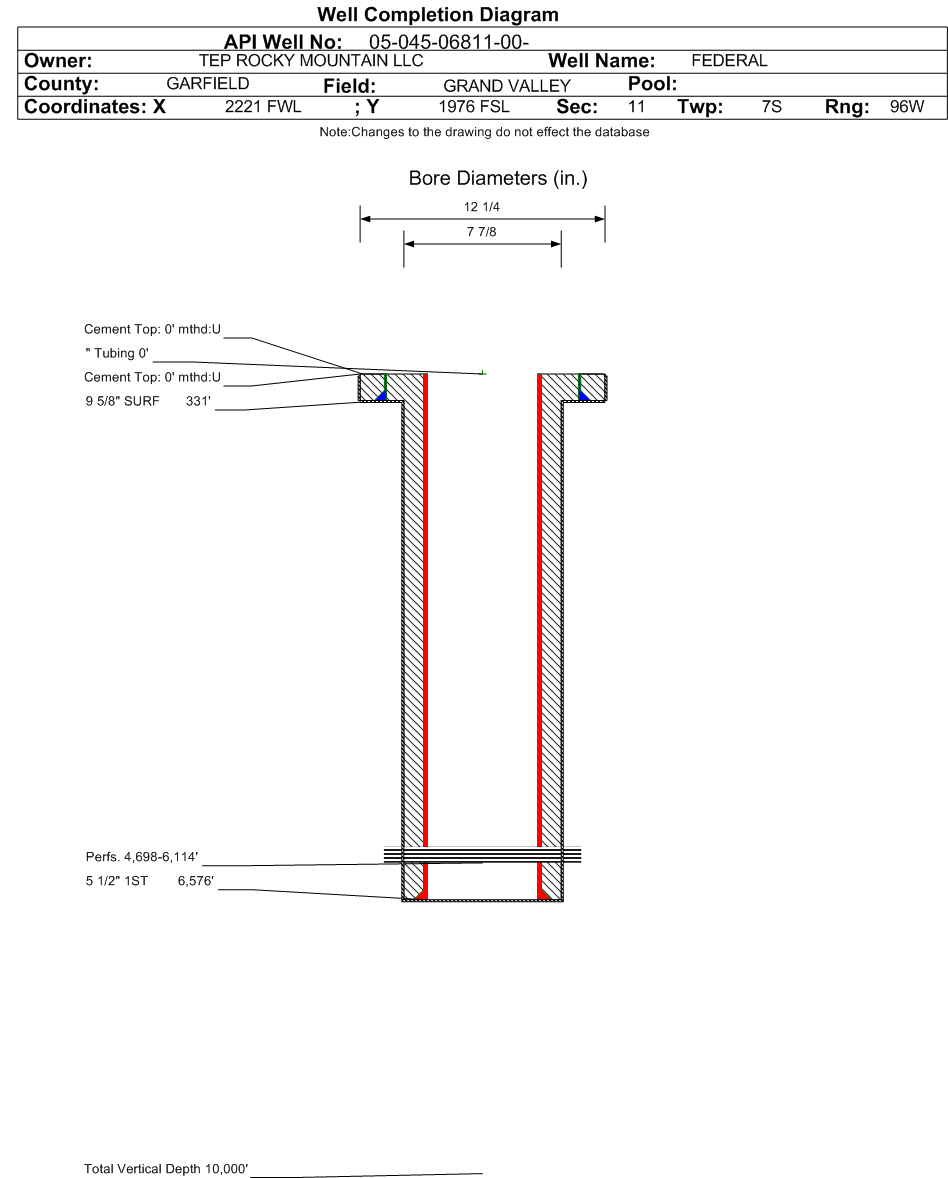

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-06811		Well Classification: GW Status: PR - 8/8/2018
Well Name/No:FEDERAL #GR 23-11
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:13078
Facility Status:PRStatus Date8/8/2018
FacilityID:211053LocationID:323872
County:GARFIELD #045Location:NESW 11 7S96W 6
Field:GRAND VALLEY - #31290Elevation:5791 ft.
Basin:PICEANCE BASIN
Planned Location:1976FSL  2221 FWLLat/Long: 39.450039 / -108.079025Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.450125 / -108.078833Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 8/8/2018             Measured TD: 6580 ft.    Vertical TD: 0 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 8/8/2018
Wellbore Permit
Permit #:931213 Expiration Date:1/1/1994
Proposed Depth/Form:
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: WFCM , Formation: WILLIAMS FORK - CAMEO , Order: 0 , Unit Acreage: 160, Drill Unit: SW4
Wellbore Completed
Completion Date:11/23/1993
Measured TD:6580 ft.Measured PB depth:0 ft.
True Vertical TD:0 ft.True Vertical PB depth:
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 331 ft., Weight: , Citings Type: HISTORICAL
Cement:Sacks: 180, Top: 0 ft., Bottom: , Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 6576 ft., Weight: , Citings Type: HISTORICAL
Cement:Sacks: 0, Top: 0 ft., Bottom: , Determination Method:
FormationInterval TopLog BottomCoredDSTs
FORT UNION2100 ft.
MESAVERDE3455 ft.
CAMEO COAL5988 ft.
ROLLINS6454 ft.

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 8/8/2018                  Interval Top: 4698 ft.    Interval Bottom: 6114 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:8/6/2018Choke Size:
Formation Name:WILLIAMS FORK - CAMEOCommingled:
Production Method:
Open Hole Completion:No
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation WFCM.
Perforation Data:
Interval Top:4698 ft.# Of Holes:264
Interval Bottom:6114 ft.Hole Size:0.35 in.

Formation WMFK                     Formation Classification:  GW                     Status:  CM - 12/2/1993

 Completed Information for Formation WILLIAMS FORK
1st Production Date:N/AChoke Size:1,564.000 in.
Formation Name:WILLIAMS FORKCommingled:
Production Method:
Open Hole Completion:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation WMFK.
No Perforation Data was found for formation WMFK.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)5
Total Gas Produced (MCF)4336
GOR867200
GOR DeterminationMCFE
Average BOE per Day2.057
Average MCFE per Day11.960

 Federal Financial Assurance  i Y

 Tribal Well  i No
