COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-06809		Well Classification: GW Status: PR - 8/28/1994
Well Name/No:UNOCAL #MV 41-33
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:13067
Facility Status:PRStatus Date8/28/1994
FacilityID:211051LocationID:323871
County:GARFIELD #045Location:NENE 33 6S96W 6
Field:GRAND VALLEY - #31290Elevation:5408 ft.
Basin:PICEANCE BASIN
Planned Location:600FNL  600 FELLat/Long: 39.486088 / -108.106196Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.486155 / -108.106137Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 8/28/1994             Measured TD: 6590 ft.    Vertical TD: 0 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 8/28/1994
Wellbore PermitDRIFTED
Permit #:931164 Expiration Date:4/22/1994
Bottom Hole Location:Sec:33 Twp: 6S 94W Footage: 864 FNL  609 FEL
Proposed Depth/Form:
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: WFCM , Formation: WILLIAMS FORK - CAMEO , Order: 0 , Unit Acreage: 160, Drill Unit: NE4
Wellbore Completed
Completion Date:8/24/1994
Measured TD:6590 ft.Measured PB depth:0 ft.
True Vertical TD:0 ft.True Vertical PB depth:

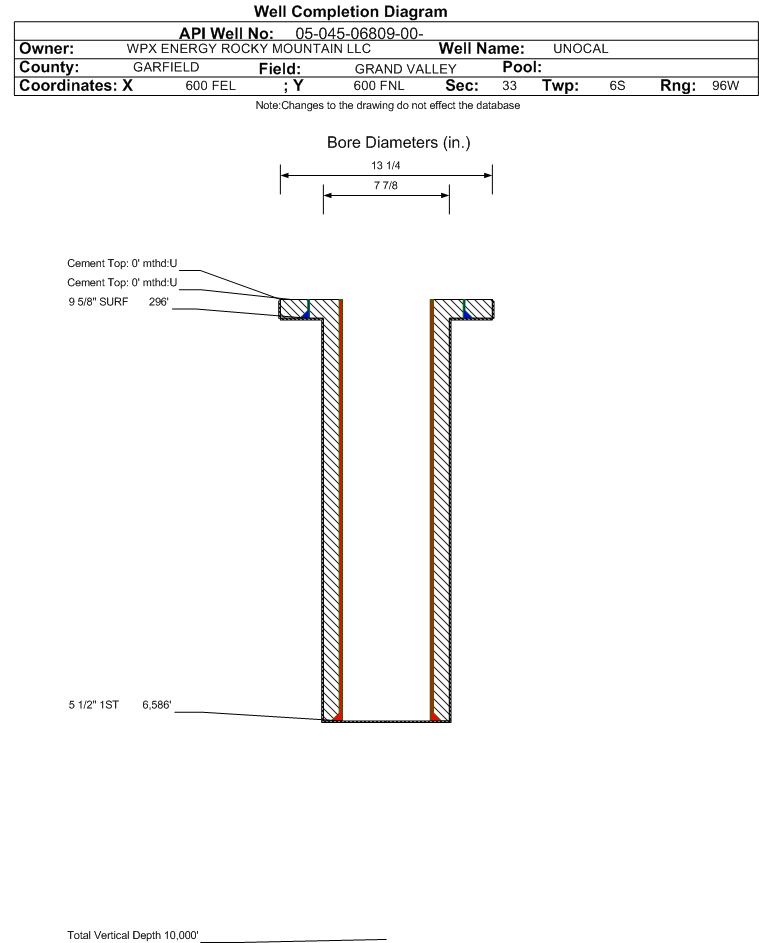

Casing:String Type: SURF, Hole Size: 13.25 in., Size: 9.625 in., Top: 0 ft., Depth: 296 ft., Weight: , Citings Type: HISTORICAL
Cement:Sacks: 130, Top: 0 ft., Bottom: , Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 6586 ft., Weight: , Citings Type: HISTORICAL
Cement:Sacks: 0, Top: 0 ft., Bottom: , Determination Method:
FormationInterval TopLog BottomCoredDSTs
GREELEY SAND1758 ft.
FORT UNION2038 ft.
MESAVERDE3418 ft.
CAMEO COAL6005 ft.

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 8/28/1994

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:8/26/1994Choke Size:0.000 in.
Formation Name:WILLIAMS FORK - CAMEOCommingled:
Production Method:
Open Hole Completion:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation WFCM.
No Perforation Data was found for formation WFCM.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)13
Total Gas Produced (MCF)8806
GOR677384
GOR DeterminationMCFE
Average BOE per Day4.192
Average MCFE per Day24.340

 Federal Financial Assurance  i

 Tribal Well  i No
