Wellbore #00 Wellbore Classification: GW Status: PR - 10/8/2007 Measured TD: 6450 ft. Vertical TD: 6450 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 10/8/2007 | | Wellbore Permit | | | Permit #: | 930934 | Expiration Date: | 11/13/1993 | | Proposed Depth/Form: | | | Surface Mineral Owner Same: | Not available | | Mineral Owner: | FEDERAL | Surface Owner: | Not available | | Unit: | | Unit Number: | C 34553-A | | Formation And Spacing: | Code: WFCM , Formation: WILLIAMS FORK - CAMEO , Order: 0 , Unit Acreage: 320, Drill Unit: N2 |
| | |

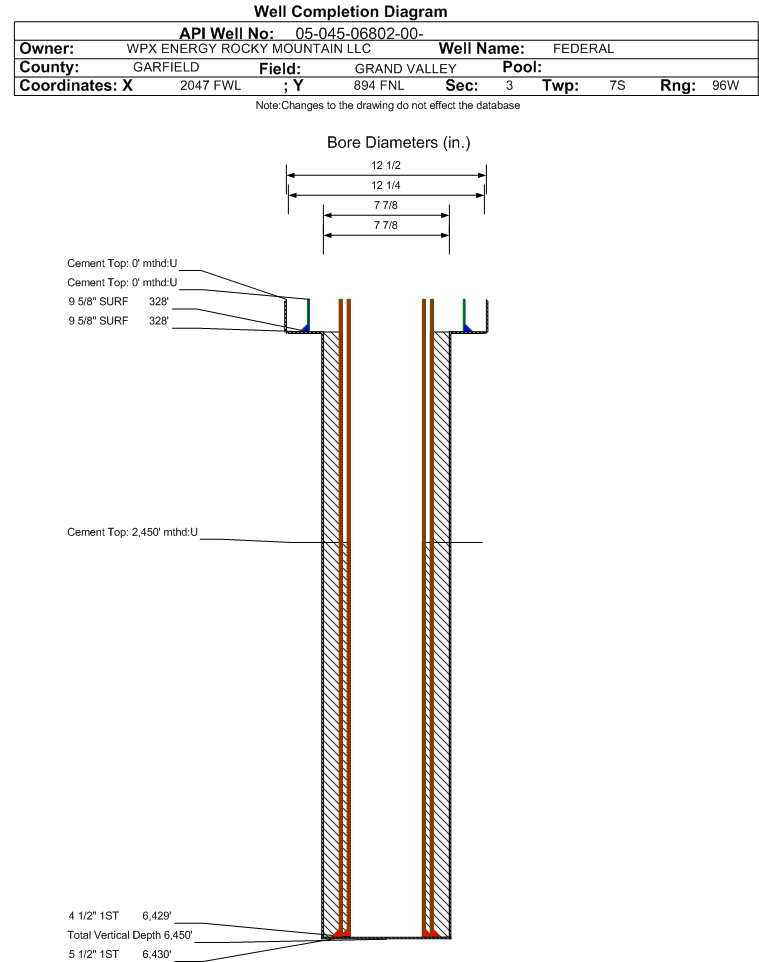

| Wellbore Completed | | Completion Date: | 8/8/1993 | | Spud Date: | 7/27/1993 | Spud Date Is: | ACTUAL | | Measured TD: | 6450 ft. | Measured PB depth: | 6430 ft. | | True Vertical TD: | 6450 ft. | True Vertical PB depth: | 6430 ft. | | Bottom Hole Location: | Sec:3 Twp: 7s 96w | Footage: 894 FNL 2047 FWL | | Log Types: | | | Casing: | String Type: SURF, Hole Size: 12.5 in., Size: 9.625 in., Top: 0 ft., Depth: 328 ft., Weight: 0 , Citings Type: ACTUAL | | Cement: | Sacks: 120, Top: 0 ft., Bottom: 328 ft., Determination Method: CALC | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 328 ft., Weight: , Citings Type: HISTORICAL | | Cement: | Sacks: 120, Top: 0 ft., Bottom: , Determination Method: | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 6429 ft., Weight: 0 , Citings Type: ACTUAL | | Cement: | Sacks: 1115, Top: 2450 ft., Bottom: 6429 ft., Determination Method: CBL | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 6430 ft., Weight: , Citings Type: HISTORICAL | | Cement: | Sacks: 0, Top: 0 ft., Bottom: , Determination Method: | | Additional Cement: | String Type: 1ST , Top: 1200 ft., Depth: 1200 ft., Bottom: 1228 ft., Sacks: 40, Method: SQUEEZE | | Additional Cement: | String Type: 1ST , Top: 0 ft., Depth: 695 ft., Bottom: 695 ft., Sacks: 155, Method: SQUEEZE | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH G | 1674 ft. | | | | | FORT UNION | 1936 ft. | | | | | MESAVERDE | 3338 ft. | | | | | CAMEO | 5831 ft. | | | | | ROLLINS | 6312 ft. | | | |
Formation WFCM Formation Classification: GW Status: PR - 11/1/2012| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | 8/21/1993 | Choke Size: | 0.000 in. | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | | | Production Method: | | | Open Hole Completion: | |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation WFCM. |
| | No Perforation Data was found for formation WFCM. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 7 |
| Total Gas Produced (MCF) | 4728 |
| GOR | 675428 |
| GOR Determination | MCFE |
| Average BOE per Day | 2.255 |
| Average MCFE per Day | 13.069 |
| Federal Financial Assurance | i | Y |
|
|
