COGIS - WELL SCOUT CARD

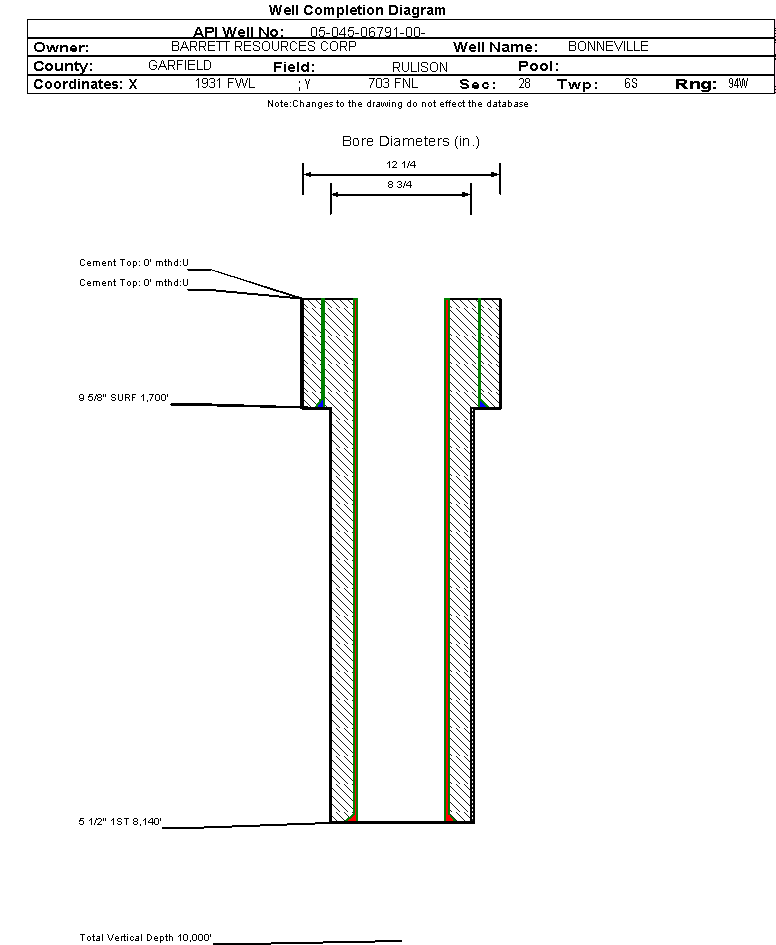

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITGIS Map GISOld GIS Map Old GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-06791		Well Classification: DA Status: PA - 6/18/1996
Well Name/No:BONNEVILLE #RU-1-28-SH
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:13017
Facility Status:PAStatus Date6/18/1996
FacilityID:211033LocationID:335309
County:GARFIELD #045Location:NENW 28 6S94W 6
Field:WILDCAT - #99999Elevation:5210 ft.
Basin:PICEANCE BASIN
Planned Location:703FNL  1931 FWLLat/Long: 39.501449 / -107.895780Lat/Long Source: Calculated From Footages
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: DA             Status: AB - 6/18/1996             Measured TD: 8181 ft.    Vertical TD: 0 ft.

 Wellbore Data for Original WellboreWellbore Classification: DA        AB - 6/18/1996
Wellbore PermitHORIZONTAL
Permit #:930605 Expiration Date:9/15/1993
Proposed Depth/Form:
Surface Mineral Owner Same:Not available
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: MVRD , Formation: MESAVERDE , Order: 139-25 , Unit Acreage: 320, Drill Unit: W2
Wellbore Completed
Completion Date:7/27/1993
Spud Date:7/27/1993Spud Date Is:ACTUAL
Measured TD:8181 ft.Measured PB depth:0 ft.
True Vertical TD:0 ft.True Vertical PB depth:
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 1700 ft., Weight: , Citings Type: HISTORICAL
Cement:Sacks: 740, Top: 0 ft., Bottom: , Determination Method:
Casing:String Type: 1ST, Hole Size: 8.75 in., Size: 5.5 in., Top: 0 ft., Depth: 8140 ft., Weight: , Citings Type: HISTORICAL
Cement:Sacks: 0, Top: 0 ft., Bottom: , Determination Method:
FormationInterval TopLog BottomCoredDSTs
WASATCH1 ft.
MESAVERDE3864 ft.

Formation MVRD                     Formation Classification:  GW                     Status:  AB - 6/18/1996                 Interval Top: 3864 ft.

 Completed Information for Formation MESAVERDE
1st Production Date:N/AChoke Size:1,264.000 in.
Formation Name:MESAVERDECommingled:
Production Method:
Open Hole Completion:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation MVRD.
No Perforation Data was found for formation MVRD.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY06/18/1996
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
February 2025 - January 2026i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
