COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-06789		Well Classification: GW Status: PR - 10/3/1995
Well Name/No:FEDERAL #GR 1-3 SH
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:12612
Facility Status:PRStatus Date10/3/1995
FacilityID:211031LocationID:334812
County:GARFIELD #045Location:NESW 3 7S96W 6
Field:GRAND VALLEY - #31290Elevation:5661 ft.
Basin:PICEANCE BASIN
Planned Location:2300FSL  2350 FWLLat/Long: 39.465019 / -108.096586Lat/Long Source: Calculated From Footages
As Drilled Location:2386 FSL  2337 FWLLat/Long: 39.465335 / -108.096558Lat/Long Source: Calculated From Footages
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 10/3/1995             Measured TD: 7167 ft.    Vertical TD: 6727 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 10/3/1995
Wellbore PermitDIRECTIONAL
Permit #:930498 Expiration Date:8/31/1993
Proposed Depth/Form:
Surface Mineral Owner Same:Not available
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: WFCM , Formation: WILLIAMS FORK - CAMEO , Order: 0 , Unit Acreage: 320, Drill Unit: S2
Wellbore Completed
Completion Date:10/30/1995
Spud Date:5/14/1993Spud Date Is:ACTUAL
Measured TD:7167 ft.Measured PB depth:0 ft.
True Vertical TD:6727 ft.True Vertical PB depth:

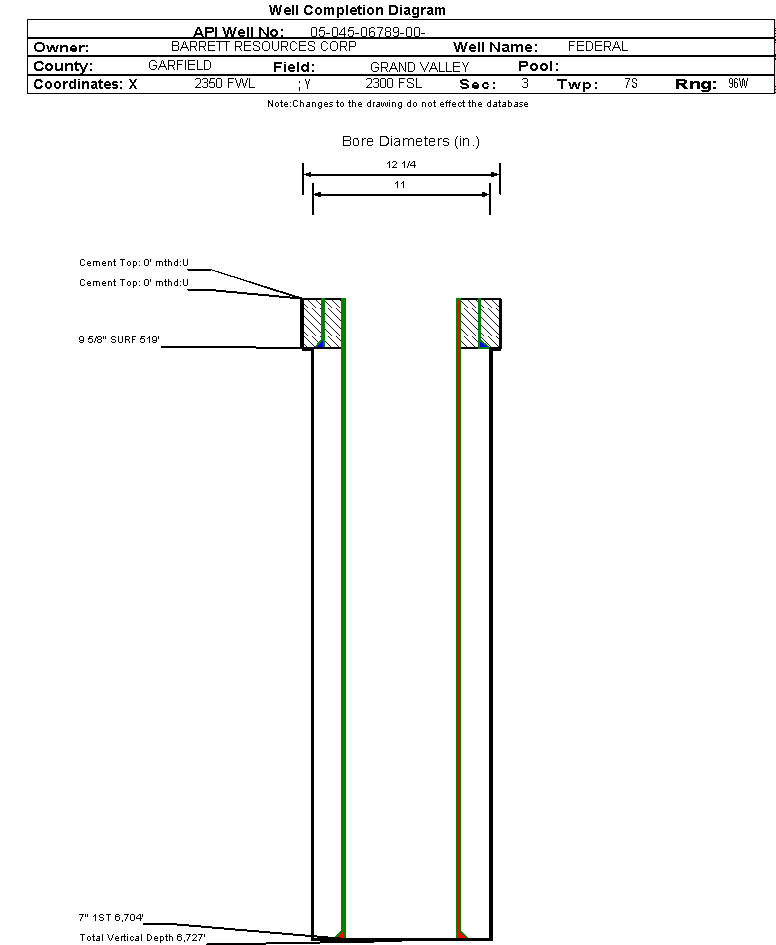

Casing:String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 519 ft., Weight: , Citings Type: HISTORICAL
Cement:Sacks: 275, Top: 0 ft., Bottom: , Determination Method:
Casing:String Type: 1ST, Hole Size: , Size: 7 in., Top: 0 ft., Depth: 6704 ft., Weight: , Citings Type: HISTORICAL
Cement:Sacks: 0, Top: 0 ft., Bottom: , Determination Method:
FormationInterval TopLog BottomCoredDSTs
FORT UNION2090 ft.
MESAVERDE3404 ft.
CAMEO COAL5957 ft.
ROLLINS6443 ft.
COZZETTE6817 ft.

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 11/6/1995

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:10/30/1995Choke Size:
Formation Name:WILLIAMS FORK - CAMEOCommingled:
Production Method:
Open Hole Completion:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation WFCM.
No Perforation Data was found for formation WFCM.

Formation WMFK                     Formation Classification:  GW                     Status:  CM - 10/3/1995

 Completed Information for Formation WILLIAMS FORK
1st Production Date:N/AChoke Size:0.000 in.
Formation Name:WILLIAMS FORKCommingled:
Production Method:
Open Hole Completion:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation WMFK.
No Perforation Data was found for formation WMFK.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)12
Total Gas Produced (MCF)9513
GOR792750
GOR DeterminationMCFE
Average BOE per Day4.531
Average MCFE per Day26.256

 Federal Financial Assurance  i Y

 Tribal Well  i No
