COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITGIS Map GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-06788		Well Classification: GW Status: PR - 9/15/1993
Well Name/No:OXY USA INC #MV 32-4
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:13003
Facility Status:PRStatus Date9/15/1993
FacilityID:211030LocationID:334843
County:GARFIELD #045Location:SESW 4 7S96W 6
Field:GRAND VALLEY - #31290Elevation:5960 ft.
Basin:PICEANCE BASIN
Planned Location:966FSL  1536 FWLLat/Long: 39.461269 / -108.116976Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.461465 / -108.117049Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 9/15/1993             Measured TD: 6585 ft.    Vertical TD: 0 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 9/15/1993
Wellbore Permit
Permit #:930525 Expiration Date:9/1/1993
Proposed Depth/Form:
Surface Mineral Owner Same:Not available
Mineral Owner:FEDERALSurface Owner:Not available
Unit: Unit Number:C-24603
Formation And Spacing:Code: WFCM , Formation: WILLIAMS FORK - CAMEO , Order: 0 , Unit Acreage: 320, Drill Unit: S2
Wellbore Completed
Completion Date:9/15/1993
Measured TD:6585 ft.Measured PB depth:0 ft.
True Vertical TD:0 ft.True Vertical PB depth:

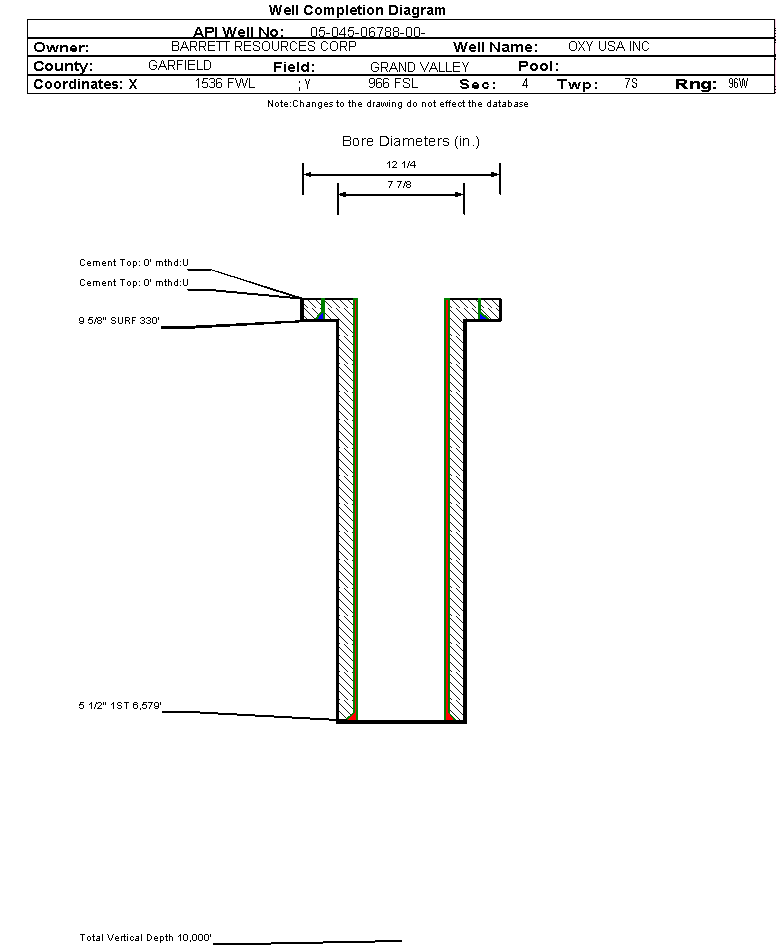

Casing:String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 330 ft., Weight: , Citings Type: HISTORICAL
Cement:Sacks: 120, Top: 0 ft., Bottom: , Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 6579 ft., Weight: , Citings Type: HISTORICAL
Cement:Sacks: 0, Top: 0 ft., Bottom: , Determination Method:
FormationInterval TopLog BottomCoredDSTs
FORT UNION2270 ft.
MESAVERDE3561 ft.
CAMEO5972 ft.
ROLLINS6452 ft.

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 9/26/1993

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:9/15/1993Choke Size:0.000 in.
Formation Name:WILLIAMS FORK - CAMEOCommingled:
Production Method:
Open Hole Completion:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation WFCM.
No Perforation Data was found for formation WFCM.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
December 2024 - November 2025i
Total Oil Produced (Barrels)19
Total Gas Produced (MCF)15742
GOR828526
GOR DeterminationMCFE
Average BOE per Day7.484
Average MCFE per Day43.417

 Federal Financial Assurance  i Y

 Tribal Well  i No
