COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-06785		Well Classification: GW Status: PR - 9/11/1994
Well Name/No:OXY USA INC #MV 39-3
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:13068
Facility Status:PRStatus Date9/11/1994
FacilityID:211027LocationID:334817
County:GARFIELD #045Location:SESW 3 7S96W 6
Field:GRAND VALLEY - #31290Elevation:5882 ft.
Basin:PICEANCE BASIN
Planned Location:898FSL  1676 FWLLat/Long: 39.461169 / -108.099456Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.461247 / -108.099335Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 9/11/1994             Measured TD: 6640 ft.    Vertical TD: 0 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 9/11/1994
Wellbore Permit
Permit #:940498 Expiration Date:10/19/1994
Proposed Depth/Form:
Surface Mineral Owner Same:Not available
Mineral Owner:FEDERALSurface Owner:Not available
Unit: Unit Number:C-24603
Formation And Spacing:Code: WFCM , Formation: WILLIAMS FORK - CAMEO , Order: 0 , Unit Acreage: 320, Drill Unit: S2
Wellbore Completed
Completion Date:9/7/1994
Measured TD:6640 ft.Measured PB depth:0 ft.
True Vertical TD:0 ft.True Vertical PB depth:

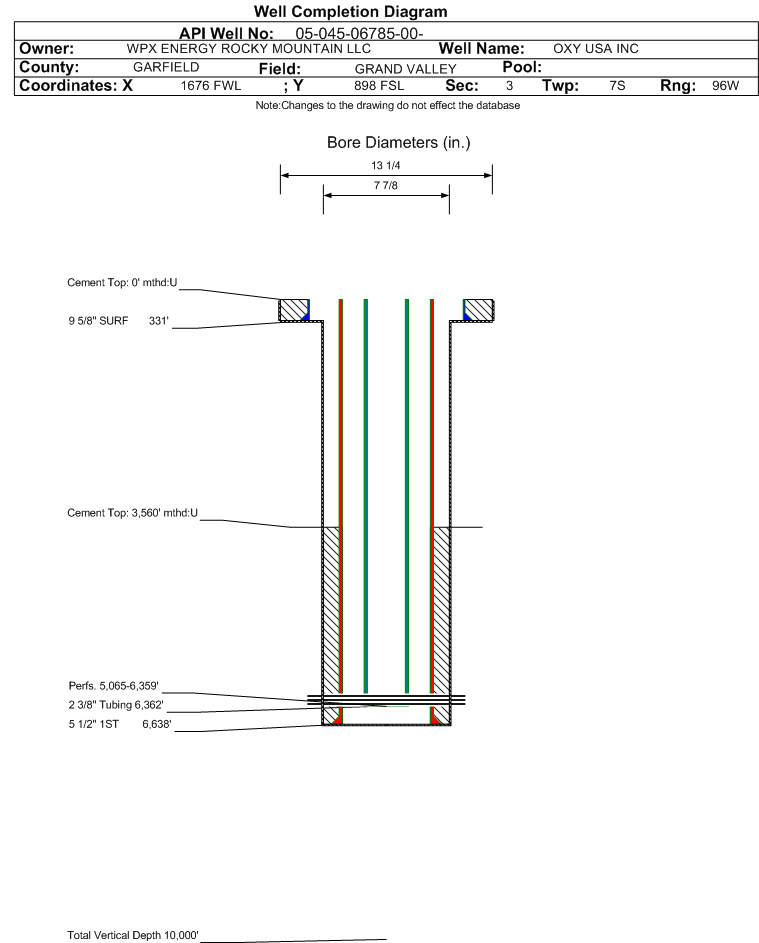

Casing:String Type: SURF, Hole Size: 13.25 in., Size: 9.625 in., Top: 0 ft., Depth: 331 ft., Weight: 36 , Citings Type: ACTUAL
Cement:Sacks: 150, Top: 0 ft., Bottom: , Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 6638 ft., Weight: 17 , Citings Type: ACTUAL
Cement:Sacks: 941, Top: 3560 ft., Bottom: 6638 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
FORT UNION2250 ft.
MESAVERDE3590 ft.
CAMEO COAL6030 ft.

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 9/11/1994                 Interval Top: 5065 ft.    Interval Bottom: 6359 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:9/7/1994Choke Size:0.000 in.
Formation Name:WILLIAMS FORK - CAMEOCommingled:
Production Method:
Open Hole Completion:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:9/7/1994Test Method:FLOWING
Hours Tested:Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_OIL 2
MCF_GAS 1480
Perforation Data:
Interval Top:5065 ft.# Of Holes:54
Interval Bottom:6359 ft.Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)11
Total Gas Produced (MCF)8876
GOR806909
GOR DeterminationMCFE
Average BOE per Day4.224
Average MCFE per Day24.498

 Federal Financial Assurance  i Y

 Tribal Well  i No
