COGIS - WELL SCOUT CARD

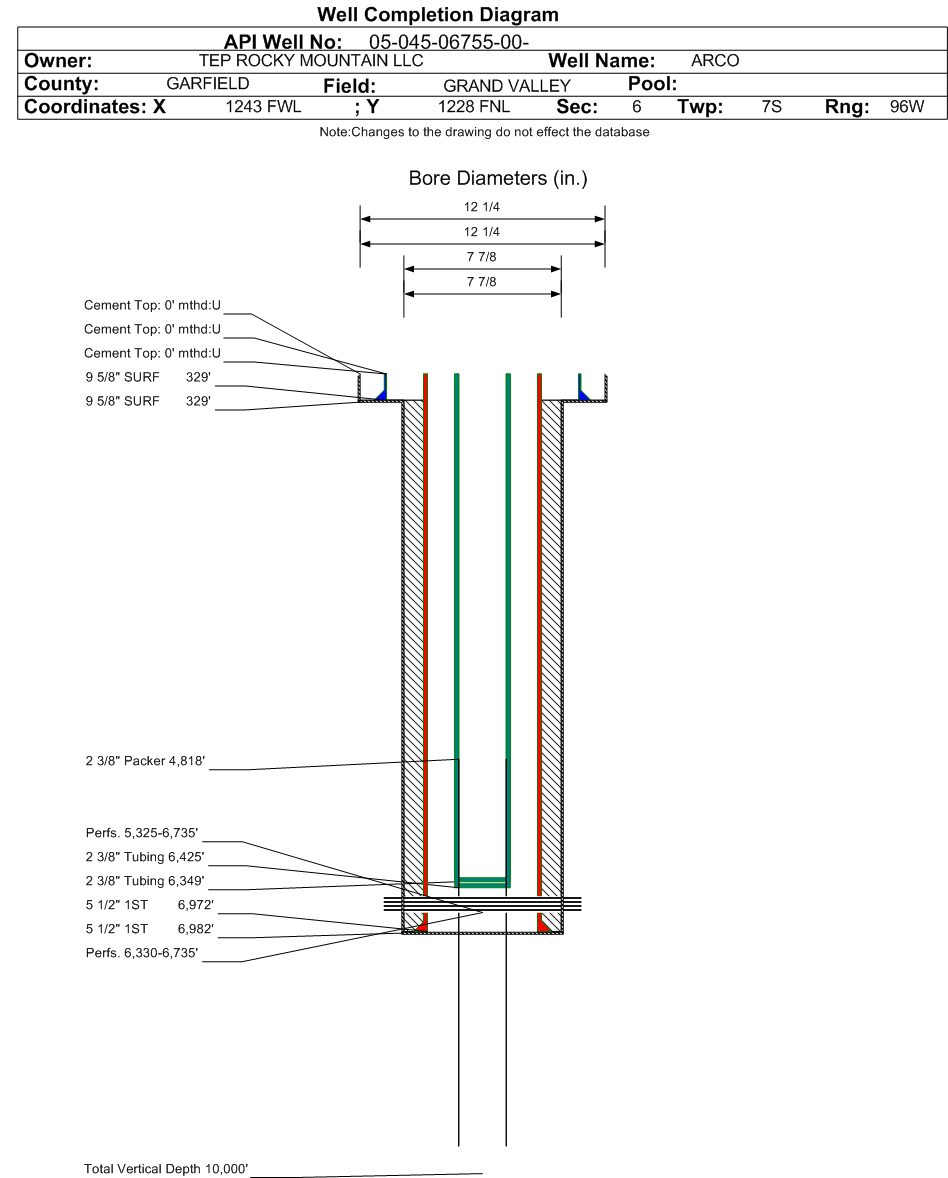

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-06755		Well Classification: GW Status: PR - 10/25/2005
Well Name/No:ARCO #MV 17-6
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:12777
Facility Status:PRStatus Date10/25/2005
FacilityID:210997LocationID:334811
County:GARFIELD #045Location:NWNW 6 7S96W 6
Field:GRAND VALLEY - #31290Elevation:6395 ft.
Basin:PICEANCE BASIN
Planned Location:1228FNL  1243 FWLLat/Long: 39.469758 / -108.154788Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.469813 / -108.154333Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 10/25/2005             Measured TD: 6972 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 10/25/2005
Wellbore Permit
Permit #:910422 Expiration Date:9/26/1991
Proposed Depth/Form:
Surface Mineral Owner Same:Not available
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: WFCM , Formation: WILLIAMS FORK - CAMEO , Order: 0 , Unit Acreage: 160, Drill Unit: NW4
Wellbore Completed
Completion Date:8/3/1991
Spud Date:7/15/1991Spud Date Is:Actual
Measured TD:6972 ft.Measured PB depth:6918 ft.
True Vertical TD:True Vertical PB depth:
Log Types:
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 329 ft., Weight: 36 , Citings Type: ACTUAL
Cement:Sacks: 200, Top: 0 ft., Bottom: 329 ft., Determination Method: VISU
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 329 ft., Weight: , Citings Type: HISTORICAL
Cement:Sacks: 200, Top: 0 ft., Bottom: , Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 6972 ft., Weight: 17/23 , Citings Type: ACTUAL
Cement:Sacks: 865, Top: , Bottom: 6972 ft., Determination Method: CBL
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 6982 ft., Weight: , Citings Type: HISTORICAL
Cement:Sacks: 0, Top: 0 ft., Bottom: , Determination Method:
Additional Cement:String Type: 1ST , Top: 2926 ft., Depth: , Bottom: 3399 ft., Sacks: 650, Method: SQUEEZE
FormationInterval TopLog BottomCoredDSTs
WASATCH G2437 ft.NN
FORT UNION2693 ft.NN
MESAVERDE3907 ft.NN
CAMEO6304 ft.NN
CAMEO COAL6304 ft.
ROLLINS6800 ft.NN

Formation CMEOC                   Formation Classification:  GW                   Status:  CM - 9/22/1991                 Interval Top: 6330 ft.    Interval Bottom: 6735 ft.

 Completed Information for Formation CAMEO COAL
1st Production Date:N/AChoke Size:
Formation Name:CAMEO COALCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:9/20/1991
Treatment Summary:1700 GALS 7 1/2% HCL, 40000# 40/70, 448000# 20/40, 46000# WEST PROP, 4760 BBLS GEL (SUMMARY)
Tubing Size:2.375 in.Tubing Setting Depth:6425 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:9/22/1991Test Method:
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
CALC_BBLS_H2O 0
CALC_BBLS_OIL 0
CALC_MCF_GAS 610
CASING_PRESS 1850
TUBING_PRESS 1720
Perforation Data:
Interval Top:6330 ft.# Of Holes:36
Interval Bottom:6735 ft.Hole Size:0.38 in.

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 10/25/2005                Interval Top: 5325 ft.    Interval Bottom: 6735 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:N/AChoke Size:
Formation Name:WILLIAMS FORK - CAMEOCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:9/20/1991
Treatment Summary:2950 GALS 7 1/2% HCL, 40000# 40/70, 448000# 20/40, 46000# WEST PROP, 317000# 16/30, 7892 BBLS GEL (SUMMARY)
Tubing Size:2.375 in.Tubing Setting Depth:6349 ft.
Tubing Packer Depth:4838 ft.Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:10/25/2005Test Method:
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
CALC_MCF_GAS 361
CASING_PRESS 97
TUBING_PRESS 478
Perforation Data:
Interval Top:5325 ft.# Of Holes:66
Interval Bottom:6735 ft.Hole Size:0.38 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)13
Total Gas Produced (MCF)8586
GOR660461
GOR DeterminationMCFE
Average BOE per Day4.093
Average MCFE per Day23.737

 Federal Financial Assurance  i

 Tribal Well  i No
