COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-06749		Well Classification: GW Status: PR - 8/1/2017
Well Name/No:FEDERAL #MV 34-5
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:12891
Facility Status:PRStatus Date8/1/2017
FacilityID:210991LocationID:334816
County:GARFIELD #045Location:SESE 5 7S96W 6
Field:GRAND VALLEY - #31290Elevation:5980 ft.
Basin:PICEANCE BASIN
Planned Location:730FSL  893 FELLat/Long: 39.460968 / -108.125567Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.461086 / -108.125486Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 8/1/2017             Measured TD: 6630 ft.    Vertical TD: 0 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 8/1/2017
Wellbore Permit
Permit #:910370 Expiration Date:9/13/1991
Proposed Depth/Form:
Surface Mineral Owner Same:Not available
Mineral Owner:FEDERALSurface Owner:Not available
Unit: Unit Number:C24603
Formation And Spacing:Code: WFCM , Formation: WILLIAMS FORK - CAMEO , Order: 0 , Unit Acreage: 160, Drill Unit: SE4
Wellbore Completed
Completion Date:10/3/1991
Spud Date:8/19/1991Spud Date Is:ACTUAL
Measured TD:6630 ft.Measured PB depth:0 ft.
True Vertical TD:0 ft.True Vertical PB depth:

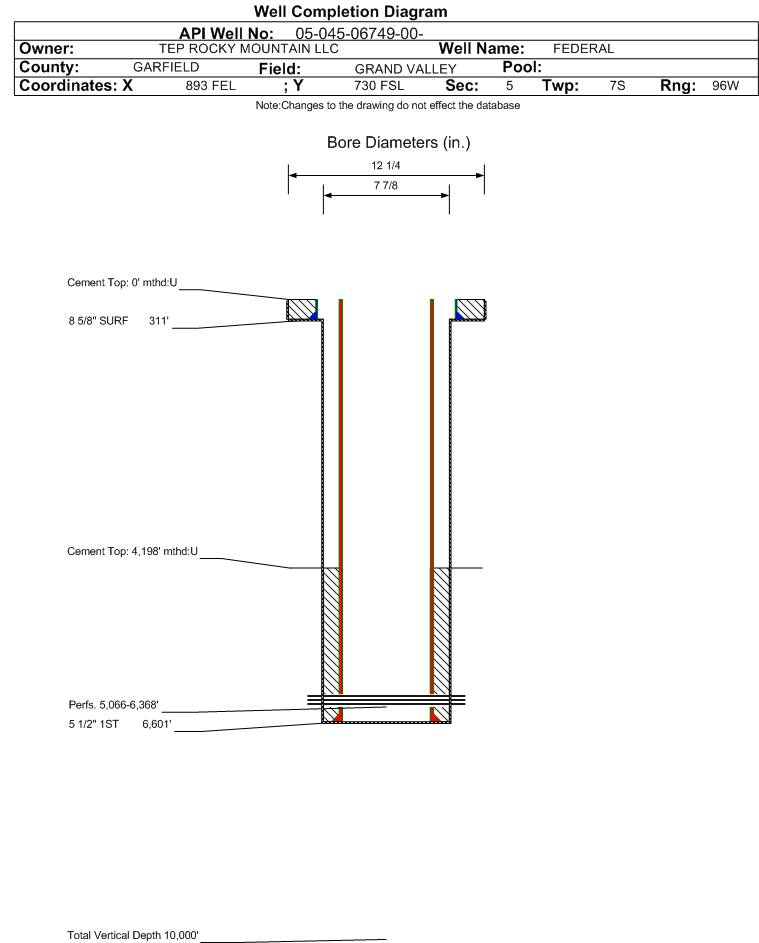

Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 311 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 225, Top: 0 ft., Bottom: 311 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 6601 ft., Weight: 17 , Citings Type: ACTUAL
Cement:Sacks: 985, Top: 4198 ft., Bottom: 6601 ft., Determination Method: CALC
FormationInterval TopLog BottomCoredDSTs
WASATCH G2012 ft.
MESAVERDE3508 ft.
CAMEO COAL5978 ft.
ROLLINS6456 ft.

Formation MVRD                     Formation Classification:  GW                     Status:  CM - 10/5/1991                 Interval Top: 5066 ft.    Interval Bottom: 6368 ft.

 Completed Information for Formation MESAVERDE
1st Production Date:N/AChoke Size:0.000 in.
Formation Name:MESAVERDECommingled:
Production Method:
Open Hole Completion:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:10/3/1991Test Method:FLOWING
Hours Tested:Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 2
CASING_PRESS 1600
MCF_GAS 720
TUBING_PRESS 1540
Perforation Data:
Interval Top:5066 ft.# Of Holes:70
Interval Bottom:6368 ft.Hole Size:0.38 in.

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 8/1/2017

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:10/3/1991Choke Size:
Formation Name:WILLIAMS FORK - CAMEOCommingled:
Production Method:
Open Hole Completion:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation WFCM.
No Perforation Data was found for formation WFCM.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)15
Total Gas Produced (MCF)8907
GOR593800
GOR DeterminationMCFE
Average BOE per Day4.252
Average MCFE per Day24.648

 Federal Financial Assurance  i Y

 Tribal Well  i No
