COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-06732		Well Classification: CBM Status: PR - 12/28/1990
Well Name/No:DOE FED #9-17 MV
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:13028
Facility Status:PRStatus Date12/28/1990
FacilityID:210974LocationID:335134
County:GARFIELD #045Location:NESE 17 6S94W 6
Field:RULISON - #75400Elevation:5488 ft.
Basin:PICEANCE BASIN
Planned Location:1665FSL  992 FELLat/Long: 39.522469 / -107.906381Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.522550 / -107.906086Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: CBM             Status: PR - 12/28/1990             Measured TD: 8120 ft.    Vertical TD: 0 ft.

 Wellbore Data for Original WellboreWellbore Classification: CBM        PR - 12/28/1990
Wellbore Permit
Permit #:901247 Expiration Date:2/22/1991
Proposed Depth/Form:
Surface Mineral Owner Same:Not available
Mineral Owner:FEDERALSurface Owner:Not available
Unit: Unit Number:COC-27867
Formation And Spacing:Code: WFCM , Formation: WILLIAMS FORK - CAMEO , Order: 139-15 , Unit Acreage: 320, Drill Unit: E2
Wellbore Completed
Completion Date:12/31/1990
Measured TD:8120 ft.Measured PB depth:7982 ft.
True Vertical TD:0 ft.True Vertical PB depth:

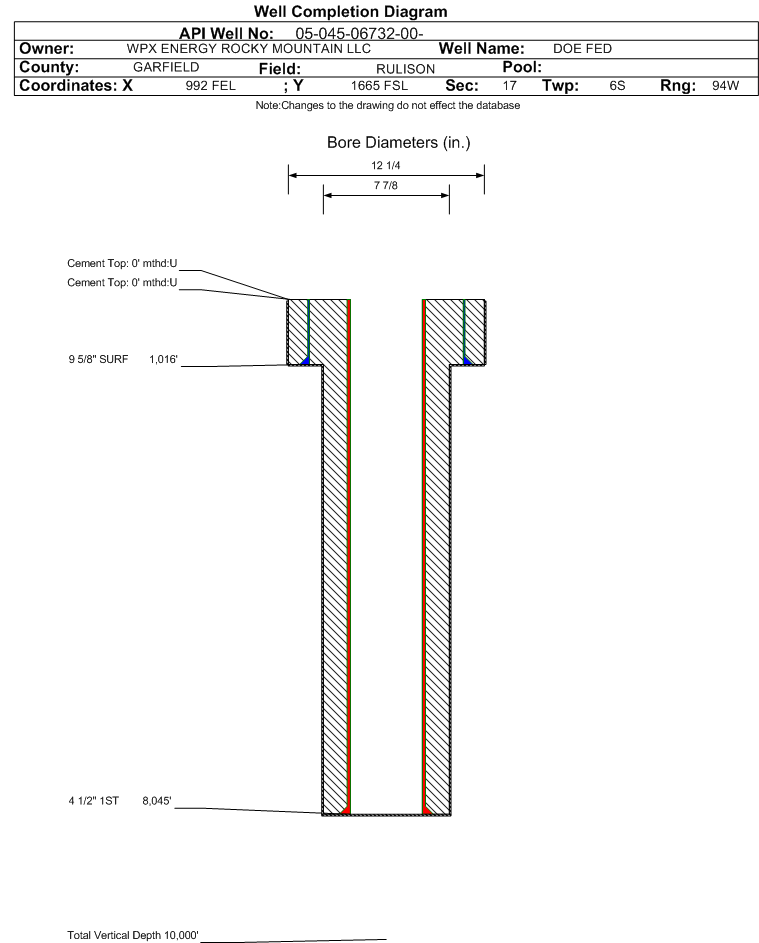

Casing:String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 1016 ft., Weight: , Citings Type: HISTORICAL
Cement:Sacks: 110, Top: 0 ft., Bottom: , Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 8045 ft., Weight: , Citings Type: HISTORICAL
Cement:Sacks: 0, Top: 0 ft., Bottom: , Determination Method:
FormationInterval TopLog BottomCoredDSTs
WASATCH0 ft.
MESAVERDE4398 ft.
CAMEO COAL7150 ft.
ROLLINS8050 ft.

Formation CMEOC                   Formation Classification:  GW                   Status:  CM - 12/28/1990                Interval Top: 7150 ft.

 Completed Information for Formation CAMEO COAL
1st Production Date:10/10/1991Choke Size:1,264.000 in.
Formation Name:CAMEO COALCommingled:
Production Method:
Open Hole Completion:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation CMEOC.
No Perforation Data was found for formation CMEOC.

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 12/28/1990

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:N/AChoke Size:
Formation Name:WILLIAMS FORK - CAMEOCommingled:
Production Method:
Open Hole Completion:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation WFCM.
No Perforation Data was found for formation WFCM.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)32
Total Gas Produced (MCF)15744
GOR492000
GOR DeterminationMCFE
Average BOE per Day7.505
Average MCFE per Day43.535

 Federal Financial Assurance  i Y

 Tribal Well  i No
