Facility Detail

COGIS - WELL SCOUT CARD

Related Insp MIT GIS Doc COA Wellbore Orders Bradenhead
Surface Location API# 05-045-06730		Well Classification: GW	Status: PR - 5/22/2001
Well Name/No:	EXXON #GV 33-22 (Click Well Name for Production Data)	Click Here for Transporter Gatherer Info
Operator:	TEP ROCKY MOUNTAIN LLC - 96850 (Click Operator Name for Company Detail Report)	Federal Or State Lease #:	12838
Facility Status:	PR	Status Date	5/22/2001
FacilityID:	210972	LocationID:	334730
County:	GARFIELD #045	Location:	SWSE 22 7S96W 6
Field:	GRAND VALLEY - #31290	Elevation:	5112 ft.
Basin:	PICEANCE BASIN
Planned Location:	601FSL 1545 FEL	Lat/Long: 39.417449 / -108.092475	Lat/Long Source: Calculated From Footages
As Drilled Location:	Footages Not Available	Lat/Long: 39.417646 / -108.092622	Lat/Long Source: Field Measured


Wellbore And Formation Details -- select either a wellbore Or formation to expand.

Wellbore #00 Wellbore Classification: GW Status: PR - 5/22/2001 Measured TD: 5365 ft.

Wellbore Data for Original Wellbore		Wellbore Classification: GW PR - 5/22/2001
Wellbore Permit
Permit #:	901212	Expiration Date:	2/15/1991
Proposed Depth/Form:
Surface Mineral Owner Same:	Not available
Mineral Owner:	FEE	Surface Owner:	Not available
Unit:		Unit Number:
Formation And Spacing:	Code: WFCM , Formation: WILLIAMS FORK - CAMEO , Order: 0 , Unit Acreage: , Drill Unit:

Wellbore Completed
Completion Date:	N/A
Spud Date:	11/3/1990	Spud Date Is:	ACTUAL
Measured TD:	5365 ft.	Measured PB depth:	5224 ft.
True Vertical TD:		True Vertical PB depth:
Log Types:

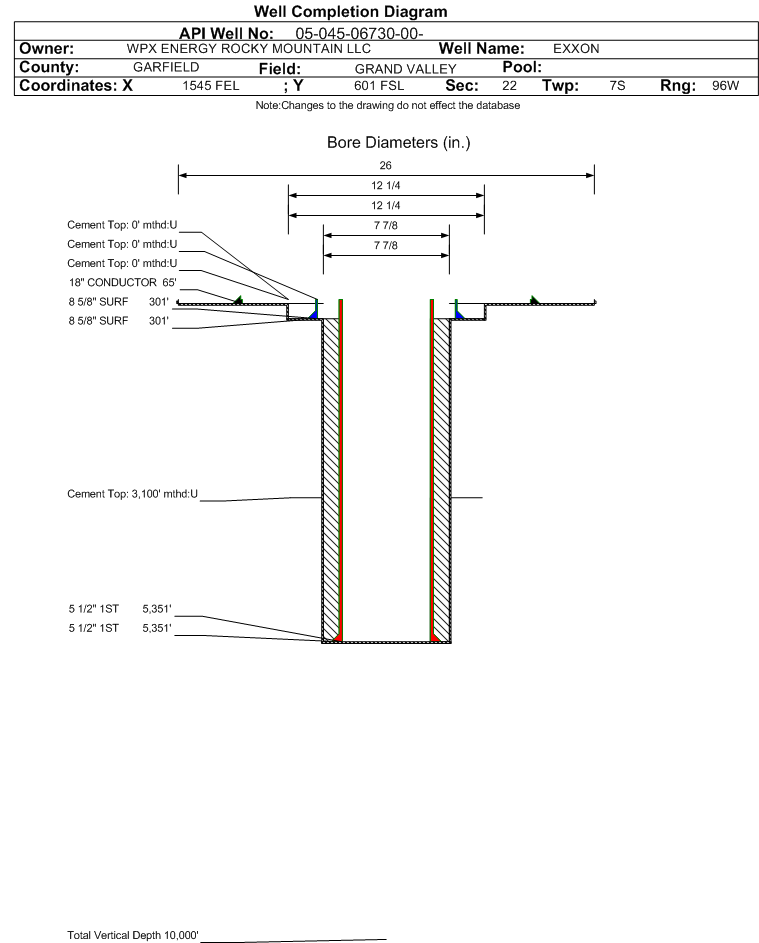

Casing:	String Type: CONDUCTOR, Hole Size: 26 in., Size: 18 in., Top: 0 ft., Depth: 65 ft., Weight: 48 , Citings Type: ACTUAL
Cement:	Sacks: , Top: 0 ft., Bottom: 65 ft., Determination Method: VISU
Casing:	String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 301 ft., Weight: 24 , Citings Type: ACTUAL
Cement:	Sacks: 200, Top: 0 ft., Bottom: 301 ft., Determination Method: VISU
Casing:	String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 301 ft., Weight: , Citings Type: HISTORICAL
Cement:	Sacks: 200, Top: 0 ft., Bottom: , Determination Method:
Casing:	String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 5351 ft., Weight: 17 , Citings Type: ACTUAL
Cement:	Sacks: 500, Top: 3100 ft., Bottom: 5351 ft., Determination Method: CBL
Casing:	String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 5351 ft., Weight: , Citings Type: HISTORICAL
Cement:	Sacks: 0, Top: 0 ft., Bottom: , Determination Method:
Additional Cement:	String Type: 1ST , Top: 2450 ft., Depth: 2821 ft., Bottom: 2763 ft., Sacks: 140, Method: RETAINER
Additional Cement:	String Type: 1ST , Top: 2070 ft., Depth: 2821 ft., Bottom: 2178 ft., Sacks: 50, Method: SQUEEZE
Additional Cement:	String Type: 1ST , Top: , Depth: 2708 ft., Bottom: , Sacks: , Method: RETAINER
Formation	Interval Top	Log Bottom	Cored	DSTs
MESAVERDE	2288 ft.
CAMEO COAL	4681 ft.
ROLLINS	5107 ft.

Formation WFCM Formation Classification: GW Status: PR - 5/22/2001

Completed Information for Formation WILLIAMS FORK - CAMEO

1st Production Date:	N/A	Choke Size:	0.000 in.
Formation Name:	WILLIAMS FORK - CAMEO	Commingled:
Production Method:
Open Hole Completion:

Tubing Size:		Tubing Setting Depth:
Tubing Packer Depth:		Tubing Multiple Packer:
Open Hole Top:		Open Hole Bottom:
No Initial Test Data was found for formation WFCM.

No Perforation Data was found for formation WFCM.

All Designations		Date
Primary Well Designation: None i
Reported Plugged	N
Out Of Service Repurposed	N
Out Of Service	N
Inactive Exception	N
Noticed Inactive	N
Defined Inactive	N
Low Producing	N

December 2024 - November 2025	i
BOE/MCFE/GOR Calculations Production for Previous 12 Months
Total Oil Produced (Barrels)	12
Total Gas Produced (MCF)	11523
GOR	960250
GOR Determination	MCFE
Average BOE per Day	5.481
Average MCFE per Day	31.775

Federal Financial Assurance

Tribal Well
