COGIS - WELL SCOUT CARD

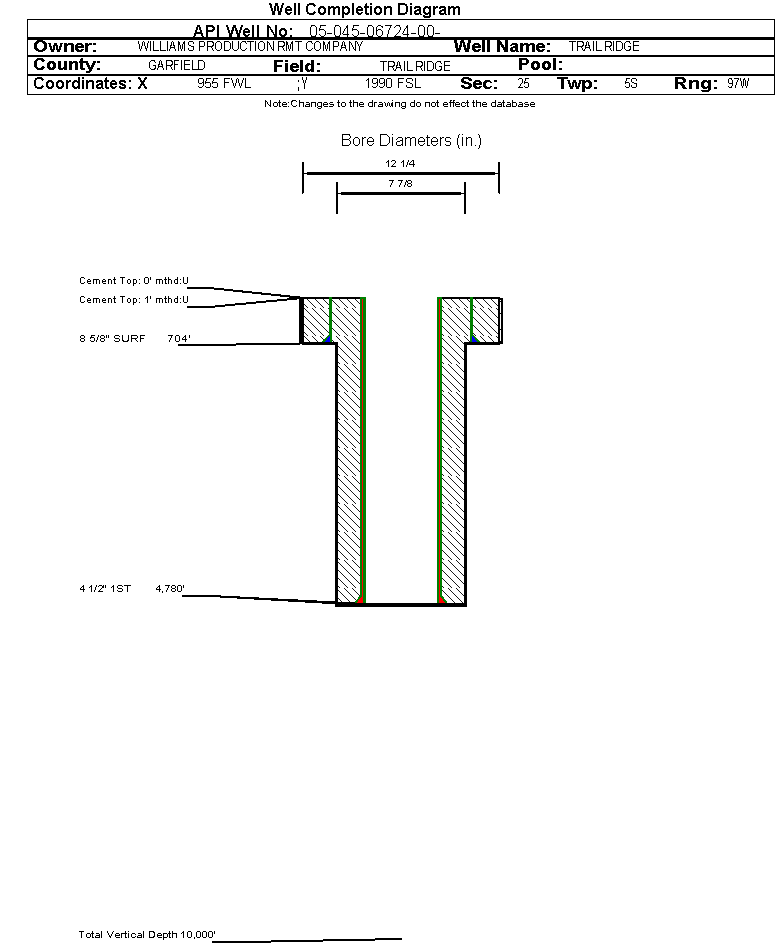

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITGIS Map GISOld GIS Map Old GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-06724		Well Classification: GW Status: PR - 5/1/2019
Well Name/No:TRAIL RIDGE #5-25
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:13255
Facility Status:PRStatus Date5/1/2019
FacilityID:210966LocationID:323845
County:GARFIELD #045Location:NWSW 25 5S97W 6
Field:TRAIL RIDGE - #83825Elevation:8475 ft.
Basin:PICEANCE BASIN
Planned Location:1990FSL  955 FWLLat/Long: 39.582726 / -108.232841Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.582870 / -108.232822Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 5/1/2019             Measured TD: 4805 ft.    Vertical TD: 0 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 5/1/2019
Wellbore Permit
Permit #:901070 Expiration Date:1/16/1991
Proposed Depth/Form:
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: WSTC , Formation: WASATCH , Order: 0 , Unit Acreage: 320, Drill Unit: S2
Wellbore Completed
Completion Date:11/6/1990
Measured TD:4805 ft.Measured PB depth:4680 ft.
True Vertical TD:0 ft.True Vertical PB depth:
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 704 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 350, Top: 0 ft., Bottom: 704 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 4781 ft., Weight: 10.5 , Citings Type: ACTUAL
Cement:Sacks: 115, Top: 3500 ft., Bottom: 4781 ft., Determination Method: CALC

Formation WSTC                     Formation Classification:  GW                     Status:  PR - 5/1/2019                  Interval Top: 4606 ft.    Interval Bottom: 4686 ft.

 Completed Information for Formation WASATCH
1st Production Date:N/AChoke Size:0.000 in.
Formation Name:WASATCHCommingled:
Production Method:
Open Hole Completion:
Tubing Size:2.375 in.Tubing Setting Depth:4520 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation WSTC.
Perforation Data:
Interval Top:4606 ft.# Of Holes:
Interval Bottom:4686 ft.Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
February 2025 - January 2026i
Total Oil Produced (Barrels)22
Total Gas Produced (MCF)16950
GOR770454
GOR DeterminationMCFE
Average BOE per Day8.082
Average MCFE per Day46.874

 Federal Financial Assurance  i

 Tribal Well  i No
