COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITGIS Map GISOld GIS Map Old GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-06721		Well Classification: GW Status: PR - 12/22/1993
Well Name/No:WINCH #GV 9-33
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:12858
Facility Status:PRStatus Date12/22/1993
FacilityID:210963LocationID:311599
County:GARFIELD #045Location:SENE 33 6S94W 6
Field:RULISON - #75400Elevation:5320 ft.
Basin:PICEANCE BASIN
Planned Location:1400FNL  1100 FELLat/Long: 39.485190 / -107.887220Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.485279 / -107.887346Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 12/22/1993             Measured TD: 8450 ft.    Vertical TD: 0 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 12/22/1993
Wellbore Permit
Permit #:901022 Expiration Date:1/9/1991
Proposed Depth/Form:
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 0 , Unit Acreage: 320, Drill Unit: E2
Wellbore Completed
Completion Date:4/12/1991
Measured TD:8450 ft.Measured PB depth:8320 ft.
True Vertical TD:0 ft.True Vertical PB depth:

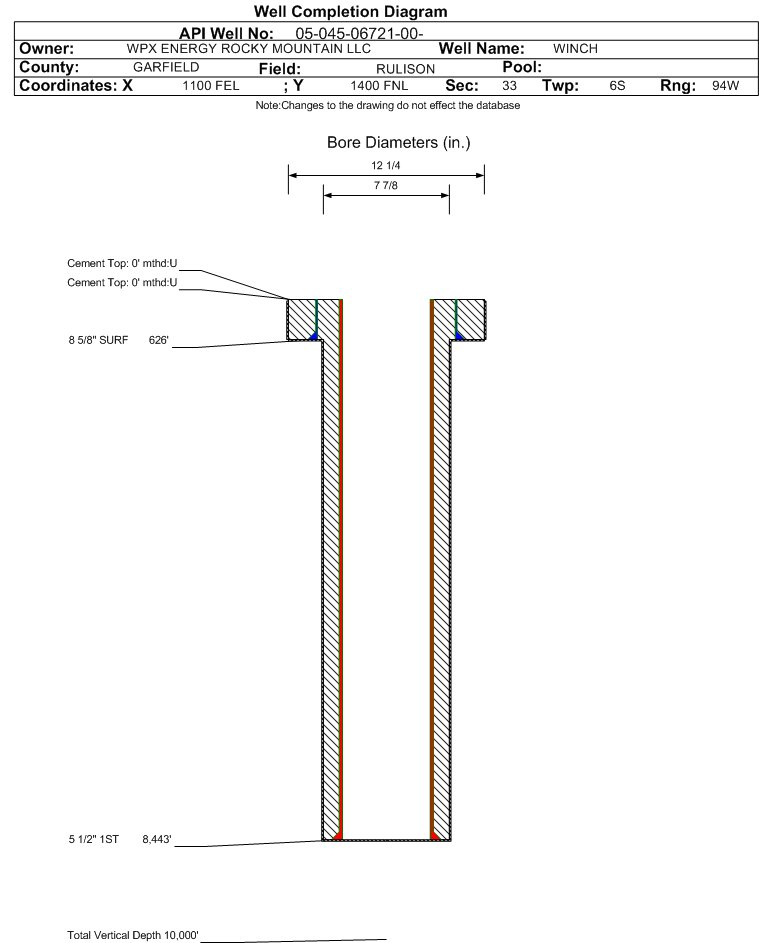

Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 626 ft., Weight: , Citings Type: HISTORICAL
Cement:Sacks: 230, Top: 0 ft., Bottom: , Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 8443 ft., Weight: , Citings Type: HISTORICAL
Cement:Sacks: 0, Top: 0 ft., Bottom: , Determination Method:
FormationInterval TopLog BottomCoredDSTs
MESAVERDE3881 ft.
CAMEO COAL6621 ft.
ROLLINS7471 ft.
COZZETTE7817 ft.
CORCORAN8100 ft.

Formation WMFK                     Formation Classification:  GW                     Status:  PR - 1/9/1994

 Completed Information for Formation WILLIAMS FORK
1st Production Date:12/23/1993Choke Size:0.000 in.
Formation Name:WILLIAMS FORKCommingled:
Production Method:
Open Hole Completion:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation WMFK.
No Perforation Data was found for formation WMFK.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
February 2025 - January 2026i
Total Oil Produced (Barrels)28
Total Gas Produced (MCF)15748
GOR562428
GOR DeterminationMCFE
Average BOE per Day7.516
Average MCFE per Day43.589

 Federal Financial Assurance  i

 Tribal Well  i No
