 Surface Location
 API# 05-045-06700		Well Classification: GW Status: PR - 6/13/1991
Well Name/No:GRAND VALLEY RANCH CO #GV 88-1
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:12851
Facility Status:PRStatus Date6/13/1991
FacilityID:210942LocationID:334734
County:GARFIELD #045Location:SWSE 1 7S95W 6
Field:PARACHUTE - #67350Elevation:6247 ft.
Basin:PICEANCE BASIN
Planned Location:1100FSL  1450 FELLat/Long: 39.462750 / -107.942701Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.462917 / -107.942793Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 6/13/1991             Measured TD: 8340 ft.    Vertical TD: 0 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 6/13/1991
Wellbore Permit
Permit #:900779 Expiration Date:11/16/1990
Proposed Depth/Form:
Surface Mineral Owner Same:Not available
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 0 , Unit Acreage: 320, Drill Unit: E2
Wellbore Completed
Completion Date:6/10/1991
Measured TD:8340 ft.Measured PB depth:0 ft.
True Vertical TD:0 ft.True Vertical PB depth:

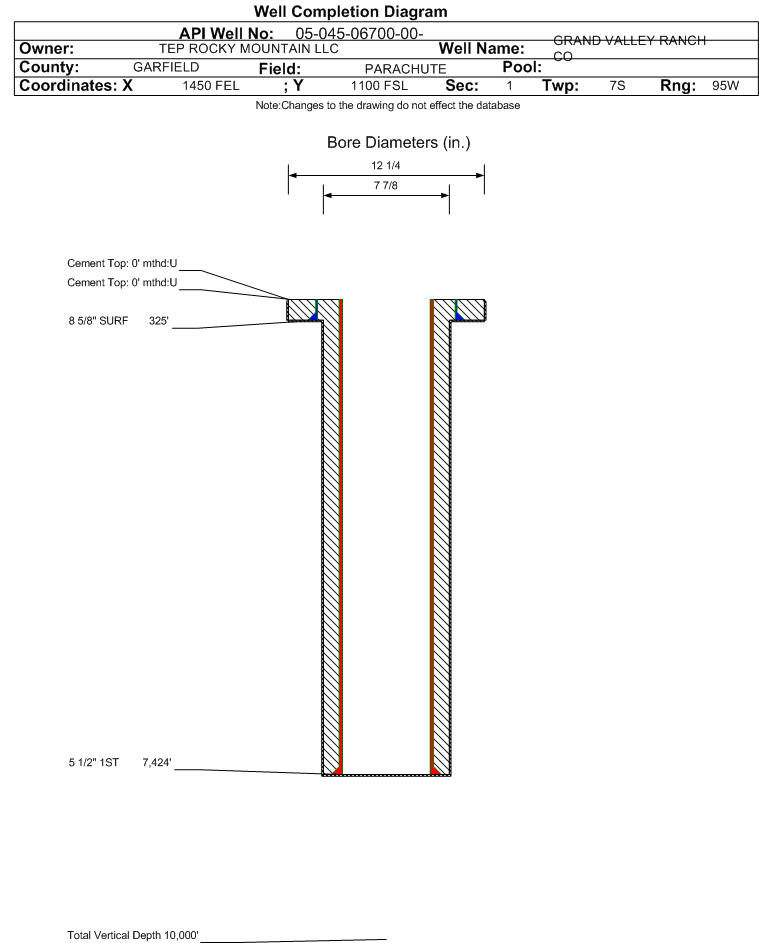

Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 325 ft., Weight: , Citings Type: HISTORICAL
Cement:Sacks: 200, Top: 0 ft., Bottom: , Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 7424 ft., Weight: , Citings Type: HISTORICAL
Cement:Sacks: 0, Top: 0 ft., Bottom: , Determination Method:
FormationInterval TopLog BottomCoredDSTs
MESAVERDE4706 ft.
CAMEO COAL7457 ft.
ROLLINS8142 ft.

Formation WMFK                     Formation Classification:  GW                     Status:  PR - 6/13/1991

 Completed Information for Formation WILLIAMS FORK
1st Production Date:N/AChoke Size:0.000 in.
Formation Name:WILLIAMS FORKCommingled:
Production Method:
Open Hole Completion:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation WMFK.
No Perforation Data was found for formation WMFK.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)11
Total Gas Produced (MCF)5822
GOR529272
GOR DeterminationMCFE
Average BOE per Day2.778
Average MCFE per Day16.134

 Federal Financial Assurance  i

 Tribal Well  i No
