COGIS - WELL SCOUT CARD

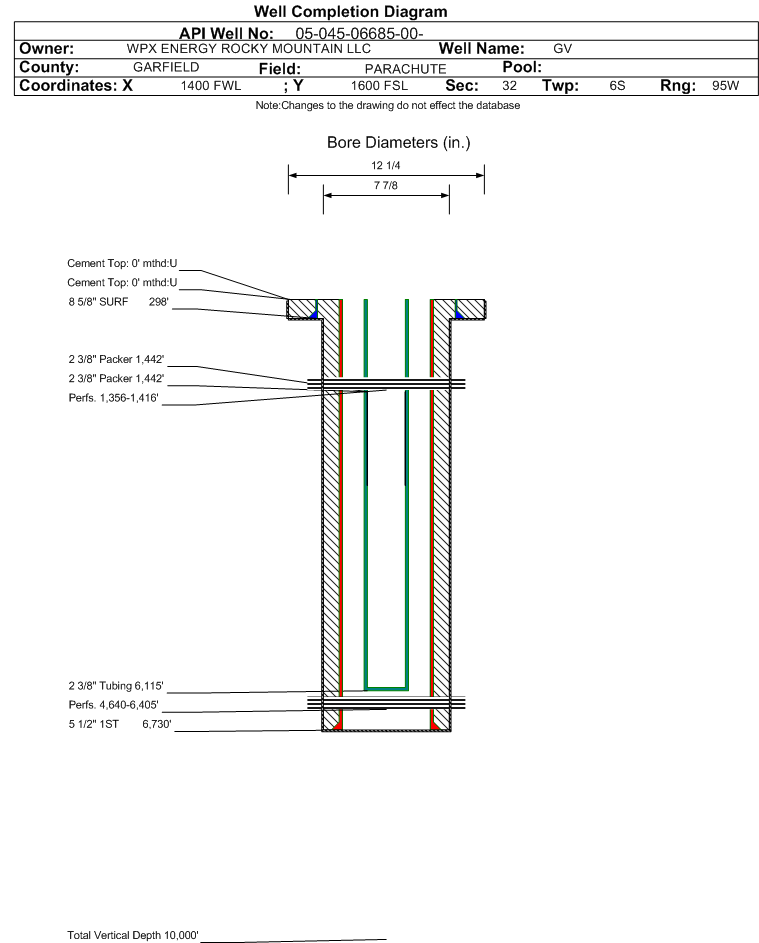

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-06685		Well Classification: GW Status: PR - 2/20/2012
Well Name/No:GV #39-32
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:COC 62739
Facility Status:PRStatus Date2/20/2012
FacilityID:210927LocationID:323835
County:GARFIELD #045Location:NESW 32 6S95W 6
Field:PARACHUTE - #67350Elevation:5183 ft.
Basin:PICEANCE BASIN
Planned Location:1600FSL  1400 FWLLat/Long: 39.478259 / -108.026174Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.478310 / -108.026235Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 2/20/2012             Measured TD: 6750 ft.    Vertical TD: 0 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 2/20/2012
Wellbore Permit
Permit #:20052973 Expiration Date:9/25/2006
Proposed Depth/Form:6750 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: WFCM , Formation: WILLIAMS FORK - CAMEO , Order: 0 , Unit Acreage: 320, Drill Unit: W2
Formation And Spacing:Code: WSTC , Formation: WASATCH , Order: 440-12 , Unit Acreage: 160, Drill Unit: SW4
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: , Depth: 298 ft., Weight: 24 , Citings Type: PLANNED
Cement:Sacks: 200, Top: 7 ft., Bottom: 2980 ft.
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: , Depth: 6730 ft., Weight: 17 , Citings Type: PLANNED
Cement:Sacks: 1270, Top: 2250 ft., Bottom: 6730 ft.
Wellbore Completed
Completion Date:7/24/1990
Measured TD:6750 ft.Measured PB depth:6650 ft.
True Vertical TD:0 ft.True Vertical PB depth:
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 298 ft., Weight: , Citings Type: HISTORICAL
Cement:Sacks: 200, Top: 0 ft., Bottom: , Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 6730 ft., Weight: , Citings Type: HISTORICAL
Cement:Sacks: 0, Top: 0 ft., Bottom: , Determination Method:
FormationInterval TopLog BottomCoredDSTs
FORT UNION1633 ft.
MESAVERDE3370 ft.
CAMEO COAL5998 ft.
ROLLINS6497 ft.

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 2/20/2012                 Interval Top: 4640 ft.    Interval Bottom: 6405 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:12/2/1997Choke Size:
Formation Name:WILLIAMS FORK - CAMEOCommingled:Yes
Production Method:
Open Hole Completion:
Formation Treatment
Treatment Date:12/7/1997
Treatment Summary:3750 GALS ACID, 1115360# SAND, 6283 BBLS GEL (SUMMARY). WFCM RETURNED TO PRODUCTION AFTER WASATCH TEST WAS COMPLETED.
Formation Treatment
Treatment Date:7/24/1990
Treatment Summary:3750 GALS ACID, 1115360# SAND, 6283 BBLS GEL (SUMMARY)
Tubing Size:2.375 in.Tubing Setting Depth:6115 ft.
Tubing Packer Depth:1462 ft.Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:12/7/1997Test Method:FLOWING
Hours Tested:24Gas Type:DRY
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 37
BBLS_OIL 0
BTU_GAS 1063
CALC_BBLS_H2O 37
CALC_BBLS_OIL 0
CALC_MCF_GAS 797
CASING_PRESS 725
MCF_GAS 797
TUBING_PRESS 595
Perforation Data:
Interval Top:4640 ft.# Of Holes:84
Interval Bottom:6405 ft.Hole Size:

Formation WSTC                     Formation Classification:  GW                     Status:  PR - 2/20/2012                 Interval Top: 1356 ft.    Interval Bottom: 1416 ft.

 Completed Information for Formation WASATCH
1st Production Date:12/1/2005Choke Size:
Formation Name:WASATCHCommingled:Yes
Production Method:
Open Hole Completion:
Formation Treatment
Treatment Date:10/28/2005
Treatment Summary:500 GALS 7 1/2% HCL, 164600# 20/40, 565 BBLS 20# DELTA 140
Formation Treatment
Treatment Date:7/24/1990
Treatment Summary:10/28/2005 500 GALS 7 1/2% HCL, 164600# 20/40, 565 BBLS 20# DELTA 140
Tubing Size:2.375 in.Tubing Setting Depth:6115 ft.
Tubing Packer Depth:1462 ft.Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:12/12/2005Test Method:FLOWING
Hours Tested:24Gas Type:DRY
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 0
BBLS_OIL 0
BTU_GAS 1091
CALC_BBLS_H2O 0
CALC_BBLS_OIL 0
CALC_MCF_GAS 146
CASING_PRESS 35
MCF_GAS 146
TUBING_PRESS 0
Perforation Data:
Interval Top:1356 ft.# Of Holes:14
Interval Bottom:1416 ft.Hole Size:0.45 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)14
Total Gas Produced (MCF)9985
GOR713214
GOR DeterminationMCFE
Average BOE per Day4.759
Average MCFE per Day27.605

 Federal Financial Assurance  i

 Tribal Well  i No
