COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-06665		Well Classification: CBM Status: PR - 12/1/2010
Well Name/No:KNIGHT #GV 64-5
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date12/1/2010
FacilityID:210907LocationID:334652
County:GARFIELD #045Location:SENE 5 7S95W 6
Field:PARACHUTE - #67350Elevation:5090 ft.
Basin:PICEANCE BASIN
Planned Location:1906FNL  893 FELLat/Long: 39.468569 / -108.015263Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.468534 / -108.015432Lat/Long Source: Field Measured

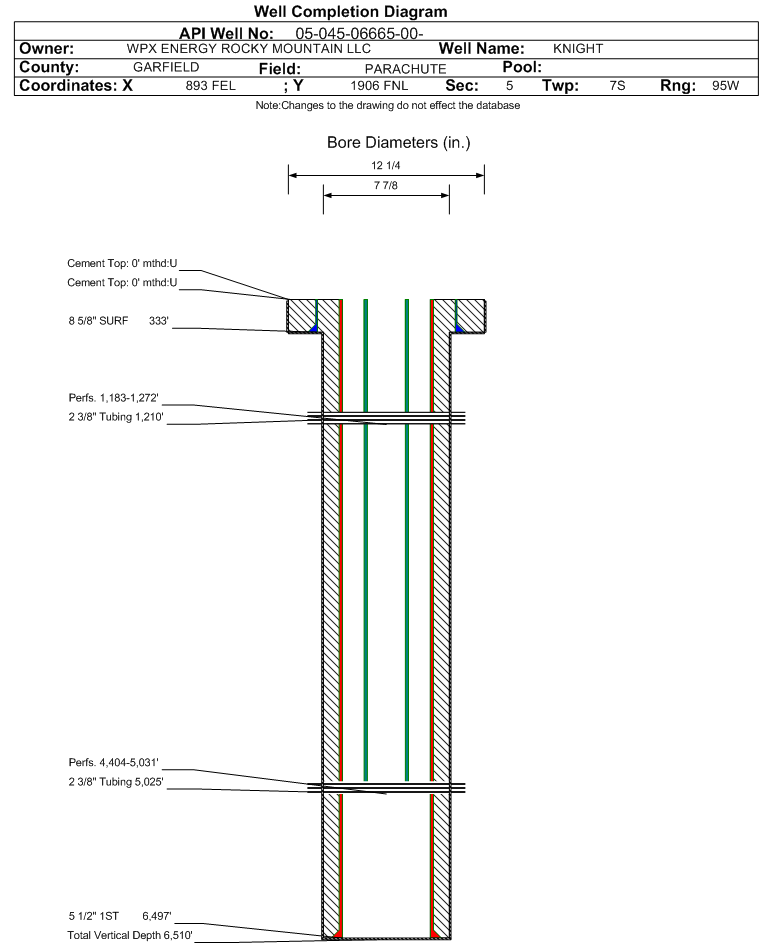

 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: CBM             Status: PR - 12/1/2010             Measured TD: 6510 ft.    Vertical TD: 6510 ft.

 Wellbore Data for Original WellboreWellbore Classification: CBM        PR - 12/1/2010
Wellbore Permit
Permit #:20052971 Expiration Date:9/25/2006
Proposed Depth/Form:6510 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: WFCM , Formation: WILLIAMS FORK - CAMEO , Order: 0 , Unit Acreage: 320, Drill Unit: N2
Formation And Spacing:Code: WSTC , Formation: WASATCH , Order: 440-12 , Unit Acreage: 160, Drill Unit: NE/4
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: , Depth: 333 ft., Weight: 24 , Citings Type: PLANNED
Cement:Sacks: 200, Top: 0 ft., Bottom: 333 ft.
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: , Depth: 6498 ft., Weight: 17 , Citings Type: PLANNED
Cement:Sacks: 1250, Top: 3550 ft., Bottom: 6498 ft.
Wellbore Completed
Completion Date:7/11/1990
Measured TD:6510 ft.Measured PB depth:6413 ft.
True Vertical TD:6510 ft.True Vertical PB depth:
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 333 ft., Weight: , Citings Type: HISTORICAL
Cement:Sacks: 0, Top: 0 ft., Bottom: , Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 6497 ft., Weight: , Citings Type: HISTORICAL
Cement:Sacks: 0, Top: 0 ft., Bottom: , Determination Method:
FormationInterval TopLog BottomCoredDSTs
WASATCH0 ft.
FORT UNION1457 ft.
MESAVERDE3099 ft.
CAMEO COAL5757 ft.
ROLLINS6294 ft.

Formation CMEOC                   Formation Classification:  GW                   Status:  CM - 7/23/1990                 Interval Top: 5757 ft.

 Completed Information for Formation CAMEO COAL
1st Production Date:N/AChoke Size:0.000 in.
Formation Name:CAMEO COALCommingled:
Production Method:
Open Hole Completion:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation CMEOC.
No Perforation Data was found for formation CMEOC.

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 12/1/2010                 Interval Top: 4404 ft.    Interval Bottom: 5031 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:N/AChoke Size:
Formation Name:WILLIAMS FORK - CAMEOCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:1/6/2006
Treatment Summary:2000 7 1/2% HCL, 697,260# 20/40 SAND, 4372 BBLS GEL (SUMMARY).
Tubing Size:2.375 in.Tubing Setting Depth:5025 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:7/5/1998Test Method:FLOWING
Hours Tested:24Gas Type:DRY
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 20
BBLS_OIL 0
CALC_GOR 0
CALC_MCF_GAS 223
CASING_PRESS 635
MCF_GAS 875
TUBING_PRESS 457
Perforation Data:
Interval Top:4404 ft.# Of Holes:48
Interval Bottom:5031 ft.Hole Size:

Formation WSTC                     Formation Classification:  GW                     Status:  SI - 9/1/2025                  Interval Top: 1183 ft.    Interval Bottom: 1272 ft.

 Completed Information for Formation WASATCH
1st Production Date:11/18/2005Choke Size:0.313 in.
Formation Name:WASATCHCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:11/1/2005
Treatment Summary:500 GALS 7 1/2% HCL, 162,900# 20/40, 460 BBLS 20# DELTA 140W PUMPED 419 BBS 4% KCL WATER AND PUMPED 556,400 SFC NITROGEN (SUMMARY).
Tubing Size:2.375 in.Tubing Setting Depth:1210 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:11/22/2005Test Method:FLOWING
Hours Tested:24Gas Type:DRY
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 0
BBLS_OIL 0
CALC_GOR 0
CALC_MCF_GAS 115
CASING_PRESS 137
MCF_GAS 271
TUBING_PRESS 115
Perforation Data:
Interval Top:1183 ft.# Of Holes:14
Interval Bottom:1272 ft.Hole Size:0.43 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)19
Total Gas Produced (MCF)15042
GOR791684
GOR DeterminationMCFE
Average BOE per Day7.154
Average MCFE per Day41.494

 Federal Financial Assurance  i

 Tribal Well  i No
