 Surface Location
 API# 05-045-06658		Well Classification: GW Status: PR - 12/1/1990
Well Name/No:DOE #1-W-19
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:13079
Facility Status:PRStatus Date12/1/1990
FacilityID:210900LocationID:311567
County:GARFIELD #045Location:NENE 19 6S94W 6
Field:RULISON - #75400Elevation:5731 ft.
Basin:PICEANCE BASIN
Planned Location:1273FNL  1103 FELLat/Long: 39.514109 / -107.925161Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.514604 / -107.925823Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 12/1/1990             Measured TD: 3300 ft.    Vertical TD: 0 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 12/1/1990
Wellbore Permit
Permit #:900383 Expiration Date:8/15/1990
Proposed Depth/Form:
Surface Mineral Owner Same:Not available
Mineral Owner:FEDERALSurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: WSTC , Formation: WASATCH , Order: 0 , Unit Acreage: 160, Drill Unit: NE4

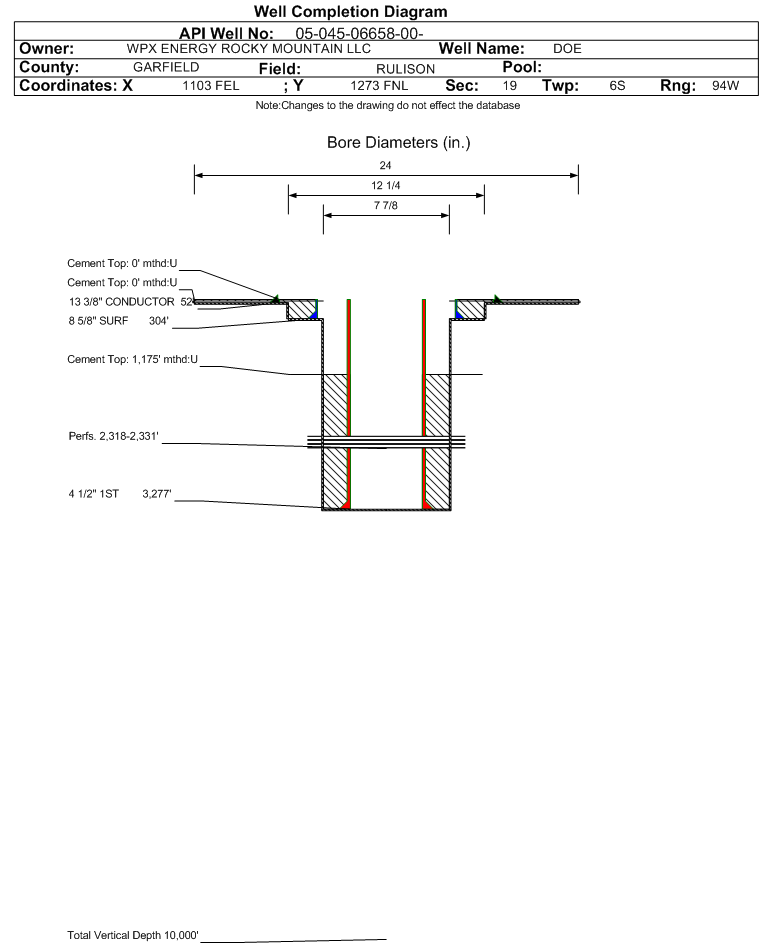

Wellbore Completed
Completion Date:11/1/1990
Measured TD:3300 ft.Measured PB depth:3070 ft.
True Vertical TD:0 ft.True Vertical PB depth:
Casing:String Type: CONDUCTOR, Hole Size: 24 in., Size: 13.375 in., Top: 0 ft., Depth: 52 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: , Top: 0 ft., Bottom: 24 ft., Determination Method: VIS
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 304 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 125, Top: , Bottom: 304 ft., Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 3277 ft., Weight: 10.5 , Citings Type: ACTUAL
Cement:Sacks: 550, Top: 1175 ft., Bottom: 3277 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WASATCH2294 ft.

Formation WSTC                     Formation Classification:  GW                     Status:  PR - 12/1/1990                 Interval Top: 2318 ft.    Interval Bottom: 2331 ft.

 Completed Information for Formation WASATCH
1st Production Date:N/AChoke Size:1,264.000 in.
Formation Name:WASATCHCommingled:
Production Method:
Open Hole Completion:
Formation Treatment
Treatment Date:11/1/1990
Treatment Summary:acidized w/1000 gal, frac'd w/873 bbl, 81000#20/40 sand, 12000# 16/40 resin coated sand
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:12/1/1990Test Method:FLOWING
Hours Tested:24Gas Type:WET
Gas Disposal:SOLD
Test TypeMeasure
MCF_GAS 96
Perforation Data:
Interval Top:2318 ft.# Of Holes:26
Interval Bottom:2331 ft.Hole Size:0.38 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
February 2025 - January 2026i
Total Oil Produced (Barrels)11
Total Gas Produced (MCF)6512
GOR592000
GOR DeterminationMCFE
Average BOE per Day3.103
Average MCFE per Day18.017

 Federal Financial Assurance  i Y

 Tribal Well  i No
