COGIS - WELL SCOUT CARD

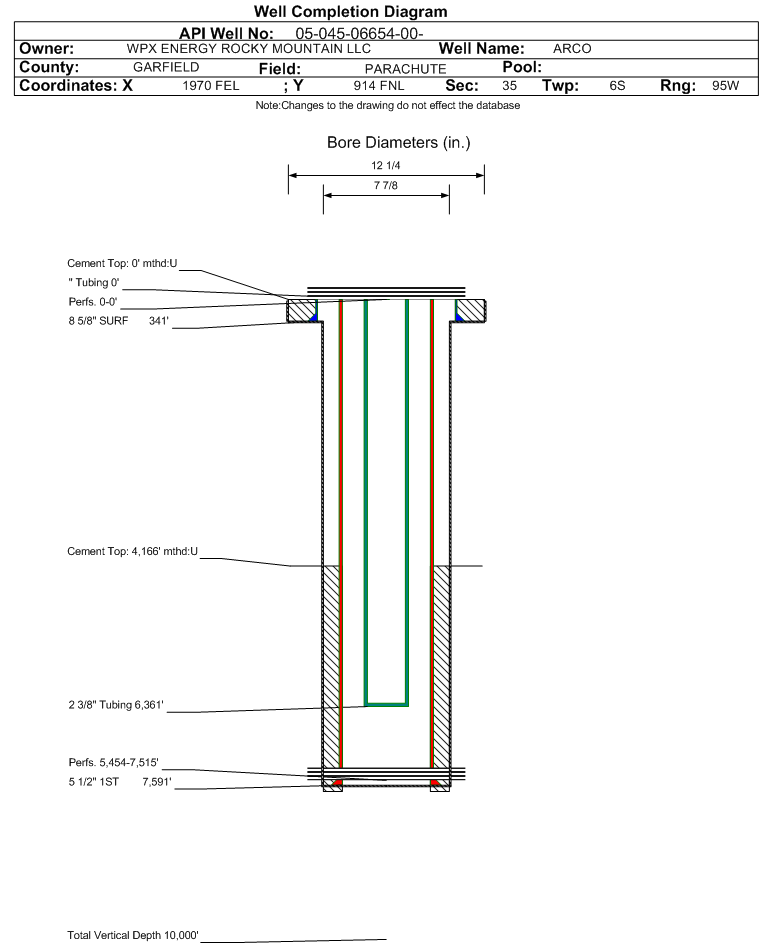

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITGIS Map GISOld GIS Map Old GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-06654		Well Classification: GW Status: PR - 12/1/2010
Well Name/No:ARCO #GV 56-35
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:12656
Facility Status:PRStatus Date12/1/2010
FacilityID:210896LocationID:335059
County:GARFIELD #045Location:NWNE 35 6S95W 6
Field:PARACHUTE - #67350Elevation:5151 ft.
Basin:PICEANCE BASIN
Planned Location:914FNL  1970 FELLat/Long: 39.486029 / -107.963242Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.486040 / -107.963261Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 12/1/2010             Measured TD: 7714 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 12/1/2010
Wellbore Permit
Permit #:900319 Expiration Date:8/9/1990
Proposed Depth/Form:
Surface Mineral Owner Same:Not available
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 0 , Unit Acreage: 320, Drill Unit: N2
Wellbore Completed
Completion Date:1/15/1990
Spud Date:4/20/1990Spud Date Is:ACTUAL
Measured TD:7714 ft.Measured PB depth:
True Vertical TD:True Vertical PB depth:
Log Types:CASED HOLE DUAL SPACED NEUTRON
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: , Depth: 341 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 200, Top: , Bottom: 341 ft., Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: , Depth: 7591 ft., Weight: 17 , Citings Type: ACTUAL
Cement:Sacks: 1150, Top: 4166 ft., Bottom: 7691 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WASATCH0 ft.
WASATCH G1762 ft.NN
FORT UNION2042 ft.NN
MESAVERDE4033 ft.NN
CAMEO COAL6908 ft.NN
ROLLINS7515 ft.NN

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 12/1/2010                 Interval Top: 5454 ft.    Interval Bottom: 7515 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:N/AChoke Size:0.219 in.
Formation Name:WILLIAMS FORK - CAMEOCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:1/15/1990
Treatment Summary:BRIDGE PLUG REMOVED AT 6300' AND ALL ZONES COMMINGLED
Tubing Size:2.375 in.Tubing Setting Depth:6361 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:1/30/2004Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:
Test TypeMeasure
CASING_PRESS 566
MCF_GAS 408
TUBING_PRESS 326
Perforation Data:
Interval Top:5454 ft.# Of Holes:90
Interval Bottom:7515 ft.Hole Size:

Formation MVRD                     Formation Classification:  GW                     Status:  CM - 11/16/1997                Interval Top: 4033 ft.    Interval Bottom: 7515 ft.

 Completed Information for Formation MESAVERDE
1st Production Date:11/16/1997Choke Size:0.000 in.
Formation Name:MESAVERDECommingled:
Production Method:
Open Hole Completion:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation MVRD.
No Perforation Data was found for formation MVRD.

Formation WMFK                     Formation Classification:  GW                     Status:  CM - 12/1/2010

 Completed Information for Formation WILLIAMS FORK
1st Production Date:N/AChoke Size:
Formation Name:WILLIAMS FORKCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:1/15/1990
Treatment Summary:SHUT-IN WMFK:7357-7515 1000 GALS ACID, 1355 BBLS GEL, 177000# SAND;6875-7259 1000 GALS ACID, 2355 BBLS GEL75000# SAND;6875-7515 1ST PROD. 8/21/90;6385-6762 1000 GALS ACID, 2660 BBLS GEL, 288000# SAND;5896-6193 1000 GALS 7.5% HCL, 502080# 20/40 (CONT)
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation WMFK.
Perforation Data:
Interval Top:# Of Holes:109
Interval Bottom:Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
February 2025 - January 2026i
Total Oil Produced (Barrels)11
Total Gas Produced (MCF)8490
GOR771818
GOR DeterminationMCFE
Average BOE per Day4.038
Average MCFE per Day23.439

 Federal Financial Assurance  i

 Tribal Well  i No
