COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-06626		Well Classification: GW Status: SI - 9/1/2025
Well Name/No:EXXON #GV 3-11
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:12813
Facility Status:SIStatus Date9/1/2025
FacilityID:210868LocationID:334847
County:GARFIELD #045Location:NESE 11 7S96W 6
Field:GRAND VALLEY - #31290Elevation:5236 ft.
Basin:PICEANCE BASIN
Planned Location:1580FSL  500 FELLat/Long: 39.449029 / -108.069745Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.449074 / -108.070083Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: SI - 9/1/2025             Measured TD: 6180 ft.    Vertical TD: 0 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        SI - 9/1/2025
Wellbore Permit
Permit #:891130 Expiration Date:4/11/1990
Proposed Depth/Form:
Surface Mineral Owner Same:Not available
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: WFCM , Formation: WILLIAMS FORK - CAMEO , Order: 0 , Unit Acreage: 160, Drill Unit: SE4
Wellbore Completed
Completion Date:3/10/1990
Measured TD:6180 ft.Measured PB depth:0 ft.
True Vertical TD:0 ft.True Vertical PB depth:

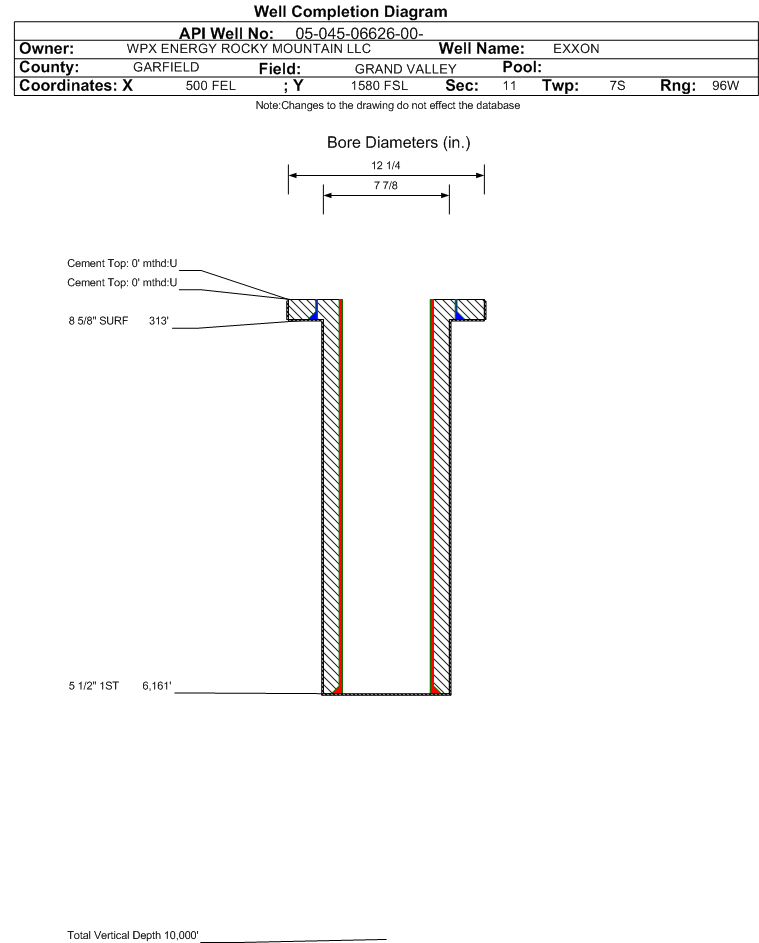

Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 313 ft., Weight: , Citings Type: HISTORICAL
Cement:Sacks: 200, Top: 0 ft., Bottom: , Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 6161 ft., Weight: , Citings Type: HISTORICAL
Cement:Sacks: 0, Top: 0 ft., Bottom: , Determination Method:
FormationInterval TopLog BottomCoredDSTs
FORT UNION1568 ft.
MESAVERDE2972 ft.
CAMEO COAL5560 ft.
ROLLINS6011 ft.

Formation WFCM                     Formation Classification:  GW                     Status:  SI - 9/1/2025

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:12/11/1997Choke Size:0.000 in.
Formation Name:WILLIAMS FORK - CAMEOCommingled:
Production Method:
Open Hole Completion:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation WFCM.
No Perforation Data was found for formation WFCM.
Primary Well Designation:
Low Producing      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingYProduction Period
11/2024 - 10/2025

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)37
GOR
GOR DeterminationMCFE
Average BOE per Day0.014
Average MCFE per Day0.101

 Federal Financial Assurance  i

 Tribal Well  i No
