COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITGIS Map GISOld GIS Map Old GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-06625		Well Classification: CBM Status: PR - 8/13/1997
Well Name/No:UNION #GV 12-3
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:12903
Facility Status:PRStatus Date8/13/1997
FacilityID:210867LocationID:323816
County:GARFIELD #045Location:SWNE 3 7S96W 6
Field:GRAND VALLEY - #31290Elevation:5472 ft.
Basin:PICEANCE BASIN
Planned Location:1693FNL  1745 FELLat/Long: 39.468609 / -108.091966Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.468792 / -108.091419Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: CBM             Status: PR - 8/13/1997             Measured TD: 6560 ft.    Vertical TD: 6560 ft.

 Wellbore Data for Original WellboreWellbore Classification: CBM        PR - 8/13/1997
Wellbore Permit
Permit #:891092 Expiration Date:4/2/1990
Proposed Depth/Form:
Surface Mineral Owner Same:Not available
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: WFCM , Formation: WILLIAMS FORK - CAMEO , Order: 0 , Unit Acreage: 160, Drill Unit: NE4
Wellbore Completed
Completion Date:1/30/1990
Measured TD:6560 ft.Measured PB depth:6485 ft.
True Vertical TD:6560 ft.True Vertical PB depth:

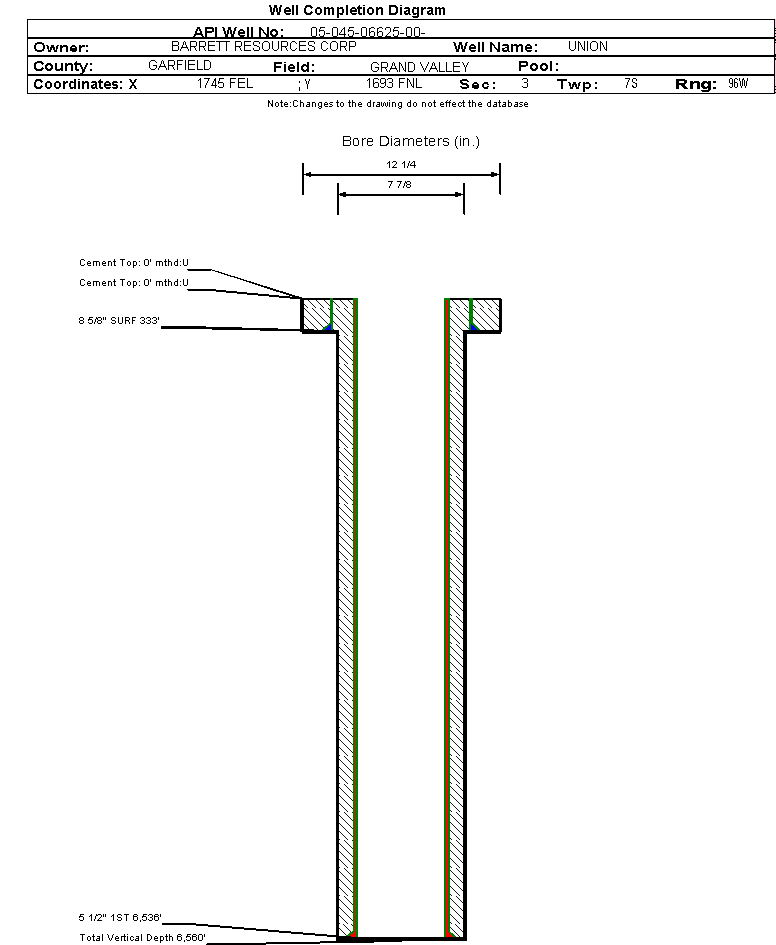

Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 333 ft., Weight: , Citings Type: HISTORICAL
Cement:Sacks: 200, Top: 0 ft., Bottom: , Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 6536 ft., Weight: , Citings Type: HISTORICAL
Cement:Sacks: 0, Top: 0 ft., Bottom: , Determination Method:
FormationInterval TopLog BottomCoredDSTs
FORT UNION2020 ft.
MESAVERDE3355 ft.
CAMEO COAL3855 ft.
ROLLINS6345 ft.

Formation CMEOC                   Formation Classification:  GW                   Status:  CM - 2/4/1990                  Interval Top: 3855 ft.

 Completed Information for Formation CAMEO COAL
1st Production Date:N/AChoke Size:0.000 in.
Formation Name:CAMEO COALCommingled:
Production Method:
Open Hole Completion:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation CMEOC.
No Perforation Data was found for formation CMEOC.

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 2/12/1990

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:1/30/1990Choke Size:
Formation Name:WILLIAMS FORK - CAMEOCommingled:
Production Method:
Open Hole Completion:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation WFCM.
No Perforation Data was found for formation WFCM.
Primary Well Designation:
Low Producing      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingYProduction Period
02/2025 - 01/2026

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
February 2025 - January 2026i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)1442
GOR
GOR DeterminationMCFE
Average BOE per Day0.685
Average MCFE per Day3.951

 Federal Financial Assurance  i

 Tribal Well  i No
