Wellbore #00 Wellbore Classification: CBM Status: PA - 4/23/2010 Measured TD: 6900 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: CBM PA - 4/23/2010 | | Wellbore Permit | | | Permit #: | 890811 | Expiration Date: | 1/25/1990 | | Proposed Depth/Form: | | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | Not available | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WFCM , Formation: WILLIAMS FORK - CAMEO , Order: 0 , Unit Acreage: 320, Drill Unit: |
| | |

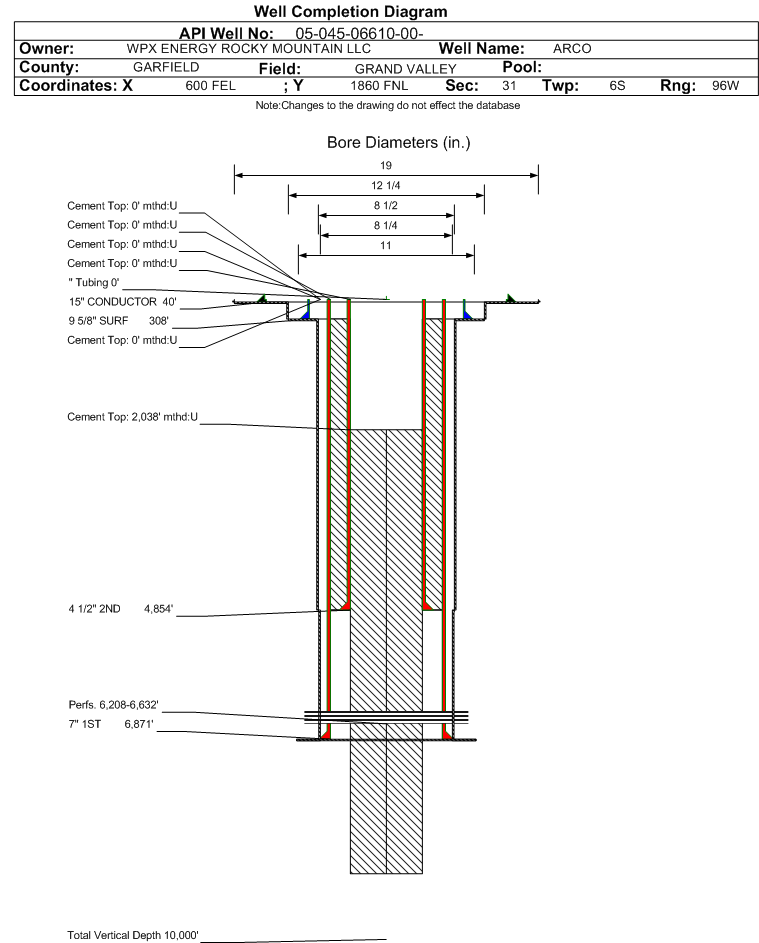

| Wellbore Completed | | Completion Date: | 11/27/1989 | | Spud Date: | 9/30/1989 | Spud Date Is: | ACTUAL | | Measured TD: | 6900 ft. | Measured PB depth: | 6812 ft. | | True Vertical TD: | | True Vertical PB depth: | | | Log Types: | DI CD | | Casing: | String Type: CONDUCTOR, Hole Size: , Size: , Top: 0 ft., Depth: 40 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 25, Top: , Bottom: , Determination Method: | | Casing: | String Type: CONDUCTOR, Hole Size: , Size: 15 in., Top: 0 ft., Depth: 40 ft., Weight: , Citings Type: HISTORICAL | | Cement: | Sacks: 0, Top: 0 ft., Bottom: , Determination Method: | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: , Depth: 308 ft., Weight: 36 , Citings Type: ACTUAL | | Cement: | Sacks: 200, Top: 0 ft., Bottom: 308 ft., Determination Method: | | Casing: | String Type: 1ST, Hole Size: 8.25 in., Size: , Top: , Depth: 6871 ft., Weight: 26 , Citings Type: ACTUAL | | Cement: | Sacks: 1041, Top: 2038 ft., Bottom: 8976 ft., Determination Method: | | Casing: | String Type: 1ST, Hole Size: , Size: 7 in., Top: 0 ft., Depth: 6871 ft., Weight: , Citings Type: HISTORICAL | | Cement: | Sacks: 0, Top: 0 ft., Bottom: , Determination Method: | | Casing: | String Type: 2ND, Hole Size: , Size: 4.5 in., Top: , Depth: 4854 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: , Top: 0 ft., Bottom: 4854 ft., Determination Method: | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH | 0 ft. | | | | | GREELEY SAND | 2122 ft. | | | | | FORT UNION | 2421 ft. | | | | | MESAVERDE | 3658 ft. | | | | | CAMEO COAL | 6154 ft. | | | | | ROLLINS | 6622 ft. | | | |
Formation WFCM Formation Classification: Status: AB - 7/2/2010 Interval Top: 6208 ft. Interval Bottom: 6632 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | 11/27/1989 | Choke Size: | | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | No | | Production Method: | | | Open Hole Completion: | |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation WFCM. |
| | Perforation Data: | | Interval Top: | 6208 ft. | # Of Holes: | 37 | | Interval Bottom: | 6632 ft. | Hole Size: | |
|
Formation CMEOC Formation Classification: GW Status: CM - 7/2/2010 Interval Top: 6154 ft. Interval Bottom: 6632 ft.| Completed Information for Formation CAMEO COAL | | 1st Production Date: | N/A | Choke Size: | 1,064.000 in. | | Formation Name: | CAMEO COAL | Commingled: | | | Production Method: | | | Open Hole Completion: | |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation CMEOC. |
| | No Perforation Data was found for formation CMEOC. |
|
|
|
|
|
|
|
| Reported Plugged | Y | 07/02/2010 |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 0 |
| Total Gas Produced (MCF) | 0 |
| GOR | |
| GOR Determination | |
| Average BOE per Day | 0.000 |
| Average MCFE per Day | 0.000 |
| Federal Financial Assurance | i | |
|
|
