 Surface Location
 API# 05-045-06606		Well Classification: GW Status: PR - 10/1/2010
Well Name/No:TEXACO #2-35 TRAIL RIDG
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:13251
Facility Status:PRStatus Date10/1/2010
FacilityID:210848LocationID:335750
County:GARFIELD #045Location:NWNE 35 5S97W 6
Field:TRAIL RIDGE - #83825Elevation:8702 ft.
Basin:PICEANCE BASIN
Planned Location:1050FNL  1337 FELLat/Long: 39.574386 / -108.240871Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.574353 / -108.240693Lat/Long Source: Field Measured

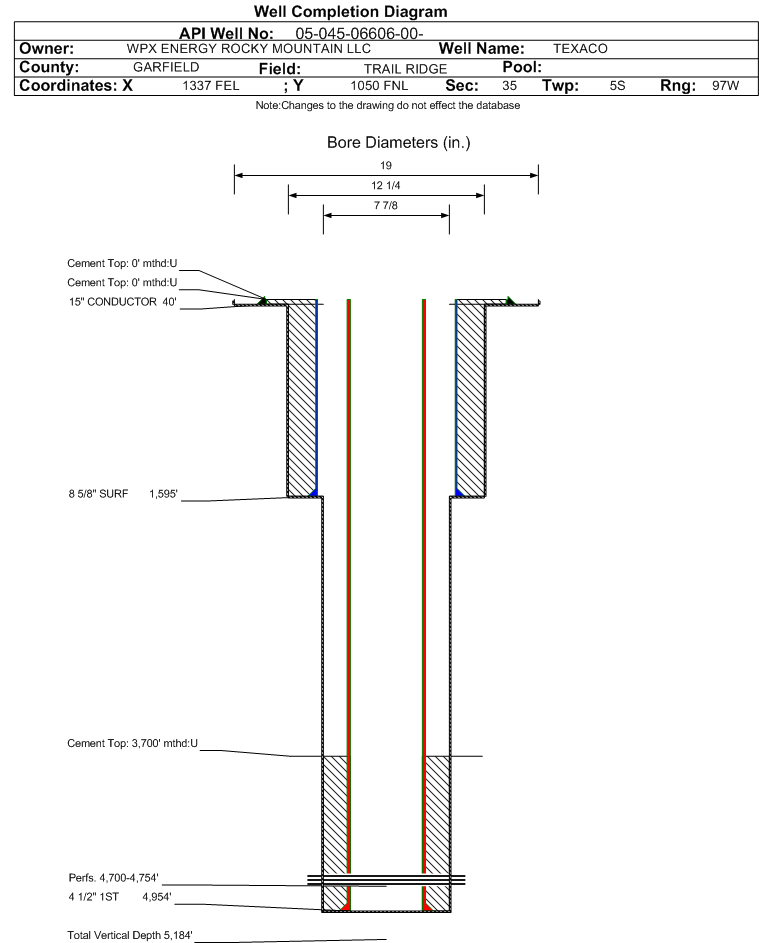

 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 10/1/2010             Measured TD: 5184 ft.    Vertical TD: 5184 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 10/1/2010
Wellbore Permit
Permit #:890752 Expiration Date:1/7/1990
Proposed Depth/Form:
Surface Mineral Owner Same:Not available
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: WSTC , Formation: WASATCH , Order: 0 , Unit Acreage: 160, Drill Unit: NE4
Wellbore Completed
Completion Date:10/20/1989
Measured TD:5184 ft.Measured PB depth:4882 ft.
True Vertical TD:5184 ft.True Vertical PB depth:
Casing:String Type: CONDUCTOR, Hole Size: , Size: 15 in., Top: 0 ft., Depth: 40 ft., Weight: , Citings Type: HISTORICAL
Cement:Sacks: 0, Top: 0 ft., Bottom: , Determination Method:
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 1595 ft., Weight: 24 , Citings Type: HISTORICAL
Cement:Sacks: 975, Top: 0 ft., Bottom: 1595 ft., Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 4954 ft., Weight: 10.5 , Citings Type: HISTORICAL
Cement:Sacks: 300, Top: 3700 ft., Bottom: 4954 ft., Determination Method:
FormationInterval TopLog BottomCoredDSTs
GREEN RIVER470 ft.
WASATCH G4695 ft.
FORT UNION4950 ft.

Formation WSTC                     Formation Classification:  GW                     Status:  PR - 10/1/2010                 Interval Top: 4700 ft.    Interval Bottom: 4754 ft.

 Completed Information for Formation WASATCH
1st Production Date:11/5/1990Choke Size:
Formation Name:WASATCHCommingled:
Production Method:FLOWING
Open Hole Completion:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:10/20/1989Test Method:FLOWING
Hours Tested:Gas Type:DRY
Gas Disposal:VENTED
Test TypeMeasure
CASING_PRESS 425
MCF_GAS 523
TUBING_PRESS 353
Perforation Data:
Interval Top:4700 ft.# Of Holes:16
Interval Bottom:4754 ft.Hole Size:0.38 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)20
Total Gas Produced (MCF)17797
GOR889850
GOR DeterminationMCFE
Average BOE per Day8.459
Average MCFE per Day49.081

 Federal Financial Assurance  i

 Tribal Well  i No
