 Surface Location
 API# 05-045-06569		Well Classification: GW Status: PR - 9/16/1989
Well Name/No:CHEVRON #MV-35-29
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:12885
Facility Status:PRStatus Date9/16/1989
FacilityID:210811LocationID:311561
County:GARFIELD #045Location:NWNE 29 6S96W 6
Field:GRAND VALLEY - #31290Elevation:5478 ft.
Basin:PICEANCE BASIN
Planned Location:1320FNL  1420 FELLat/Long: 39.498868 / -108.128237Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.498898 / -108.128939Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 9/16/1989             Measured TD: 6207 ft.    Vertical TD: 0 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 9/16/1989
Wellbore Permit
Permit #:880727 Expiration Date:11/12/1988
Proposed Depth/Form:
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 0 , Unit Acreage: 320, Drill Unit:
Wellbore Completed
Completion Date:12/12/1988
Measured TD:6207 ft.Measured PB depth:5997 ft.
True Vertical TD:0 ft.True Vertical PB depth:

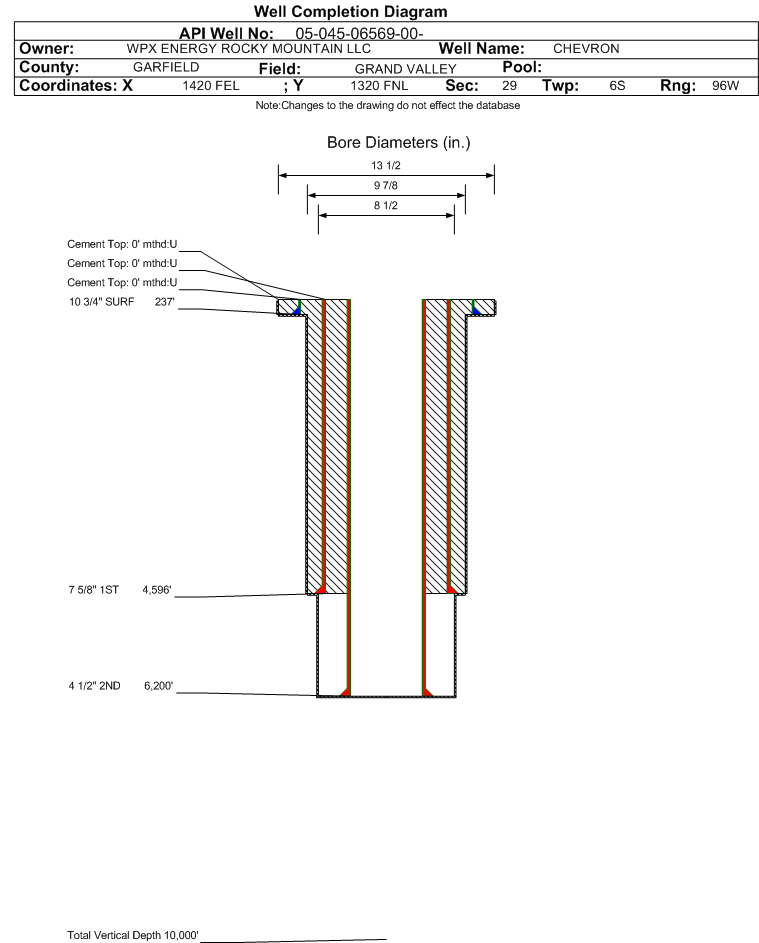

Casing:String Type: SURF, Hole Size: 13.5 in., Size: 10.75 in., Top: 0 ft., Depth: 237 ft., Weight: , Citings Type: HISTORICAL
Cement:Sacks: 200, Top: 0 ft., Bottom: , Determination Method:
Casing:String Type: 1ST, Hole Size: 9.875 in., Size: 7.625 in., Top: 0 ft., Depth: 4596 ft., Weight: , Citings Type: HISTORICAL
Cement:Sacks: 0, Top: 0 ft., Bottom: , Determination Method:
Casing:String Type: 2ND, Hole Size: , Size: 4.5 in., Top: 0 ft., Depth: 6200 ft., Weight: , Citings Type: HISTORICAL
Cement:Sacks: 0, Top: 0 ft., Bottom: , Determination Method:
FormationInterval TopLog BottomCoredDSTs
WASATCH0 ft.
FORT UNION2164 ft.
MESAVERDE3580 ft.
CAMEO6122 ft.

Formation WMFK                     Formation Classification:  GW                     Status:  PR - 9/16/1989

 Completed Information for Formation WILLIAMS FORK
1st Production Date:12/12/1988Choke Size:0.000 in.
Formation Name:WILLIAMS FORKCommingled:
Production Method:
Open Hole Completion:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation WMFK.
No Perforation Data was found for formation WMFK.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)31
Total Gas Produced (MCF)14384
GOR464000
GOR DeterminationMCFE
Average BOE per Day6.884
Average MCFE per Day39.912

 Federal Financial Assurance  i

 Tribal Well  i No
