COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITGIS Map GISOld GIS Map Old GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-06564		Well Classification: GW Status: PR - 2/9/1988
Well Name/No:FEDERAL #MV 10 23
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:12881
Facility Status:PRStatus Date2/9/1988
FacilityID:210806LocationID:323787
County:GARFIELD #045Location:NWSW 23 6S96W 6
Field:GRAND VALLEY - #31290Elevation:5959 ft.
Basin:PICEANCE BASIN
Planned Location:1860FSL  800 FWLLat/Long: 39.506388 / -108.082666Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.506351 / -108.083210Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 2/9/1988             Measured TD: 7605 ft.    Vertical TD: 0 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 2/9/1988
Wellbore Permit
Permit #:880550 Expiration Date:10/13/1988
Proposed Depth/Form:
Surface Mineral Owner Same:No
Mineral Owner:FEDERALSurface Owner:Not available
Unit: Unit Number:C-34553
Formation And Spacing:Code: WFCM , Formation: WILLIAMS FORK - CAMEO , Order: 0 , Unit Acreage: 320, Drill Unit:
Wellbore Completed
Completion Date:10/31/1988
Measured TD:7605 ft.Measured PB depth:7415 ft.
True Vertical TD:0 ft.True Vertical PB depth:

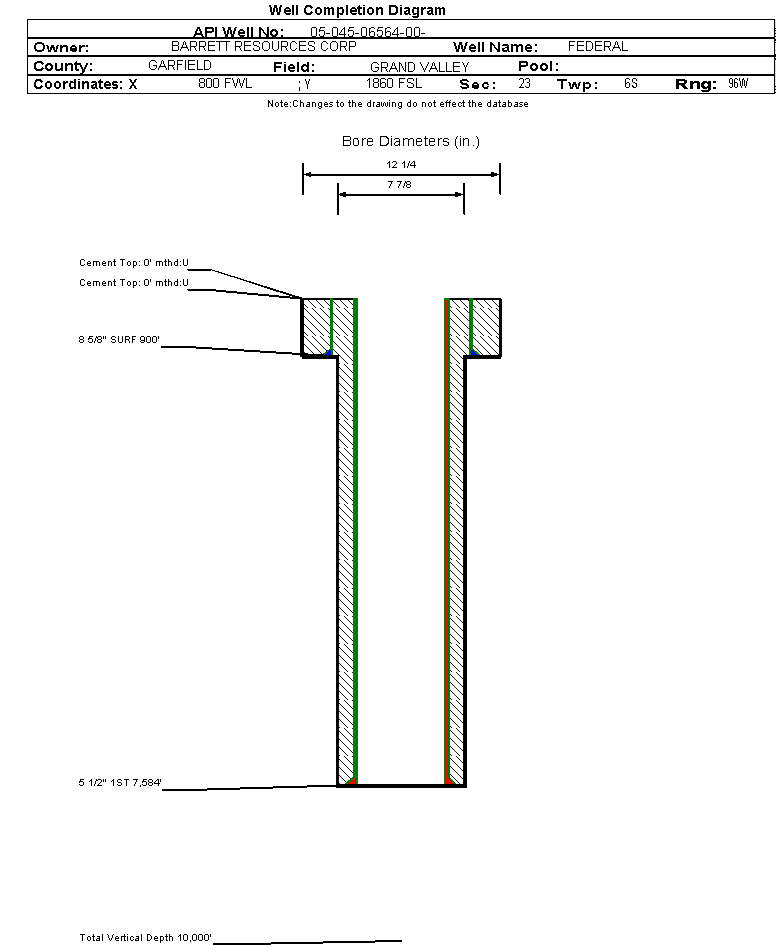

Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 900 ft., Weight: , Citings Type: HISTORICAL
Cement:Sacks: 525, Top: 0 ft., Bottom: , Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 7584 ft., Weight: , Citings Type: HISTORICAL
Cement:Sacks: 0, Top: 0 ft., Bottom: , Determination Method:
FormationInterval TopLog BottomCoredDSTs
FORT UNION2754 ft.
MESAVERDE4358 ft.
CAMEO7017 ft.
ROLLINS7478 ft.

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 2/9/1988

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:10/31/1998Choke Size:
Formation Name:WILLIAMS FORK - CAMEOCommingled:
Production Method:
Open Hole Completion:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation WFCM.
No Perforation Data was found for formation WFCM.

Formation WMFK                     Formation Classification:  GW                     Status:  CM - 2/9/1988

 Completed Information for Formation WILLIAMS FORK
1st Production Date:N/AChoke Size:0.000 in.
Formation Name:WILLIAMS FORKCommingled:
Production Method:
Open Hole Completion:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation WMFK.
No Perforation Data was found for formation WMFK.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
February 2025 - January 2026i
Total Oil Produced (Barrels)40
Total Gas Produced (MCF)17087
GOR427175
GOR DeterminationMCFE
Average BOE per Day8.180
Average MCFE per Day47.440

 Federal Financial Assurance  i Y

 Tribal Well  i No
