COGIS - WELL SCOUT CARD

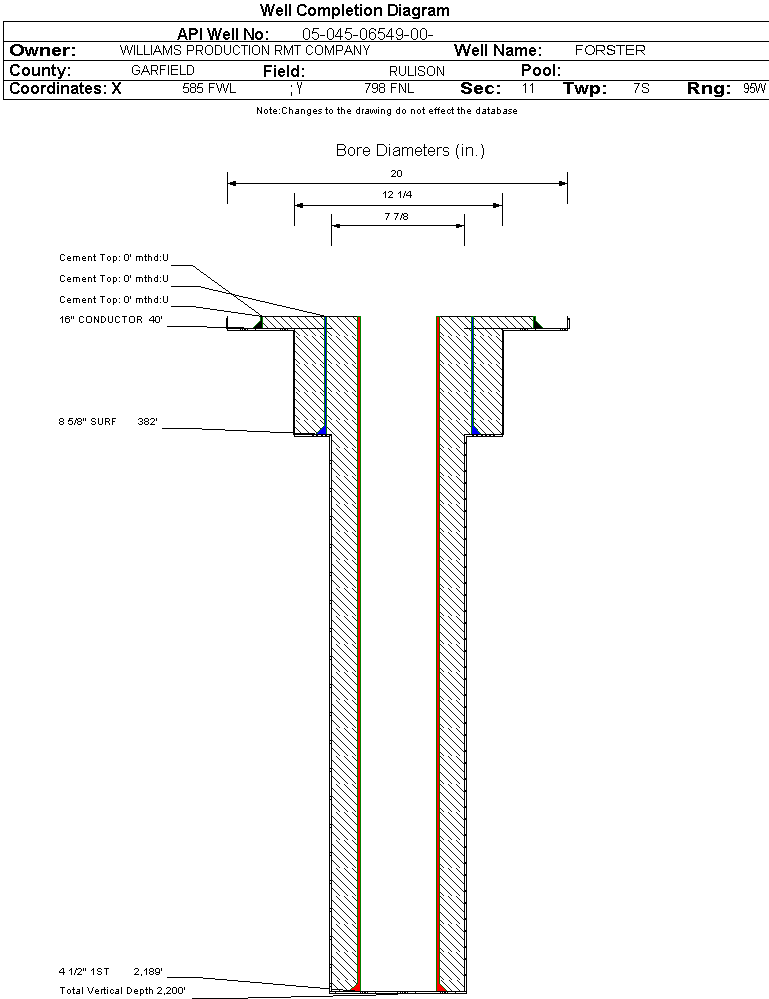

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-06549		Well Classification: GW Status: PR - 6/28/1989
Well Name/No:FORSTER #W-46-11
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:12721
Facility Status:PRStatus Date6/28/1989
FacilityID:210791LocationID:323781
County:GARFIELD #045Location:NWNW 11 7S95W 6
Field:PARACHUTE - #67350Elevation:6013 ft.
Basin:PICEANCE BASIN
Planned Location:798FNL  585 FWLLat/Long: 39.457339 / -107.972622Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.457154 / -107.972762Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 6/28/1989             Measured TD: 2200 ft.    Vertical TD: 0 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 6/28/1989
Wellbore Permit
Permit #:890337 Expiration Date:9/12/1989
Proposed Depth/Form:
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: WSTC , Formation: WASATCH , Order: 0 , Unit Acreage: 160, Drill Unit: NW4
Wellbore Completed
Completion Date:6/28/1989
Measured TD:2200 ft.Measured PB depth:2092 ft.
True Vertical TD:0 ft.True Vertical PB depth:
Casing:String Type: CONDUCTOR, Hole Size: , Size: 16 in., Top: 0 ft., Depth: 40 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 6, Top: 0 ft., Bottom: 40 ft., Determination Method: VISU
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 382 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 250, Top: 0 ft., Bottom: 382 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 2189 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 250, Top: 450 ft., Bottom: 2189 ft., Determination Method: CALC
FormationInterval TopLog BottomCoredDSTs
WASATCH1947 ft.

Formation WSTC                     Formation Classification:  GW                     Status:  PR - 6/28/1989                 Interval Top: 1952 ft.    Interval Bottom: 1974 ft.

 Completed Information for Formation WASATCH
1st Production Date:N/AChoke Size:964.000 in.
Formation Name:WASATCHCommingled:
Production Method:
Open Hole Completion:
Tubing Size:2.375 in.Tubing Setting Depth:1902 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation WSTC.
Perforation Data:
Interval Top:1952 ft.# Of Holes:
Interval Bottom:1974 ft.Hole Size:
Primary Well Designation:
Low Producing      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingYProduction Period
11/2024 - 10/2025

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)995
GOR
GOR DeterminationMCFE
Average BOE per Day0.474
Average MCFE per Day2.724

 Federal Financial Assurance  i

 Tribal Well  i No
