COGIS - WELL SCOUT CARD

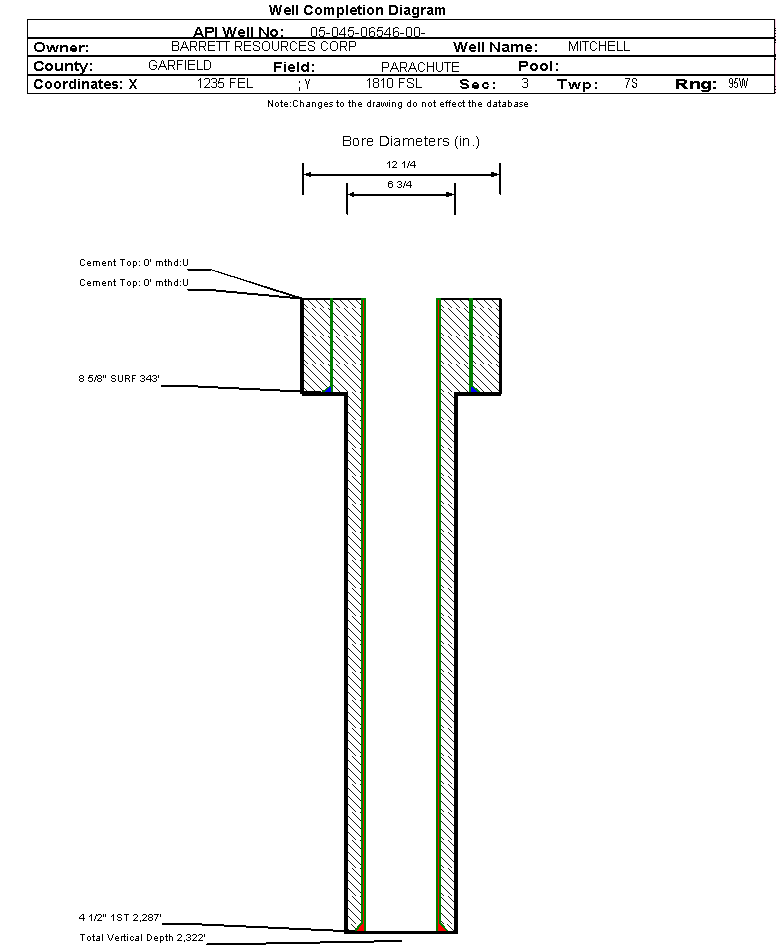

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-06546		Well Classification: GW Status: PR - 9/16/1987
Well Name/No:MITCHELL #W-27-3
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:12759
Facility Status:PRStatus Date9/16/1987
FacilityID:210788LocationID:311559
County:GARFIELD #045Location:NESE 3 7S95W 6
Field:PARACHUTE - #67350Elevation:5820 ft.
Basin:PICEANCE BASIN
Planned Location:1810FSL  1235 FELLat/Long: 39.464509 / -107.979322Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.464340 / -107.979301Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 9/16/1987             Measured TD: 2322 ft.    Vertical TD: 2322 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 9/16/1987
Wellbore Permit
Permit #:870546 Expiration Date:12/8/1987
Proposed Depth/Form:
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: WSTC , Formation: WASATCH , Order: 0 , Unit Acreage: 160, Drill Unit: SE4
Wellbore Completed
Completion Date:9/16/1987
Measured TD:2322 ft.Measured PB depth:2159 ft.
True Vertical TD:2322 ft.True Vertical PB depth:
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 343 ft., Weight: 23 , Citings Type: ACTUAL
Cement:Sacks: 200, Top: 0 ft., Bottom: 343 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 6.75 in., Size: 4.5 in., Top: 0 ft., Depth: 2287 ft., Weight: 10.5 , Citings Type: ACTUAL
Cement:Sacks: 300, Top: 31 ft., Bottom: 2287 ft., Determination Method: CALC
FormationInterval TopLog BottomCoredDSTs
WASATCH0 ft.

Formation WSTC                     Formation Classification:  GW                     Status:  PR - 9/16/1987                 Interval Top: 1810 ft.    Interval Bottom: 1920 ft.

 Completed Information for Formation WASATCH
1st Production Date:12/1/1987Choke Size:0.000 in.
Formation Name:WASATCHCommingled:
Production Method:
Open Hole Completion:
Tubing Size:2.375 in.Tubing Setting Depth:1802 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation WSTC.
Perforation Data:
Interval Top:1810 ft.# Of Holes:
Interval Bottom:1920 ft.Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)15
Total Gas Produced (MCF)11544
GOR769600
GOR DeterminationMCFE
Average BOE per Day5.503
Average MCFE per Day31.916

 Federal Financial Assurance  i

 Tribal Well  i No
