COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-06523		Well Classification: GW Status: PR - 8/1/2008
Well Name/No:FEDERAL #MV-11-11
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:12884
Facility Status:PRStatus Date8/1/2008
FacilityID:210765LocationID:334809
County:GARFIELD #045Location:NENW 11 7S96W 6
Field:GRAND VALLEY - #31290Elevation:5548 ft.
Basin:PICEANCE BASIN
Planned Location:730FNL  1660 FWLLat/Long: 39.457059 / -108.081145Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.457318 / -108.081176Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 8/1/2008             Measured TD: 7175 ft.    Vertical TD: 0 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 8/1/2008
Wellbore Permit
Permit #:860452 Expiration Date:11/19/1986
Proposed Depth/Form:
Surface Mineral Owner Same:Not available
Mineral Owner:FEDERALSurface Owner:Not available
Unit: Unit Number:C-24603
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 0 , Unit Acreage: 160, Drill Unit: NW4
Wellbore Completed
Completion Date:12/22/1986
Measured TD:7175 ft.Measured PB depth:7099 ft.
True Vertical TD:0 ft.True Vertical PB depth:

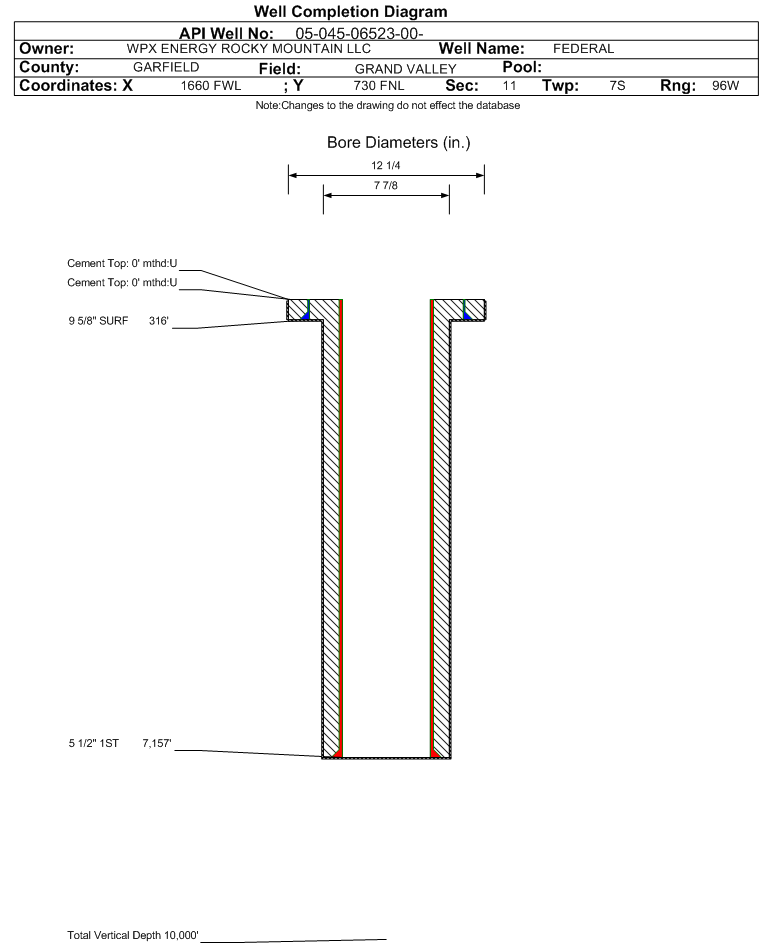

Casing:String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 316 ft., Weight: , Citings Type: HISTORICAL
Cement:Sacks: 140, Top: 0 ft., Bottom: , Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 7157 ft., Weight: , Citings Type: HISTORICAL
Cement:Sacks: 0, Top: 0 ft., Bottom: , Determination Method:
FormationInterval TopLog BottomCoredDSTs
FORT UNION1923 ft.
LANCE3288 ft.
CAMEO5860 ft.
ROLLINS6347 ft.
COZZETTE6610 ft.
CORCORAN6832 ft.
SEGO7034 ft.

Formation CMEO                     Formation Classification:  GW                     Status:  SI - 11/1/2025                 Interval Top: 5860 ft.

 Completed Information for Formation CAMEO
1st Production Date:N/AChoke Size:0.000 in.
Formation Name:CAMEOCommingled:
Production Method:
Open Hole Completion:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation CMEO.
No Perforation Data was found for formation CMEO.

Formation WMFK                     Formation Classification:  GW                     Status:  PR - 8/1/2008

 Completed Information for Formation WILLIAMS FORK
1st Production Date:12/22/1986Choke Size:
Formation Name:WILLIAMS FORKCommingled:
Production Method:
Open Hole Completion:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation WMFK.
No Perforation Data was found for formation WMFK.
Primary Well Designation:
Low Producing      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingYProduction Period
10/2024 - 09/2025

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)405
GOR
GOR DeterminationMCFE
Average BOE per Day0.194
Average MCFE per Day1.109

 Federal Financial Assurance  i Y

 Tribal Well  i No
