COGIS - WELL SCOUT CARD

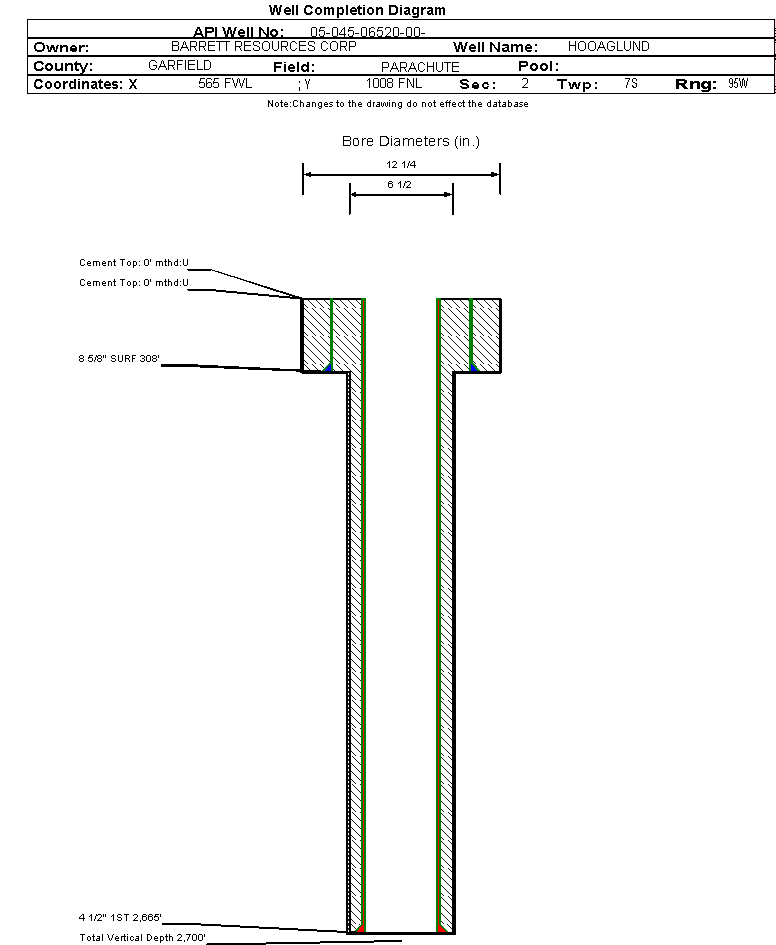

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITGIS Map GISOld GIS Map Old GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-06520		Well Classification: GW Status: PR - 11/1/1984
Well Name/No:HOOAGLUND #W-25-2
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:12731
Facility Status:PRStatus Date11/1/1984
FacilityID:210762LocationID:334724
County:GARFIELD #045Location:NWNW 2 7S95W 6
Field:PARACHUTE - #67350Elevation:5223 ft.
Basin:PICEANCE BASIN
Planned Location:1008FNL  565 FWLLat/Long: 39.471109 / -107.973232Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.470896 / -107.972993Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 11/1/1984             Measured TD: 2700 ft.    Vertical TD: 2700 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 11/1/1984
Wellbore Permit
Permit #:860449 Expiration Date:11/19/1986
Proposed Depth/Form:
Surface Mineral Owner Same:Not available
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: WSTC , Formation: WASATCH , Order: 440-1 , Unit Acreage: 160, Drill Unit: NW4
Wellbore Completed
Completion Date:10/24/1986
Measured TD:2700 ft.Measured PB depth:2420 ft.
True Vertical TD:2700 ft.True Vertical PB depth:
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 308 ft., Weight: , Citings Type: HISTORICAL
Cement:Sacks: 0, Top: 0 ft., Bottom: , Determination Method:
Casing:String Type: 1ST, Hole Size: 6.5 in., Size: 4.5 in., Top: 0 ft., Depth: 2665 ft., Weight: , Citings Type: HISTORICAL
Cement:Sacks: 0, Top: 0 ft., Bottom: , Determination Method:
FormationInterval TopLog BottomCoredDSTs
WASATCH0 ft.

Formation WSTC                     Formation Classification:  GW                     Status:  PR - 11/1/1984

 Completed Information for Formation WASATCH
1st Production Date:N/AChoke Size:2,164.000 in.
Formation Name:WASATCHCommingled:
Production Method:
Open Hole Completion:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation WSTC.
No Perforation Data was found for formation WSTC.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
February 2025 - January 2026i
Total Oil Produced (Barrels)6
Total Gas Produced (MCF)4241
GOR706833
GOR DeterminationMCFE
Average BOE per Day2.029
Average MCFE per Day11.777

 Federal Financial Assurance  i

 Tribal Well  i No
