Wellbore #00 Wellbore Classification: GW Status: PR - 1/16/2026 Measured TD: 15531 ft. Vertical TD: 0 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 1/16/2026 | | Wellbore Permit | | | Permit #: | 850847 | Expiration Date: | 10/26/1985 | | Proposed Depth/Form: | | | Surface Mineral Owner Same: | Not available | | Mineral Owner: | FEE | Surface Owner: | Not available | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WFCM , Formation: WILLIAMS FORK - CAMEO , Order: 0 , Unit Acreage: 640, Drill Unit: ALL |
| | |

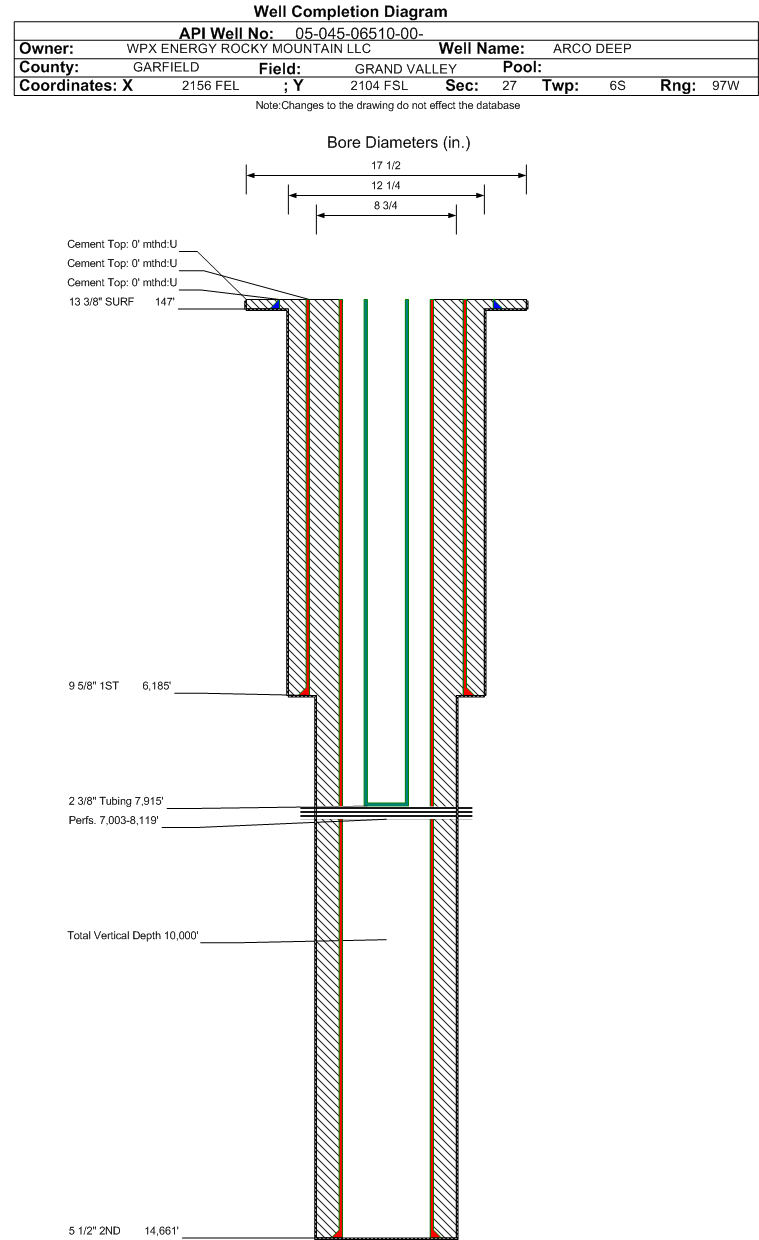

| Wellbore Completed | | Completion Date: | 8/15/1987 | | Measured TD: | 15531 ft. | Measured PB depth: | 14409 ft. | | True Vertical TD: | 0 ft. | True Vertical PB depth: | | | Top PZ Location: | Sec: Twp: | Footage: 0 FL 0 FL | | Casing: | String Type: SURF, Hole Size: 17.5 in., Size: 13.375 in., Top: 1 ft., Depth: 147 ft., Weight: 48 , Citings Type: ACTUAL | | Cement: | Sacks: 185, Top: 1 ft., Bottom: 147 ft., Determination Method: CALC | | Casing: | String Type: 1ST, Hole Size: 12.25 in., Size: 9.625 in., Top: 1 ft., Depth: 6185 ft., Weight: 40 , Citings Type: ACTUAL | | Cement: | Sacks: 1200, Top: 1 ft., Bottom: 6185 ft., Determination Method: CALC | | Casing: | String Type: 2ND, Hole Size: 8.75 in., Size: 5.5 in., Top: 1 ft., Depth: 14661 ft., Weight: 17 , Citings Type: ACTUAL | | Cement: | Sacks: 3135, Top: 1 ft., Bottom: 14661 ft., Determination Method: CALC | | Formation | Interval Top | Log Bottom | Cored | DSTs | | CRETACEOUS | 5434 ft. | | | | | CAMEO | 8147 ft. | | | | | ROLLINS | 8460 ft. | | | | | COZZETTE | 8680 ft. | | | | | CORCORAN | 8963 ft. | | | | | MANCOS | 9216 ft. | | | | | NIOBRARA | 11900 ft. | | | | | FRONTIER | 13060 ft. | | | | | MOWRY | 13095 ft. | | | | | MORRISON | 13598 ft. | | | | | ENTRADA | 14102 ft. | | | | | CHINLE | 14335 ft. | | | |
Formation WFCM Formation Classification: GW Status: PR - 1/16/2026 Interval Top: 7003 ft. Interval Bottom: 8119 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | 9/28/1987 | Choke Size: | | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 8/15/1987 | | Treatment Summary: | 2500 GALS 7 1/2% HCL, 354900# 20/40, 407 TONS CO2, 6898 BBLS SLICK WATER |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | N/A | Test Method: | | | Hours Tested: | | Gas Type: | | | Gas Disposal: | | |
| Test Type | Measure |
|---|
| BBLS_H2O | 0 | | BBLS_OIL | 0 | | CALC_BBLS_H2O | 0 | | CALC_BBLS_OIL | 0 | | CALC_MCF_GAS | 1278 | | CASING_PRESS | 1263 | | MCF_GAS | 1278 | | TUBING_PRESS | 1166 |
| | Perforation Data: | | Interval Top: | 7003 ft. | # Of Holes: | 76 | | Interval Bottom: | 8119 ft. | Hole Size: | 0.42 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | Y | Noticed Date
07/15/2025 |
| Defined Inactive | N | |
| Low Producing | Y | Production Period
11/2024 - 10/2025 |
| Total Oil Produced (Barrels) | 0 |
| Total Gas Produced (MCF) | 0 |
| GOR | |
| GOR Determination | MCFE |
| Average BOE per Day | 0.000 |
| Average MCFE per Day | 0.000 |
| Federal Financial Assurance | i | |
|
|
