COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-06503		Well Classification: GW Status: PR - 5/31/1985
Well Name/No:GRAND VALLEY #W-3
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:12739
Facility Status:PRStatus Date5/31/1985
FacilityID:210745LocationID:334804
County:GARFIELD #045Location:SESE 32 6S95W 6
Field:PARACHUTE - #67350Elevation:5148 ft.
Basin:PICEANCE BASIN
Planned Location:1320FSL  1320 FELLat/Long: 39.477429 / -108.017074Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.477534 / -108.017164Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 5/31/1985             Measured TD: 2000 ft.    Vertical TD: 0 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 5/31/1985
Wellbore Permit
Permit #:850475 Expiration Date:8/15/1985
Proposed Depth/Form:
Surface Mineral Owner Same:Not available
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: WSTC , Formation: WASATCH , Order: 0 , Unit Acreage: 40, Drill Unit: SESE

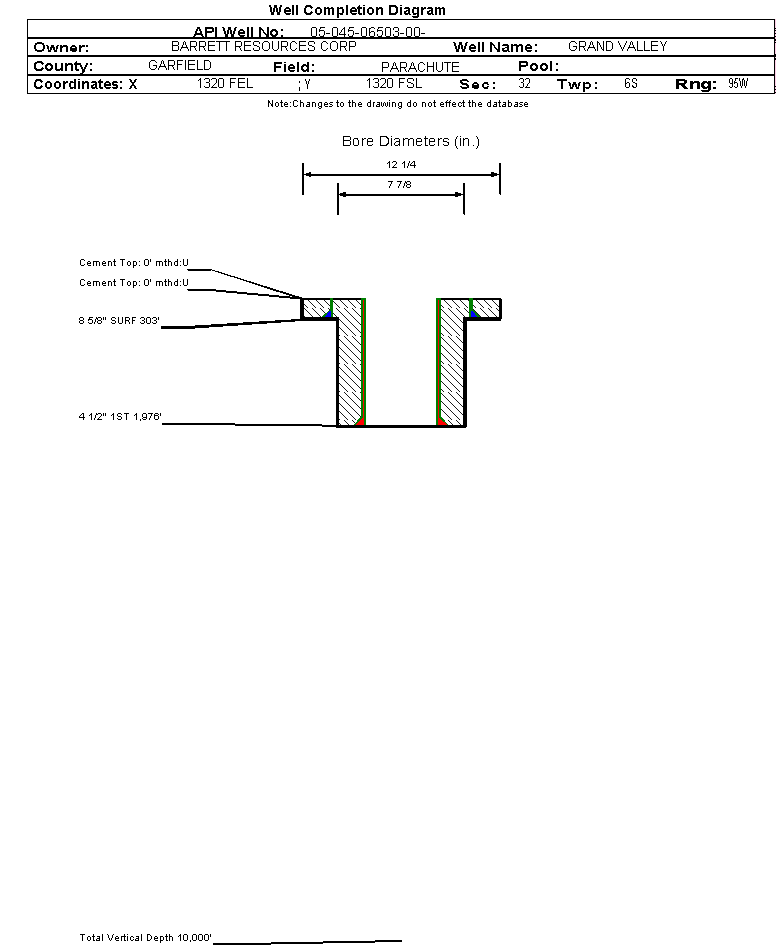

Wellbore Completed
Completion Date:5/31/1985
Measured TD:2000 ft.Measured PB depth:1573 ft.
True Vertical TD:0 ft.True Vertical PB depth:
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 303 ft., Weight: 23 , Citings Type: ACTUAL
Cement:Sacks: 180, Top: 0 ft., Bottom: 303 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 1976 ft., Weight: 9.5 , Citings Type: ACTUAL
Cement:Sacks: 410, Top: 768 ft., Bottom: 1976 ft., Determination Method: CALC
FormationInterval TopLog BottomCoredDSTs
WASATCH0 ft.

Formation WSTC                     Formation Classification:  GW                     Status:  PR - 5/31/1985                 Interval Top: 1250 ft.    Interval Bottom: 1488 ft.

 Completed Information for Formation WASATCH
1st Production Date:N/AChoke Size:0.000 in.
Formation Name:WASATCHCommingled:
Production Method:
Open Hole Completion:
Tubing Size:2.375 in.Tubing Setting Depth:1487 ft.
Tubing Packer Depth:1227 ft.Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation WSTC.
Perforation Data:
Interval Top:1250 ft.# Of Holes:
Interval Bottom:1488 ft.Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)11
Total Gas Produced (MCF)7674
GOR697636
GOR DeterminationMCFE
Average BOE per Day3.658
Average MCFE per Day21.222

 Federal Financial Assurance  i

 Tribal Well  i No
