COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-06486		Well Classification: GW Status: PR - 4/2/1985
Well Name/No:DOE #1-M-9
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:12869
Facility Status:PRStatus Date4/2/1985
FacilityID:210728LocationID:335637
County:GARFIELD #045Location:SWSW 9 6S94W 6
Field:RULISON - #75400Elevation:5931 ft.
Basin:PICEANCE BASIN
Planned Location:478FSL  684 FWLLat/Long: 39.533669 / -107.900431Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.533771 / -107.900509Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 4/2/1985             Measured TD: 7895 ft.    Vertical TD: 7895 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 4/2/1985
Wellbore Permit
Permit #:841225 Expiration Date:12/31/1985
Proposed Depth/Form:
Surface Mineral Owner Same:Not available
Mineral Owner:FEDERALSurface Owner:Not available
Unit: Unit Number:NAVAL OS R 3
Formation And Spacing:Code: MVRD , Formation: MESAVERDE , Order: 0 , Unit Acreage: 320, Drill Unit: W2
Wellbore Completed
Completion Date:5/2/1985
Measured TD:7895 ft.Measured PB depth:7840 ft.
True Vertical TD:7895 ft.True Vertical PB depth:

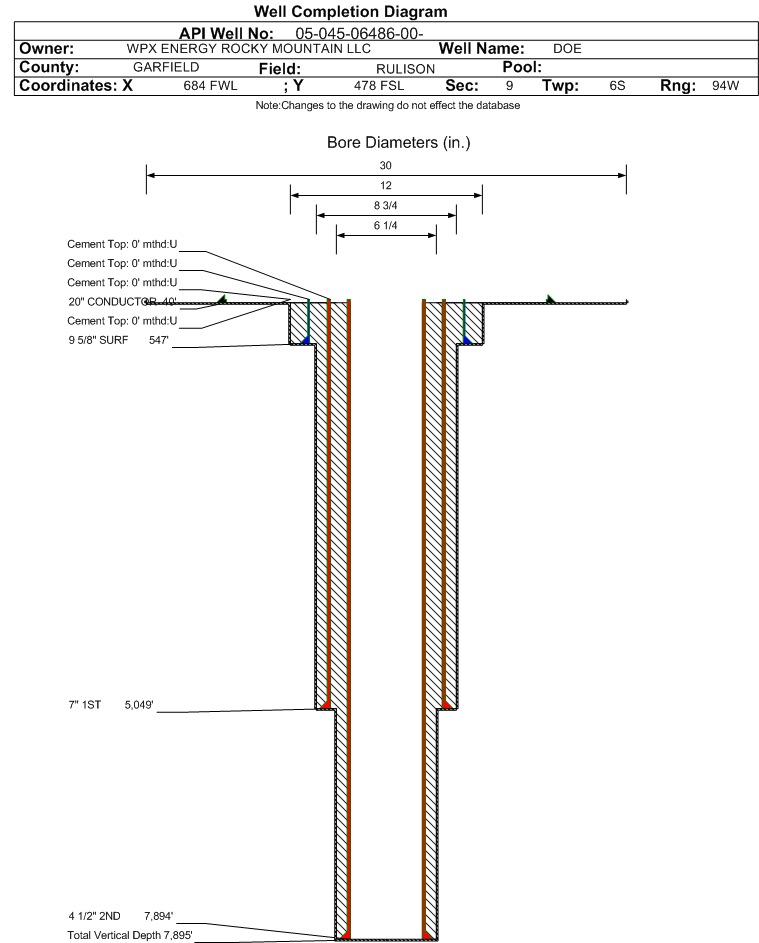

Casing:String Type: CONDUCTOR, Hole Size: 30 in., Size: 20 in., Top: 0 ft., Depth: 40 ft., Weight: , Citings Type: HISTORICAL
Cement:Sacks: 0, Top: 0 ft., Bottom: , Determination Method:
Casing:String Type: SURF, Hole Size: 12 in., Size: 9.625 in., Top: 0 ft., Depth: 547 ft., Weight: , Citings Type: HISTORICAL
Cement:Sacks: 0, Top: 0 ft., Bottom: , Determination Method:
Casing:String Type: 1ST, Hole Size: 8.75 in., Size: 7 in., Top: 0 ft., Depth: 5049 ft., Weight: , Citings Type: HISTORICAL
Cement:Sacks: 0, Top: 0 ft., Bottom: , Determination Method:
Casing:String Type: 2ND, Hole Size: 6.25 in., Size: 4.5 in., Top: 0 ft., Depth: 7894 ft., Weight: , Citings Type: HISTORICAL
Cement:Sacks: 0, Top: 0 ft., Bottom: , Determination Method:
FormationInterval TopLog BottomCoredDSTs
WASATCH0 ft.
MESAVERDE4870 ft.

Formation WMFK                     Formation Classification:  GW                     Status:  PR - 4/2/1985

 Completed Information for Formation WILLIAMS FORK
1st Production Date:10/2/1989Choke Size:3,624.000 in.
Formation Name:WILLIAMS FORKCommingled:
Production Method:
Open Hole Completion:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation WMFK.
No Perforation Data was found for formation WMFK.
Primary Well Designation:
Low Producing      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingYProduction Period
11/2024 - 10/2025

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)3331
GOR
GOR DeterminationMCFE
Average BOE per Day1.570
Average MCFE per Day9.129

 Federal Financial Assurance  i Y

 Tribal Well  i No
