COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-06299		Well Classification: GW Status: PR - 11/12/1995
Well Name/No:CLOUGH #21
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:12913
Facility Status:PRStatus Date11/12/1995
FacilityID:210543LocationID:335138
County:GARFIELD #045Location:SESW 20 6S94W 6
Field:RULISON - #75400Elevation:5364 ft.
Basin:PICEANCE BASIN
Planned Location:755FSL  1660 FWLLat/Long: 39.505369 / -107.915251Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.505455 / -107.915245Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 11/12/1995             Measured TD: 8642 ft.    Vertical TD: 8642 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 11/12/1995
Wellbore Permit
Permit #:801756 Expiration Date:4/4/1981
Proposed Depth/Form:
Surface Mineral Owner Same:Not available
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: CMEOC , Formation: CAMEO COAL , Order: 0 , Unit Acreage: 0, Drill Unit:
Formation And Spacing:Code: MVRD , Formation: MESAVERDE , Order: 0 , Unit Acreage: 0, Drill Unit:
Formation And Spacing:Code: WFCM , Formation: WILLIAMS FORK - CAMEO , Order: , Unit Acreage: 320, Drill Unit: W2
Wellbore Completed
Completion Date:1/11/1984
Measured TD:8642 ft.Measured PB depth:7961 ft.
True Vertical TD:8642 ft.True Vertical PB depth:

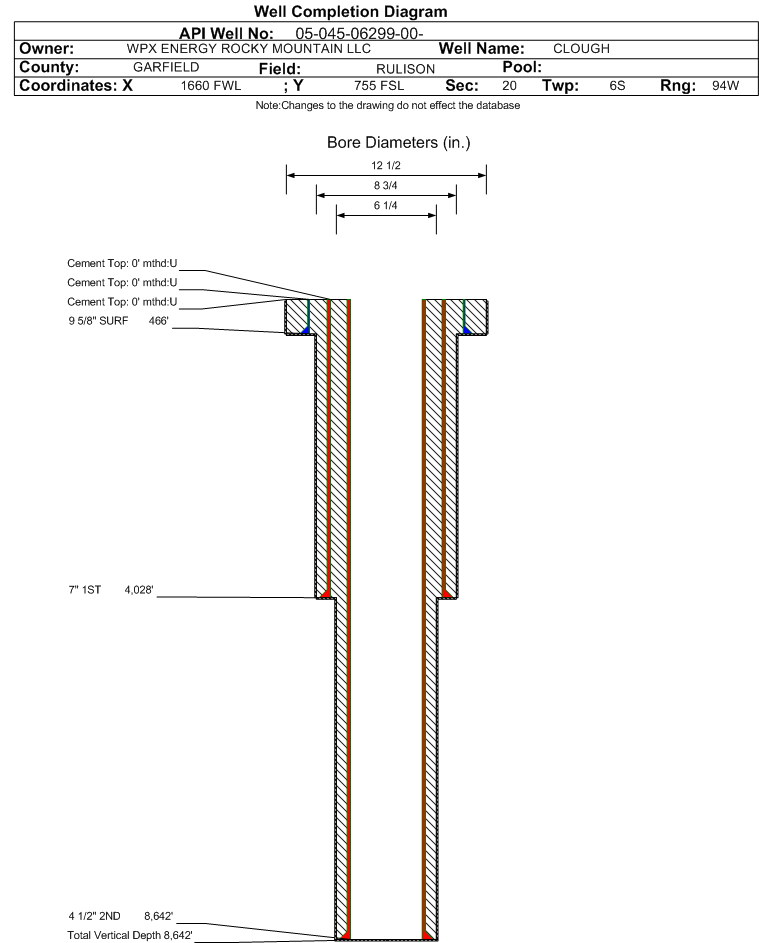

Casing:String Type: SURF, Hole Size: 12.5 in., Size: 9.625 in., Top: 0 ft., Depth: 466 ft., Weight: , Citings Type: HISTORICAL
Cement:Sacks: 0, Top: 0 ft., Bottom: , Determination Method:
Casing:String Type: 1ST, Hole Size: 8.75 in., Size: 7 in., Top: 0 ft., Depth: 4028 ft., Weight: , Citings Type: HISTORICAL
Cement:Sacks: 0, Top: 0 ft., Bottom: , Determination Method:
Casing:String Type: 2ND, Hole Size: 6.25 in., Size: 4.5 in., Top: 0 ft., Depth: 8642 ft., Weight: , Citings Type: HISTORICAL
Cement:Sacks: 0, Top: 0 ft., Bottom: , Determination Method:
FormationInterval TopLog BottomCoredDSTs
WASATCH0 ft.
MESAVERDE4210 ft.
CAMEO COAL6860 ft.
ROLLINS7800 ft.
COZZETTE8115 ft.
CORCORAN8400 ft.
MANCOS8610 ft.

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 11/12/1995

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:N/AChoke Size:
Formation Name:WILLIAMS FORK - CAMEOCommingled:
Production Method:
Open Hole Completion:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation WFCM.
No Perforation Data was found for formation WFCM.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)11
Total Gas Produced (MCF)7064
GOR642181
GOR DeterminationMCFE
Average BOE per Day3.367
Average MCFE per Day19.532

 Federal Financial Assurance  i

 Tribal Well  i No
