 Surface Location
 API# 05-045-06277		Well Classification: GW Status: PR - 1/8/2002
Well Name/No:CLOUGH #136
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:12947
Facility Status:PRStatus Date1/8/2002
FacilityID:210521LocationID:322444
County:GARFIELD #045Location:SWNW 20 6S94W 6
Field:RULISON - #75400Elevation:5524 ft.
Basin:PICEANCE BASIN
Planned Location:1502FNL  650 FWLLat/Long: 39.513529 / -107.918941Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.513524 / -107.919120Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 1/8/2002             Measured TD: 2855 ft.    Vertical TD: 2855 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 1/8/2002
Wellbore Permit
Permit #:800891 Expiration Date:11/21/1980
Proposed Depth/Form:
Surface Mineral Owner Same:Not available
Mineral Owner:FEDERALSurface Owner:Not available
Unit: Unit Number:C-27868&FEE
Formation And Spacing:Code: WSTC , Formation: WASATCH , Order: 0 , Unit Acreage: 160, Drill Unit: SW4

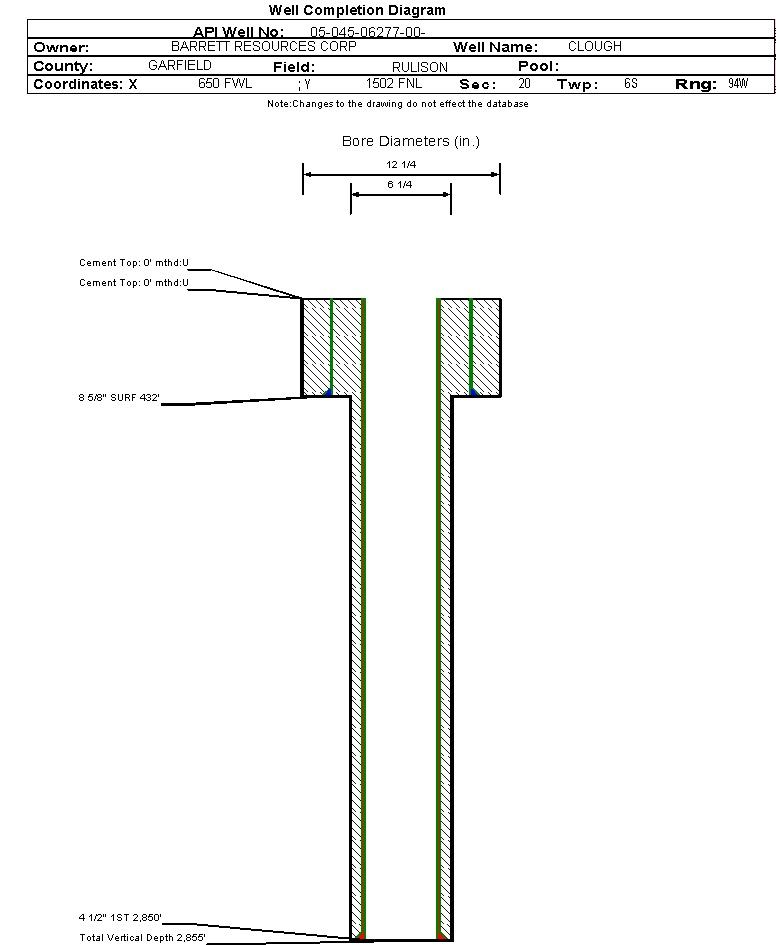

Wellbore Completed
Completion Date:3/14/1981
Measured TD:2855 ft.Measured PB depth:2760 ft.
True Vertical TD:2855 ft.True Vertical PB depth:
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 432 ft., Weight: , Citings Type: HISTORICAL
Cement:Sacks: 0, Top: 0 ft., Bottom: , Determination Method:
Casing:String Type: 1ST, Hole Size: 6.25 in., Size: 4.5 in., Top: 0 ft., Depth: 2850 ft., Weight: , Citings Type: HISTORICAL
Cement:Sacks: 0, Top: 0 ft., Bottom: , Determination Method:
FormationInterval TopLog BottomCoredDSTs
WASATCH0 ft.

Formation WSTC                     Formation Classification:  GW                     Status:  PR - 1/8/2002

 Completed Information for Formation WASATCH
1st Production Date:N/AChoke Size:10,104.000 in.
Formation Name:WASATCHCommingled:
Production Method:
Open Hole Completion:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation WSTC.
No Perforation Data was found for formation WSTC.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
February 2025 - January 2026i
Total Oil Produced (Barrels)17
Total Gas Produced (MCF)13463
GOR791941
GOR DeterminationMCFE
Average BOE per Day6.407
Average MCFE per Day37.154

 Federal Financial Assurance  i

 Tribal Well  i No
